Champion Cooling radiators are tig welded with aircraft grade aluminum. Every radiator comes with a limited lifetime warranty so you can buy with confidence! Product Specifications: Core (H x W): 13.75" x 23.25" - Overall (H x W): 19.75" x 27.25" - Hose Locations (In x Out): Driver x Pass - Hose Fittings (In x Out): 1.25" x 1.25" - TOC: M14-1.5Please click on the "Read more" link below to view a complete item description with product videos and additional items to upgrade your cooling system.

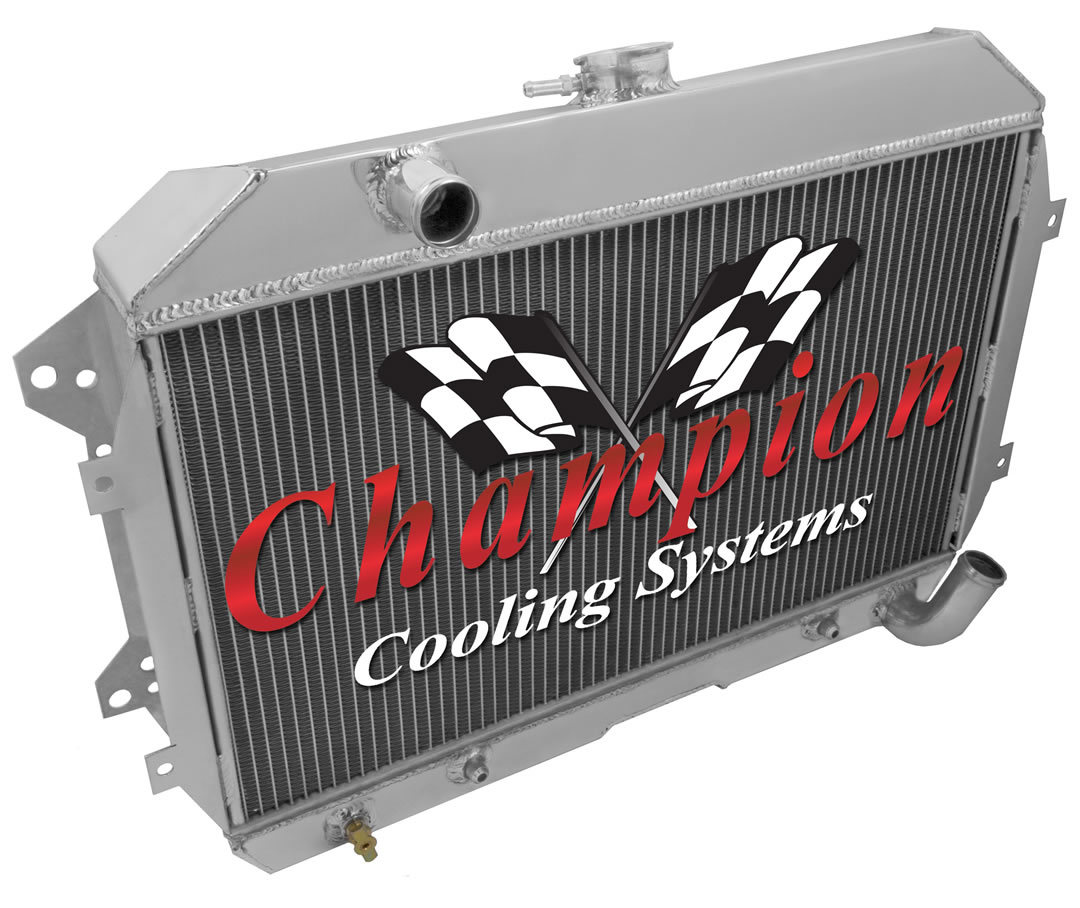

PART Us Part Information Related Items Need A Different Set Up? (Click A Photo Below) Genuine Champion Cooling Systems Part #MC110This radiator is designed for either a 2.4 L6, 2.6L L6, 2.8L L6, or a 3.1L L6 engine. Features
- Higher density core: cooling rows are spaced 3/8" apart: giving you 25% more rows within the core than other aluminum radiators sold on and 35% more rows than OEM copper.
- Aluminum dissipates heat more efficiently than copper or brass.
- 14-16 cooling fins per inch (42 per square inch) giving you approximately 1500 more cooling fins than other aluminum radiators and approximately 3000 more than OEM copper radiators.
- Lighter weight.
- Outperforms other 2, 3 and 4 row copper radiators.
- High performance appearance.
- You get "BIG BLOCK COOLING" and "PEACE OF MIND" when you drive your car with a Champion Cooling Systems radiator.
- You could easily spend $400 - $1,000 more for a radiator of similar quality.
Specifications
- Down Flow Or Cross Flow Type: Down Flow
- Mounting Type: Bracket
- Tank Material: Aluminum
- Core Material: Aluminum
- Overall Height: 19 3/4
- Overall Width: 27 1/4
- Core Height: 13 3/4
- Core Width: 23 1/4
- Inlet Location: Driver
- Inlet Diameter: 1 1/4
- Outlet Location: Passenger
- Outlet Diameter: 1 1/4
- Core Row Quantity: 4 Row
- Transmission Oil Cooler Fitting Type: M14-1.5
- Internal Transmission Oil Cooler: Yes
- Filler Neck Attached: Yes
- Core Thickness: 2 3/4
- Core Tube Width: 0.56
- Tank Width: 3.125
This package includes a 4 Row All Aluminum Radiator. Shipping Shipping
