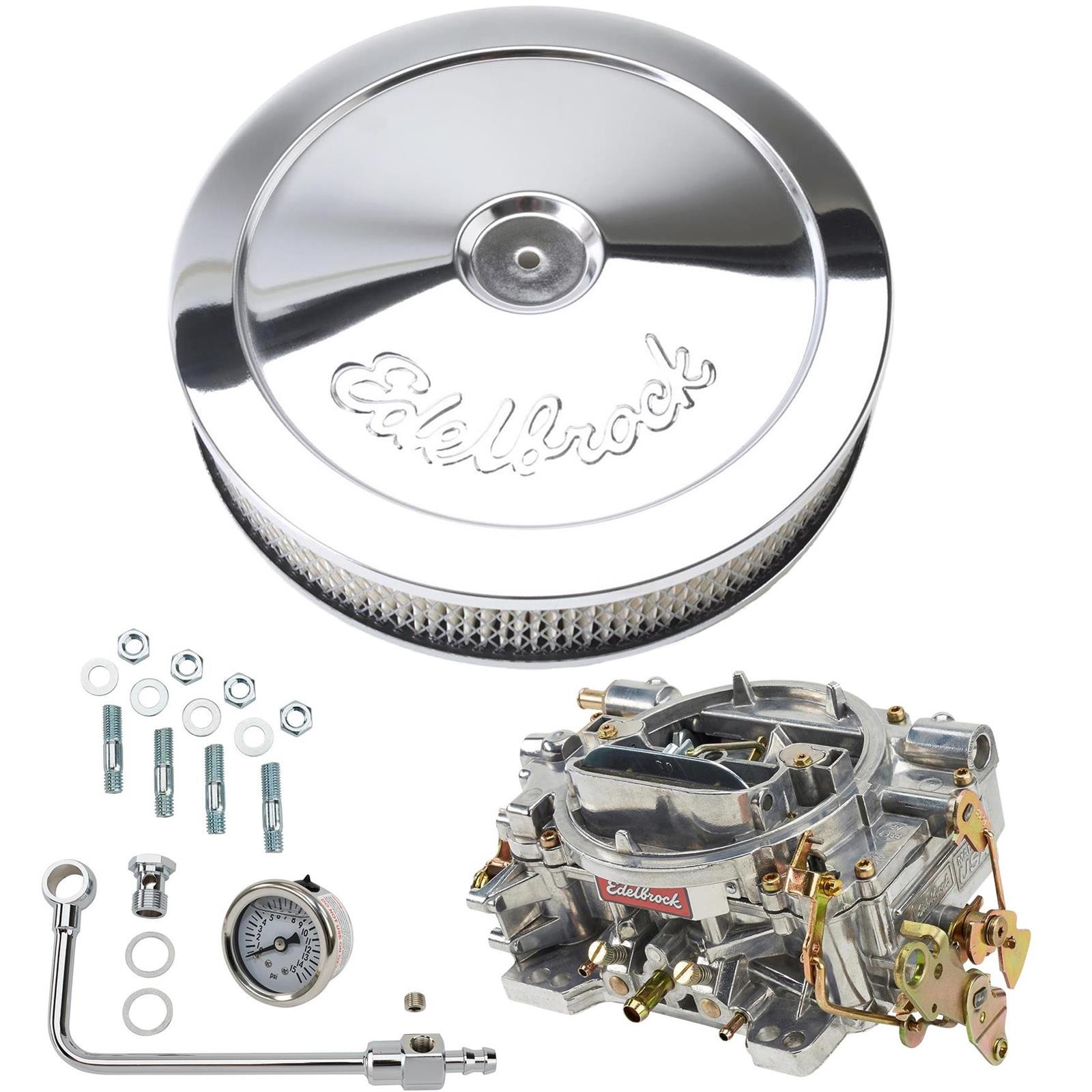

Delivers smooth throttle response throughout the power band, Lightweight all-aluminum body is compatible with gasohol and blended fuels, Edelbrock Pro-Flo air cleaner is stamped from high quality 18-gauge steel with a triple-chrome plated finish, Fuel line is designed to provide a clean and custom plumbing solution, All Edelbrock products are proudly made in the U.S.A Edelbrock 1405 Performer 600 CFM Manual Carb/Air/Fuel Kit,Pro-Flo Sku # 9109370 Condition New Brand Edelbrock Sold Kit Details
Top off your engine with these carburetor air/fuel installation kits. Complete installation kit includes mounting hardware.
Kit Includes:
- (1) Edelbrock 1405 Performer 600 CFM 4 Barrel Carburetor, Manual Choke
- (1) Edelbrock 1208 Pro-Flo Chrome Air Cleaner Assembly, Round, 2 Inch
- (1) Edelbrock 8126 Performer Carb Fuel Line Kit, 3/8 Inch Hose Barb Inlet
- (1) 1-1/2\" Liquid-Filled Fuel Pressure Gauge, 0-15 PSI
- (1) Carburetor Stud Kit, 1-3/8 Inch
Edelbrock 1405 Performer 600 CFM 4 Barrel Carburetor, Manual Choke
- Edelbrock Performer Series carbs have proven themselves to be easy to tune with great drivability
- Whether you need to replace an aging stock four barrel carb or are looking for a performance carb to top off your hot rod, the Edelbrock Performer Series four barrel carbs are the best choice for performance and value
- All Edelbrock products are proudly made in the U.S.A
- Designed and calibrated for optimum street performance in small-block and some big-block engines
- Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, Performer RPM, RPM Air-Gap, Torker II and other brands of similar design
- This 4 barrel carb includes manual choke and detailed instructions
- Ford/Mopar throttle adapter arms sold separately
Features:
- Manual choke
- Bolt-on-and-run performance right out of the box
- Smooth throttle response throughout the power band
- Uses metering rods to transition between circuits - rods can be changed in seconds without carburetor removal or draining fuel
- Float levels are factory set; adjustments are rarely needed
- Change jets, adjust floats & replace needles/seats without draining fuel or removing carb
- Two-piece design means no gaskets below the fuel level for leak-free operation
- Lightweight all-aluminum body is compatible with gasohol and blended fuels
- Includes both timed and full vacuum ports for ignition advance
Edelbrock 1208 Pro-Flo Chrome Air Cleaner Assembly, Round, 2 Inch
- Stamped From 18-Gauge Steel
- Triple-Chrome Plated
- High-Quality Finish
- Great Looks
- Works With All 5.125 in. Carbs
- Great for applications with low hood clearance
- Base Knock-Outs For Use w/Crankcase Ventilation
- Adapter For Crankcase Ventilation #
- Manufactured of chrome plated steel
- Include a 5/8\" -20 threaded banjo bolt with gaskets
1-1/2\" Liquid-Filled Fuel Pressure Gauge, 0-15 PSI
- Appropriate fuel pressure is important for adjusting your fuel system to achieve optimal performance, which means an accurate pressure gauge is equally important
- Built for superior precision
- Liquid filled and available for carbureted and fuel injected applications
- 0-15 PSI
- 1-1/2\" diameter
Carburetor Stud Kit, 1-3/8 Inch
- Easy installation/removal of carb plates
- Includes zinc plated steel studs, nuts and washers
- 1-3/8\" tall
Specs Notes 3-1/4" from bottom of carb base to the base of the carb neck. Mounting bolt hole pattern is 5-1/8" by 5-5/8" Sold in Quantity Kit Carburetor Barrels 4-Barrel Carburetor Flange Type 4-Barrel Square Bore Fuel Type Gasoline Choke Type Manual CFM Range 600-699 CFM CFM 600 CFM Finish Satin Material Type Aluminum Color Silver Secondary Type Air Valve Fuel Inlet Type Single Inlet Fitting 5/8-20 THREAD Gasket(s) Included Yes Bolt Hole Pattern 5.160" x 5.625" Carburetor Height 4.35" Housing Style Solid Top Filter Height 2" Net Height from Carb Flange 3.5" Overall Diameter 10" Raised Distance 0.75" Base Style Raised Reviews Excellent buy Rated by Czar on May 18, 2021
Summary: Arrived undamaged, fit perfectly, looks great!
