Easy to tune with great driveability, 600 CFM - Electric Choke, Air cleaner is performance designed for increased airflow, Fuel line is designed to provide a clean and custom plumbing solution, All Edelbrock products are proudly made in the U.S.A Edelbrock 1406 Performer 600 CFM Elect. Carb/Air/Fuel Kit, Chrome Sku # 9109322 Condition New Brand Edelbrock Sold Kit Details
Top off your engine with these carburetor air/fuel installation kits. Complete installation kit includes mounting hardware.

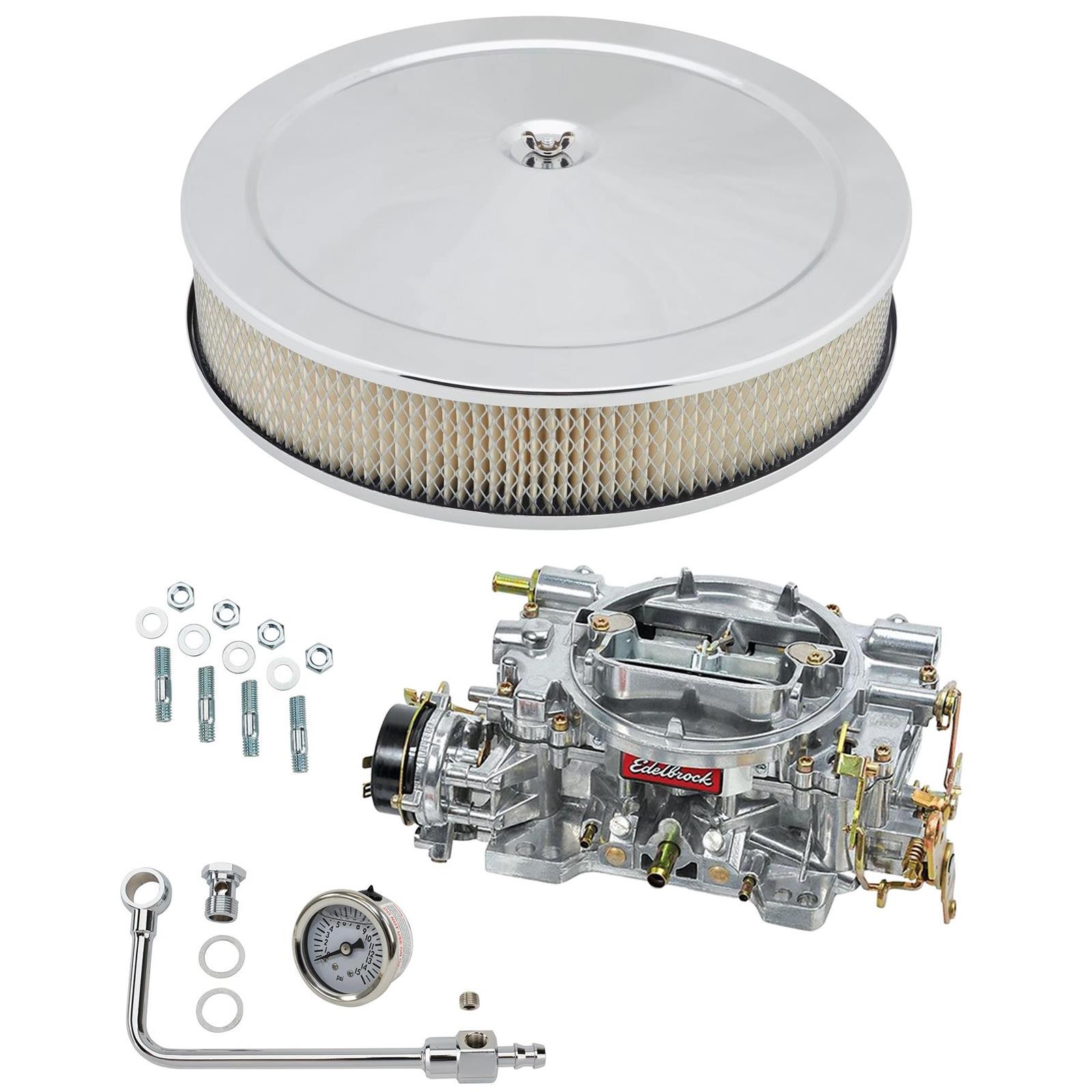

Kit Includes:
- (1) Edelbrock 1406 Performer 600 CFM 4 Barrel Carburetor, Electric Choke
- (1) Chrome Deep Dish Performance Air Cleaner, 14 x 3 Inch, 4 Barrel Carb.
- (1) Edelbrock 8126 Performer Carb Fuel Line Kit, 3/8 Inch Hose Barb Inlet
- (1) 1-1/2\" Liquid-Filled Fuel Pressure Gauge, 0-15 PSI
- (1) Carburetor Stud Kit, 1-3/8 Inch
Edelbrock 1406 Performer 600 CFM 4 Barrel Carburetor, Electric Choke
- Edelbrock Performer Series carbs have proven themselves to be easy to tune with great drivability
- Whether you need to replace an aging stock four barrel carb or are looking for a performance carb to top off your hot rod, the Edelbrock Performer Series four barrel carbs are the best choice for performance and value
- All Edelbrock products are proudly made in the U.S.A
- CALIBRATED FOR FUEL ECONOMY
- Designed for small-block and small displacement big-block engines, this four barrel carb is recommended only for stock to Performer level applications
- Not recommended for use on RPM or Torker II intake manifolds
- Match with an Edelbrock Performer or Performer EPS manifold and other brands of similar design
- Calibrated 2% leaner than #1405
- Includes both timed and full vacuum ports for ignition advance
- Includes an electric choke and detailed instructions
- Ford/Mopar throttle adapter arms sold separately
Features:
- Electric choke
- Bolt-on-and-run performance right out of the box
- Smooth throttle response throughout the power band
- Lightweight all-aluminum body is compatible with gasohol and blended fuels
- Includes both timed and full vacuum ports for ignition advance
- Uses metering rods to transition between circuits - rods can be changed in seconds without carburetor removal or draining fuel
- Float levels are factory set; adjustments are rarely needed
- Change jets, adjust floats & replace needles/seats without draining fuel or removing carb
- Two-piece design means no gaskets below the fuel level for leak-free operation
Chrome Deep Dish Performance Air Cleaner, 14 x 3 Inch, 4 Barrel Carb.
- Chrome plated steel
- 14\" diameter and 3\" tall filter element
- Fits 4 barrel carbs with 5-1/8\" neck
- Features a 1-1/4\" drop
- This air cleaner has a \"drop\" base, meaning that the bottom of the air cleaner sits 1-1/4\" below the top flange of the carb.
- The top of the air cleaner sits 2-5/8\" above the top flange of the carb.
- Includes stud and wing nut
- Triple process plating for brightest finish and long life
- Non-restricting, flame proof filter
- Performance designed for increased breathing
- Designed for universal applications
- Fits: cars, trucks, minis, 4x4s, street rods, and RVs
- Comes with mounting hardware and PVC smog fitting adapter
Edelbrock 8126 Performer Carb Fuel Line Kit, 3/8 Inch Hose Barb Inlet
- 3/8” fuel line kits have a clean look and are easy to install
- Fuel inlets for Edelbrock carburetors provide a clean and custom plumbing solution
- Drop-down design routes the fuel line on the right-hand (passenger side) of the carburetor below the linkage and choke housing
- Includes a barbed end for a push-on 3/8\" rubber fuel line
- Manufactured of chrome plated steel
- Include a 5/8\" -20 threaded banjo bolt with gaskets
1-1/2\" Liquid-Filled Fuel Pressure Gauge, 0-15 PSI
- Appropriate fuel pressure is important for adjusting your fuel system to achieve optimal performance, which means an accurate pressure gauge is equally important
- Built for superior precision
- Liquid filled and available for carbureted and fuel injected applications
- 0-15 PSI
- 1-1/2\" diameter
Carburetor Stud Kit, 1-3/8 Inch
- Easy installation/removal of carb plates
- Includes zinc plated steel studs, nuts and washers
- 1-3/8\" tall
Specs Notes 3-1/4" from bottom of carb base to the base of the carb neck. Mounting bolt hole pattern is 5-1/8" by 5-5/8". Includes standard wing nut, mount stud, PCV inlet hose adapter, and paper filter. The top of the air cleaner is 2-5/8" above the carb base. Sold in Quantity Kit Carburetor Barrels 4-Barrel Carburetor Flange Type 4-Barrel Square Bore Fuel Type Gasoline Choke Type Electric CFM Range 600-699 CFM CFM 600 CFM Material Type Aluminum Color Silver Secondary Type Air Valve Fuel Inlet Type Single Gasket(s) Included Yes Bolt Hole Pattern 5.160" x 5.625" Carburetor Height 4.35" Housing Style Solid Top Filter Height 3" Drop 1.25" Overall Diameter 14" Reviews I would buy this product again. Rated by Servi on May 15, 2026
Summary: Had no problems with carburetor install I'm working on tuning for final completion.
Yes, I recommend this product.
Good quality Rated by Billy78 on November 02, 2022
Summary: Everything is good quality but the air cleaner won't fit the carburetor. It hits the electric choke and won't fully seat.
Yes, I recommend this product.
