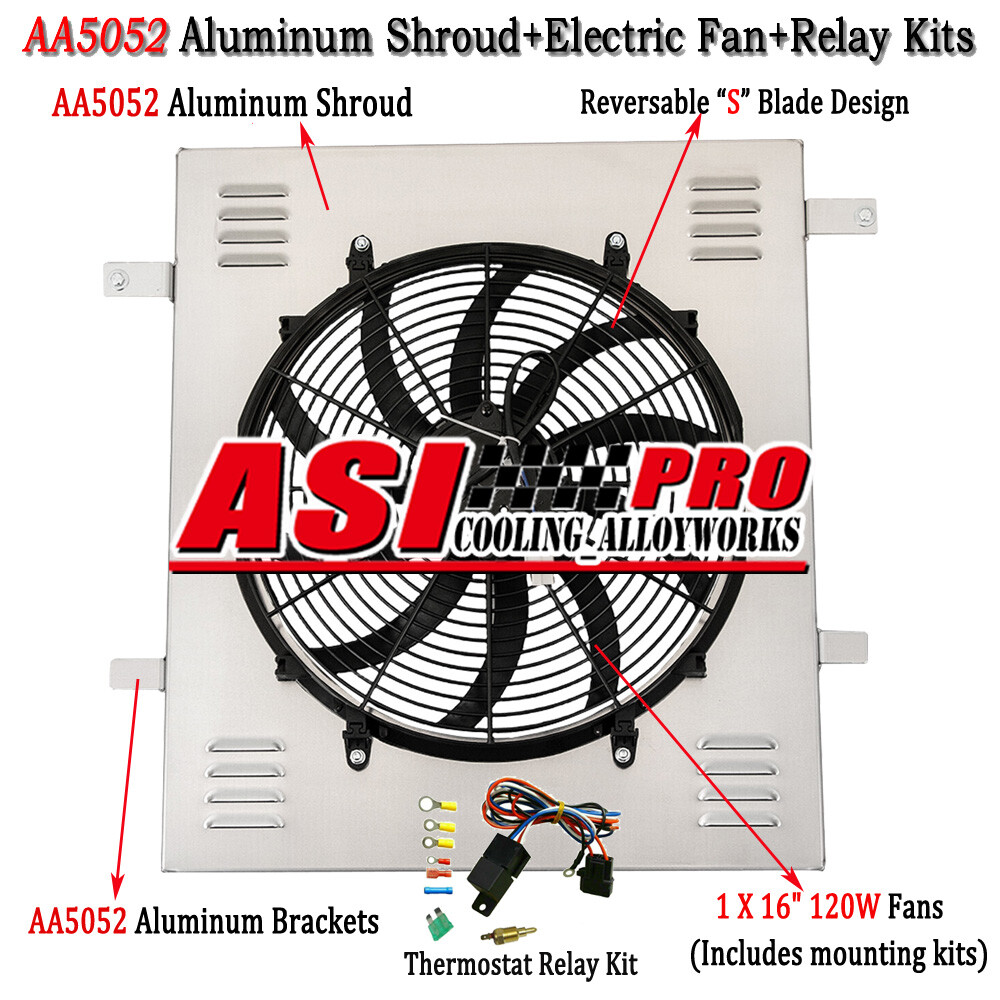

Electric Shroud Fan Relay Fit 1998-2011 Ford Explorer Ranger Mercury Mountaineer 1 X Thermostat Relay Kit
Vehicle Fitment:
For Ford Ranger 1985-1994 2.0L 2.3L L4 Engine.
For Mazda B2300 1994 2.3L L4 Engine.
For Ford Ranger & Mazda B2300 L4 1985-1994 Auto/Manual
For Ford Explorer 4.0L 1998-2001 Auto/Manual
For Ford Explorer Sport Trac 4.0L 2001-2005 Auto/Manual
For Ford Ranger 3.0L 98-08 & Ranger 4.0L 1998-2011 Auto/Manual
For Mazda B3000 3.0L 97-08 & B4000 4.0L 98-10 Auto/Manual
For Mercury Mountaineer 4.0L 2001 Auto/Manual
AA5052Aluminum Shroud and Fans:
The New Design fan and theAA5052fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1.Shuttered designAA5052fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
3. Additional with thermostat,professional matching advice, consider for every detail and needed.
Fan Specifications：
16\" Fan
Voltage: DC 12 Volts
Maximum Fan CFM: 2150 cfm
Wattage:120 Wattage
Thickness (in): 2.500\"
Number of Blades:10S-Typeblades
Maximum Fan RPM: 2,250 rpm
Amp Draw: 10amps
Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185\'F turn-on temperature, 165\'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
Note: Please contact for quote if international postage NOT display.
