Wireless Screen Mirroring – supported with compatible iPhone and Android Check Fitment Before OrderingThe UX6K2 PRO MAX is a universal Double DIN car stereo, not a vehicle-specific head unit.
Please check both the radio opening and the surrounding dashboard area before purchase.
Main Dimensions
- Required dashboard opening: 178 × 100mm
- Double DIN chassis: 178 × 100mm
- Chassis depth: approx. 80mm
- Screen assembly: approx. 254 × 177mm
The chassis may fit your radio opening while the larger screen occupies additional dashboard space.
Please make sure the display will not interfere with:
- Air vents
- Climate controls
- Hazard switch
- Dashboard buttons
- Other frequently used vehicle functions
Not a Direct Fit for Single DIN Dashboards
If your vehicle has a standard 178 × 50mm Single DIN radio opening, the UX6K2 PRO MAX is not a direct replacement.
A suitable dashboard conversion would be required.
Additional Installation Parts May Be Required
If your dashboard opening is not exactly 178 × 100mm, installation may still be possible with the appropriate vehicle-specific fascia or Double DIN installation kit.
Depending on your vehicle, you may also need:
- ISO wiring harness
- Antenna adapter
- Steering wheel control adapter
- CANBUS interface
These vehicle-specific parts are not included unless specifically stated in your selected package.
Check the Factory Wiring
The stereo is designed around a compatible ISO-standard radio connection.
If your vehicle does not use the required ISO interface, a suitable vehicle-specific ISO wiring harness or adapter will be required.
Before ordering, check:
Dashboard size + screen clearance + original radio wiring
This is more reliable than purchasing by vehicle make, model or year alone.
8GB RAM + 128GB Storage
The 8GB RAM / 128GB storage configuration is one of the main reasons to choose the UX6K2 PRO MAX.
More Memory for Multitasking
8GB RAM provides additional working memory when:
- Switching between compatible Android apps
- Running navigation and music together
- Using split-screen multitasking
- Keeping frequently used apps available
This is particularly useful for drivers who plan to use the built-in Android system regularly rather than relying only on CarPlay or Android Auto.
More Storage for Apps, Maps & Media
128GB internal storage gives you more room for:
- Compatible Android apps
- Offline navigation maps
- Music and media
- Downloaded content
- System data
For buyers who keep maps and media directly on the head unit, the larger storage capacity provides significantly more flexibility.
Android 13 + Qualcomm Performance
Powered by the Qualcomm QCM6225-AD 6nm platform, the UX6K2 PRO MAX provides responsive performance for navigation, media and compatible Android applications.
- 8-Core CPU: 4×A73 up to 2.8GHz + 4×A53 up to 1.9GHz
- Adreno 610 GPU
- 8GB RAM
- 128GB internal storage
- 1-second fast boot supported
- OTA firmware updates
- Split-screen multitasking
Run compatible functions such as navigation and music side by side without constantly switching screens.
10.1" Adjustable QLED Touchscreen
The 10.1-inch QLED display provides more room for maps, media, compatible camera images and split-screen operation.
- 1280×720 resolution
- Wide viewing angle
- Capacitive touchscreen
- Day / night brightness adjustment
- Adjustable viewing angle
- Adjustable screen position
The redesigned screen connection provides a sturdier mounting structure and a cleaner connection between the display and main unit.
Because the screen is larger than the Double DIN chassis, always confirm surrounding clearance before purchase.
Physical Buttons & Central Control Knob
Unlike many large-screen head units that rely almost entirely on touch controls, the UX6K2 PRO MAX includes physical shortcut buttons and a central knob.
This gives you quick access to common functions without navigating through touchscreen menus every time.
For everyday driving, tactile controls can be more convenient for frequently used operations.
Wireless Apple CarPlay & Android Auto
Connect your compatible smartphone and access familiar functions directly from the 10.1" display.
Use compatible:
- Navigation
- Music
- Calls
- Messages
- Siri
- Google Assistant
Both wired and wireless Apple CarPlay and Android Auto are supported.
Use wireless connection for convenience or wired connection when preferred.
ROHM 48-Band DSP Audio Control
The UX6K2 PRO MAX gives you detailed control over your in-car sound and useful flexibility for future audio upgrades.
Audio features include:
- ROHM DSP
- 48-band EQ
- Time alignment
- Multiple EQ presets
- Subwoofer control
- 25W RMS manufacturer-rated power
- Up to 4×48W amplifier output
- 5-channel preamp output
For upgraded systems, the stereo also provides 4 RCA outputs plus optical and coaxial digital outputs for compatible amplifiers and subwoofers.
Built-In GPS Navigation
Use the built-in GPS receiver and external GPS antenna with compatible offline maps or supported online navigation services such as Google Maps and Waze.
Offline maps allow route guidance without continuous mobile data.
Internet access is useful for live traffic and other connected services.
4G LTE + Wi-Fi 6 Connectivity
Insert a compatible SIM card to give the stereo its own mobile data connection for supported navigation, streaming and Android apps.
Connectivity includes:
- Built-in 4G LTE
- 2.4GHz / 5GHz Wi-Fi
- Wi-Fi 6 ready
- Bluetooth 5.1 with external antenna
- Split-screen multitasking
A SIM card is not required for Apple CarPlay, Android Auto, Bluetooth, AM/FM radio or GPS reception.
4G compatibility depends on the regional version, mobile carrier and supported LTE bands.
Wireless Screen Mirroring
The UX6K2 PRO MAX supports wireless screen mirroring with compatible iPhone and Android devices.
Supported phone content can be displayed on the 10.1" QLED screen.
Availability depends on the phone, operating system and individual app.
DRM-protected services may restrict video playback or screen mirroring.
Steering Wheel Control Support
Compatible analogue steering wheel controls are supported.
Vehicles using digital or CANBUS-based steering wheel controls may require a suitable vehicle-specific adapter.
Because steering wheel control systems vary between vehicles, please check your original wiring before purchasing.
Camera, Radio & Media Support
The UX6K2 PRO MAX supports useful parking and multimedia functions including:
- Reversing camera input
- Automatic reverse display
- Parking guidelines
- AM/FM radio with RDS
- 3 USB inputs
- USB media playback
- Up to 2K video decoding
Optional Eonon Accessories
A100 Dash Camera
Add compatible front driving recording.
A0125 / A0127 Camera
Add compatible parking or reversing-camera functionality.
V0056 Bluetooth OBD2 Scanner
View supported vehicle diagnostic information through compatible Android apps.
A503 / DX2 / DX1 DAB+ Digital Radio
Add DAB+ reception in supported UK, European and Australian regions.
A304 DSP Digital Amplifier
Add further amplification for compatible upgraded audio systems.
Optional accessories and vehicle-specific installation parts are sold separately unless specifically included with your selected package.
Frequently Asked Questions
What is the main advantage of the UX6K2 PRO MAX?
The 8GB RAM + 128GB storage configuration provides more memory for multitasking and considerably more space for compatible apps, offline maps and media.
Will the UX6K2 PRO MAX fit my car?
It is designed for compatible 178 × 100mm Double DIN dashboards, but fitment also depends on wiring and clearance for the approximately 254 × 177mm display.
Will the large screen block my air vents or controls?
This depends on your dashboard. Please measure the available space around your radio before ordering.
Can the screen position be adjusted?
Yes. The display supports adjustable positioning and viewing angle to better suit compatible dashboard layouts.
Does it have physical controls?
Yes. It includes physical shortcut buttons and a central control knob.
Does it support Wireless CarPlay and Android Auto?
Yes. Both wired and wireless Apple CarPlay and Android Auto are supported.
Can GPS work without internet?
Yes. Built-in GPS supports compatible offline navigation maps.
Do I need a SIM card?
Only if you want to use the stereo's built-in 4G LTE mobile data connection. CarPlay, Android Auto, Bluetooth, radio and GPS reception do not require a SIM card.
Will my steering wheel controls work?
Compatible analogue steering wheel controls are supported. Digital or CANBUS systems may require a vehicle-specific adapter.
Does it support wireless screen mirroring?
Yes. Wireless screen mirroring is supported with compatible iPhone and Android devices. DRM restrictions may apply to some apps.
Can I connect an external amplifier or subwoofer?
Yes. RCA, subwoofer, optical and coaxial outputs are provided for compatible aftermarket audio equipment.
A More Capable Big-Screen Double DIN Upgrade

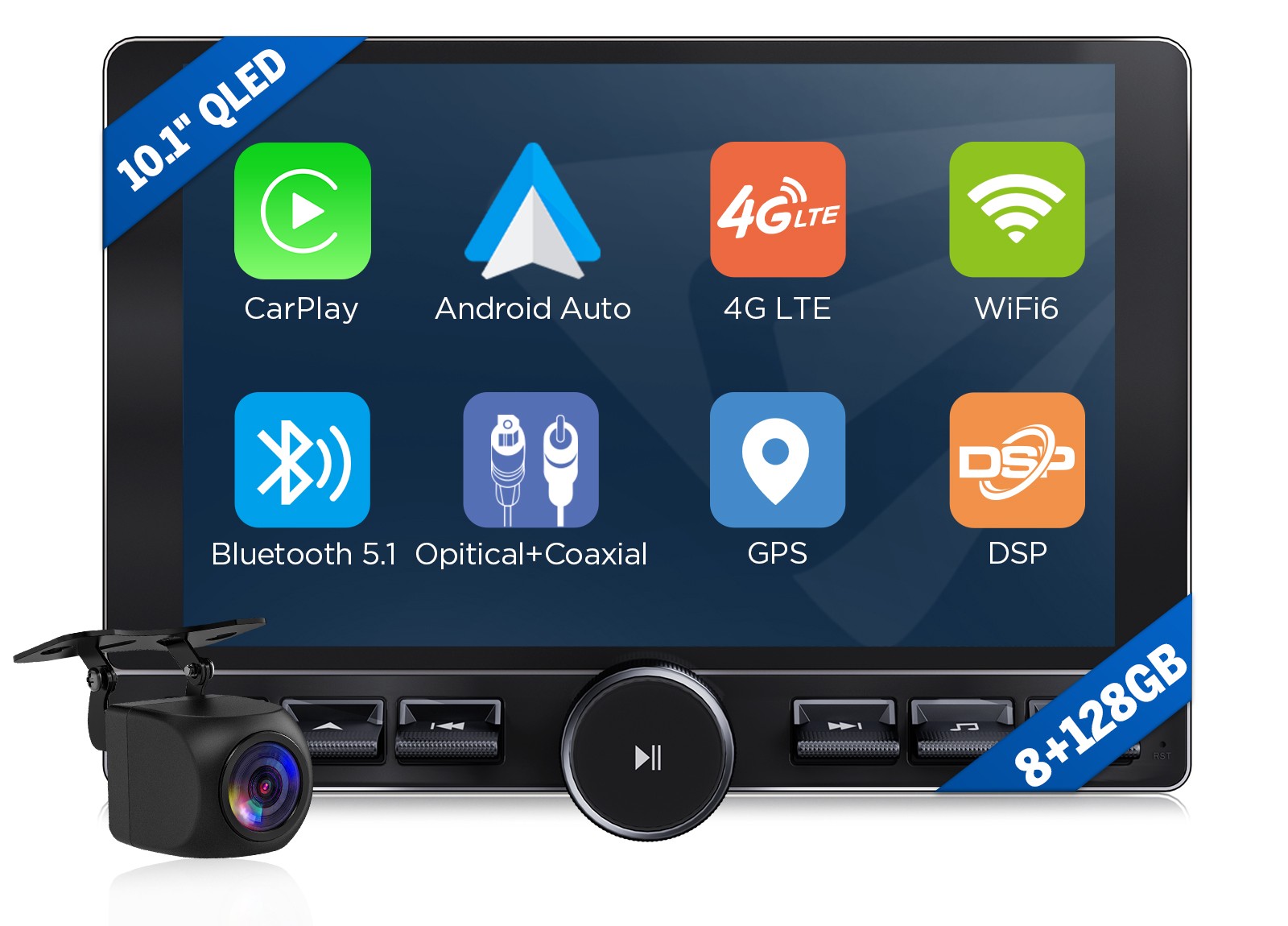

The Eonon UX6K2 PRO MAX Android Double DIN car stereo combines 8GB RAM and 128GB storage with Qualcomm 6nm performance, Wireless Apple CarPlay and Android Auto, a large adjustable 10.1" QLED display, built-in GPS, 4G LTE, Wi-Fi 6 and ROHM DSP audio control.
It is especially suited to drivers who want the flexibility of a universal Double DIN head unit while making heavier use of Android apps, offline maps, stored media and split-screen multitasking.
Before purchasing, check the 178 × 100mm radio opening, original wiring and available clearance for the approximately 254 × 177mm display.
⭐ Technical Specifications
- Operation system: Android 13
- OTA Firmware Update: Yes
- Processor: Qualcomm QCM6225-AD
- CPU Architecture: 8-core(4×[email protected] + 4×[email protected])
- RAM: 8GB
- Storage: 128GB
- Display: 10.1" QLED Touchscreen
- Resolution: 1280*720
- Operating voltage: DC12V
- Physical button/knob: Yes
- CarPlay: Wired & Wireless
- Android Auto: Wired & Wireless
- Split-screen multitasking: Yes
- Adjustable viewing angle: Yes
- Screen mirroring: Yes
- 1s fast boot: Yes
- Steering wheel controls: Yes
- Key button color: Variable
- Wi-Fi: Support 2.4G/5G & Wi-Fi 6 ready
- 4G feature: Built-in 4G module
- Custom boot logo & changeable wallpapers: Yes
- Built-in UI themes: 4
- Built-in DSP: Yes
- Built-in power amplifier: 4-channel audio output and one subwoofer audio output
- EQ bands: 48
- EQ modes: User Standard Rock POP Classical Jazz Gentle CINEMA Hall
- HPF/LPF adjustment: No
- Video input: 1
- Video output: No
- Audio input: 2
- Audio output: 4 RCA + 1 Optical + 1 Coaxial
- AUX input: No
- USB input: 3
- RMS power (manufacturer): 25W
- Max amplifier output: 4*48W
- Preamp outputs: 5-channel
- Sub preamp outputs: Yes
- Video Formats: Supports MPG, DAT, TS, AVI, MP4, MOV, 3GP, ASF, VOB, MKV, FLV, RM, RMVB, and more; supports 2K video decoding
- Audio Formats: Supports MP3, WMA, WAV, OGG, AAC, FLAC, APE, and more; online audio playback supported
- Image Formats: Supports JPEG, BMP, PNG, and more
