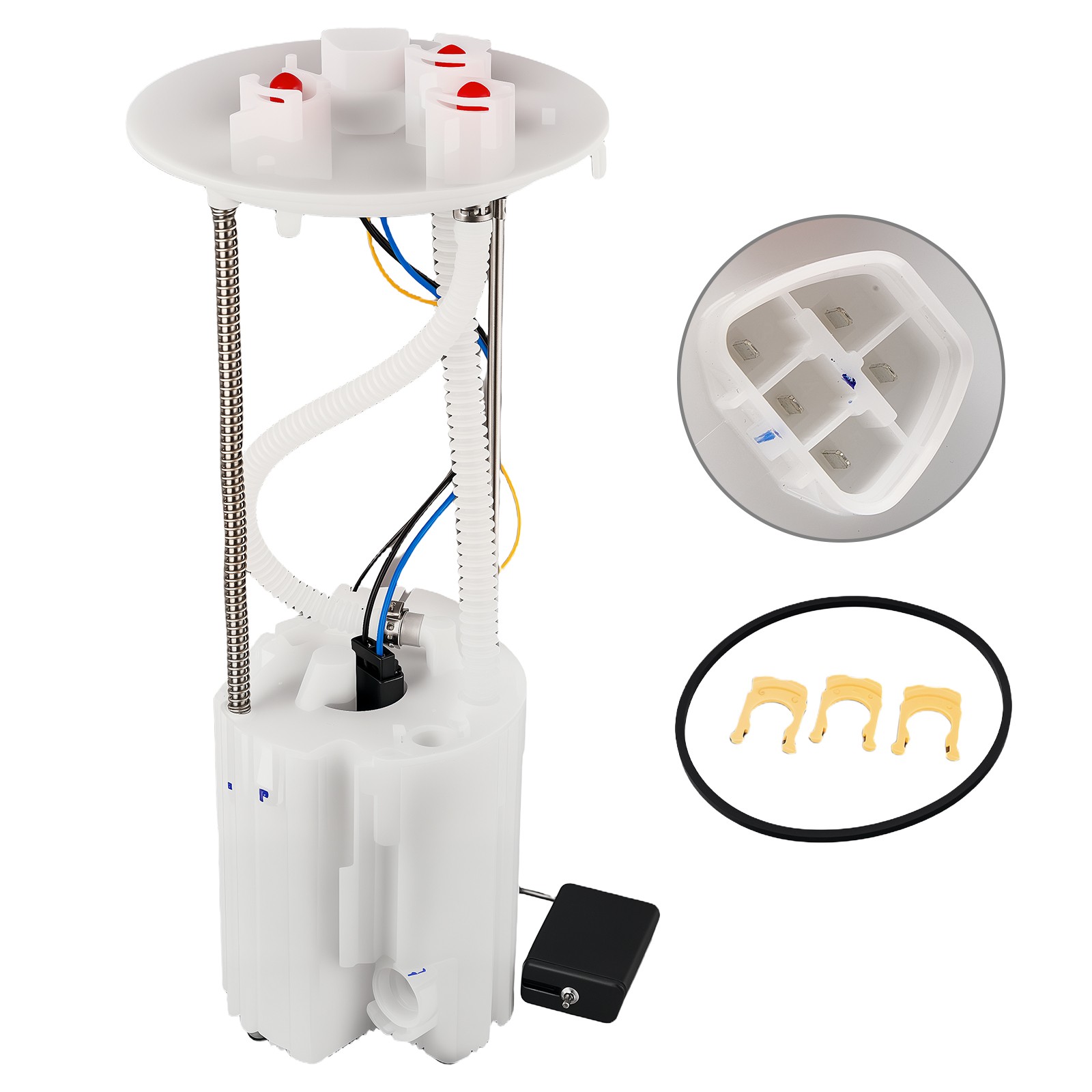

Fits 2003-2004 Toyota 4Runner V6-4.0L V8-4.7L Fuel Pump Module Assembly E9077M For Sale - New and Used

Fitment

For Lexus:
2003-2005 GX470 4.7L
For Toyota:
2003-2004 4Runner 4.0L 4.7L

Attributes

Brand:TEMBOR
OE/OEM Part Number:23010219, 7702035062, SP9015M
Condition:New
Manufacturer Warranty:1 Year
UPC:Does not apply.
Drive Type:Electrical
Fuel Type:Gasoline
Modified Item:No
Terminal Type:Blade
Voltage:12 V
Wiring Harness Included:No
Connector Gender:Female
Custom Bundle:No
Float Included:No
Flow Rate:60-50
Gasket or Seal Included:Yes
Inlet Type:Strainer
Internal Or External Strainer:Internal
Mounting Hardware Included:No
Outlet Type:Female Quick Connect
Pressure:95-105
Terminal Gender:Male
Black Pressure Sensor Included:No
Color:White
Outlet Size:5/16\"
Placement on Vehicle:In Tank
Engine:V6 4.0L, V8 4.7L
Feature:ESCP
Fuel:Petrol
In Tank or External:In Tank
Inlet Count:2
Interchange Part Number:FG1764,A46634
Model:2003-2005 GX470, 2003-2004 4Runner
Note:with Sensor, with Sending Unit
Outlet Count:2
Pin Count:5
Strainer Included:Yes
Type:Electrical

Key Benefits

• Designed specifically for compatibility with 2003-2005 GX470 and 2003-2004 4Runner, ensuring a perfect fit for these models.
• Manufactured under stringent quality control standards to ensure optimal performance and reliability.
• Features a durable construction to withstand the demands of daily driving.
• Provides consistent fuel pressure with a range of 95-105 PSI for efficient engine performance.
• Electrical drive type with a quick-connect outlet ensures fast and secure installation.

Installation Guide

• Begin by ensuring the vehicle is parked on a level surface and the ignition is turned off.
• Carefully relieve the fuel system pressure before starting the replacement process.
• Access the fuel pump in the tank by removing the rear seat or trunk access panel, depending on vehicle design.
• Disconnect the electrical connectors and fuel lines attached to the old fuel pump assembly.
• Remove the old fuel pump assembly from the tank.
• Install the new fuel pump by securing it in the tank, being cautious not to damage the float or strainer.
• Reconnect the electrical connectors and fuel lines to the new assembly.
• Replace the access panel and rear seat or trunk covering.
• Start the engine to check for leaks and ensure the pump is operating correctly.

Important Notes

• This fuel pump assembly is intended for use in vehicles with V6 4.0L and V8 4.7L engines.
• The product includes a strainer and comes with the necessary gaskets for leak prevention.
• Please note that wiring harness, sensor, and sending unit are included, while mounting hardware is not.
• Ensure all components are tightened to manufacturer specifications before engine testing.
• Consult a professional mechanic if unsure about any part of the installation process.

---
