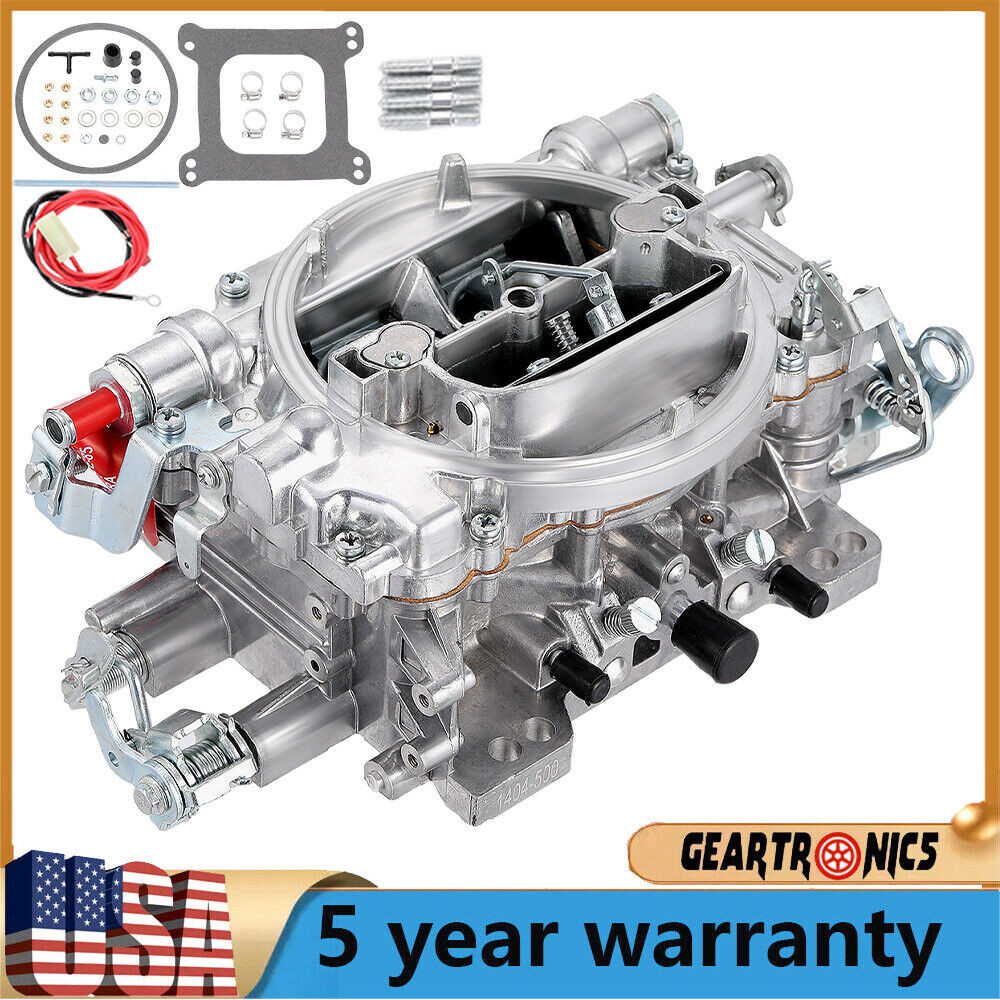

moban ven For Edelbrock 1404 Performer 500 CFM 4 Barrel Carburetor, with Manual Choke
Features
Manual Choke
Unchanged Calibration
Material Type: Aluminum
Fuel Inlet Type: Single
CFM: 500 CFM
Secondary Type: Mechanical
Carburetor Flange Type: 4-Barrel Square Bore
CFM Range: 500-599 CFM
Bolt Hole Pattern: 5.160" x 5.625"
Metering Jets - Primary .086, Secondary .095
Metering Rods - .065 x .052
Step-Up Spring - orange (5 " Hg)
Fits For the Following Models
for Plymouth Barracuda, Wagoneer, Camaro, Dodge, Chevy.
Recommended cubic inch displacement for small block dual quad applications is 302-400+ c.i.d.; Recommended cubic inch displacement for big block dual quad applications is 396-502+ c.i.d.
Package Include
1* Carburetor
