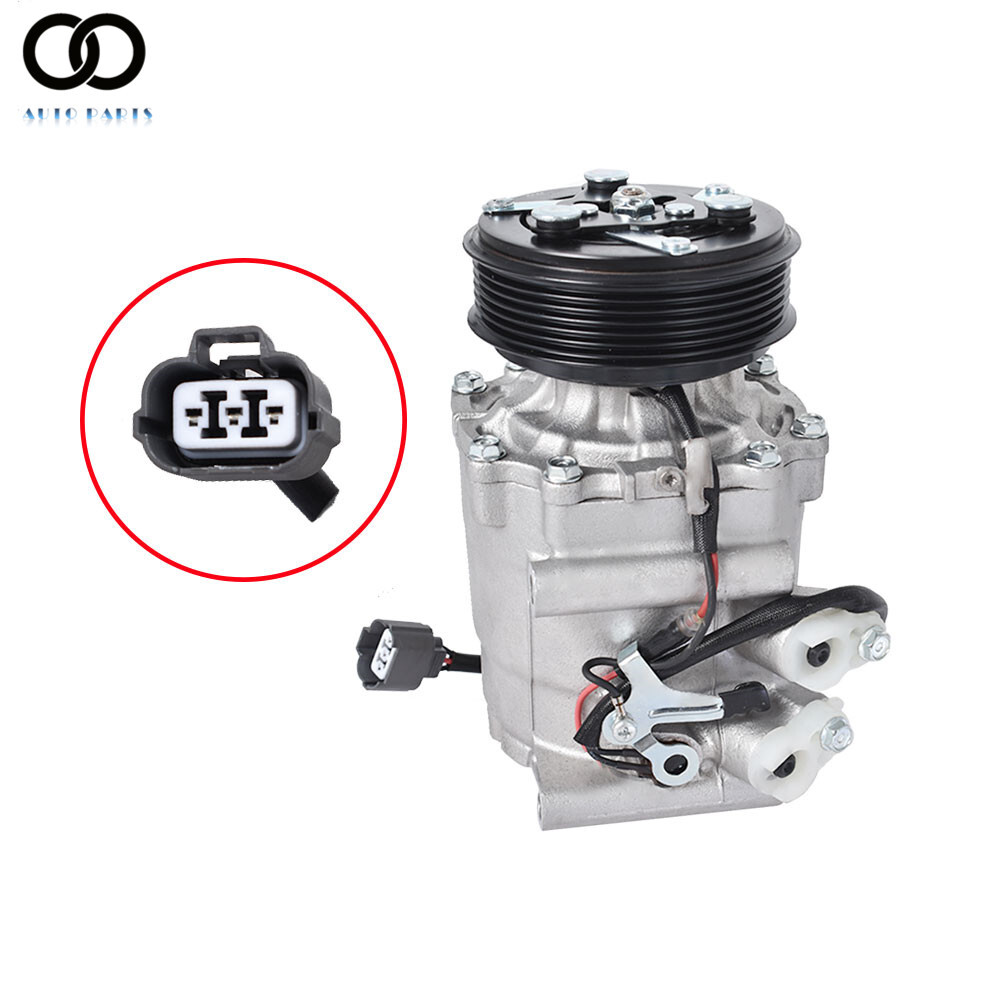

Description:Type:A/C Compressor1 Year WarrantyDirect ReplacementVoltage: 12VCompressor Type: TRSA09Oil Type: PAG 100Pulley Groove Quantity: 6 Clutch Included: YesPulley Included: YesR-efrigerant Type: R-134aPlacement on Vehicle: FrontOE Number:CO 4914AC, 2004914, 0610061, 2004914AM, 6511266, 365738800PLMA021M2, 38810PLMA12, 4914, 4973, 4978, 49804984, 4985,38810PLMA11, 38810PLMA11RM, For:For Honda Civic 2002-2005 L4 1.7LPackage include:1× A/C Compressor +ClutchInstallation Method: For Honda Civic Sedan Coupe L4 1.7L 2002 2003 2004-2005 A/C AC Compresor 6511266
Description:
Type:A/C Compressor
1 Year Warranty
Direct Replacement
Voltage: 12V
Compressor Type: TRSA09
Oil Type: PAG 100
Pulley Groove Quantity: 6
Clutch Included: Yes
Pulley Included: Yes
R-efrigerant Type: R-134a
Placement on Vehicle: Front
OE Number:
CO 4914AC, 2004914, 0610061, 2004914AM, 6511266, 3657
38800PLMA021M2, 38810PLMA12, 4914, 4973, 4978, 4980
4984, 4985,38810PLMA11, 38810PLMA11RM, 38810PLMA12RM
Application For:
For Honda Civic 2002-2005 L4 1.7L
Package include:
1× A/C Compressor +Clutch
Installation Method:
Attention Please:
Be sure to clean the air conditioning system before installation, otherwise it will cause compression broken.
1. Remove compressor:
Remove the A/C belt from the A/C compressor pulley. May involve loosening the belt tensioner (if equipped).
2.receiver drier or accumulator, orifice tube or expansion valve.
3.Disconnect the negative battery cable.
4.Remove the bolt that secures refrigerant lines to the A/C compressor. Inspect A/C lines for any contamination such as metal or excessive dirt inside of them. If you find any
contamination the system will need to be cleaned.Flush the condenser and evaporator using NON-OIL BASED A/C flush. On expansion valve systems. The valve must be removed before
the evaporator can be flushed. Flushed condensers from outlet to inlet and evaporators from inlet to outlet.
5.Drain all the oil from the new compressor ,if you compressor has a drain plug you will need to open it up and drain what oil is in there too.
6.Install half oil charge into the compressor and the remainder throughout the system. Turn compressor shaft 8-10 full revolutions to insure front seal and other internal
parts are lubricated.
7.Install new receiver drier or accumulator and new orifice tube or expansion valve.
8.Evacuate the A/C system for a minimum of one hour.
9.After evacuation install half the refrigerant charge and let the system set for 1 minute. This will allow the refrigerant to pick up oil and spread more evenly throughout
the system.
10.Turn on the A/C system with the engine running and check to see if cold air is now coming out of the air duct.
11.If the A/C system is functioning ,you may find that your electric radiator fan and compressor clutch will be cycling off and on depending on the outside air temperature.
To confirm that this part fits your vehicle, enter your vehicle's Year, Make, Model, Trim and Engine in the Compatibility
Item SpecificsCountry of Origin United StatesType Compressor & Clutch AssemblyBrand autooopartsManufacturer Part Number APO121512OE/OEM Part Number CO 1Interchange Part Number on Vehicle FrontSize 12.5×3cm/ 5" × 1.97" (L×D) approFitment Type Direct ReplacementMaterial SteelManufacturer Warranty 1 YearPulley Groove Quantity 6Superseded Part Number Item NoYear 2002-2005Model For Honda CivicEngine L4 1.7L
