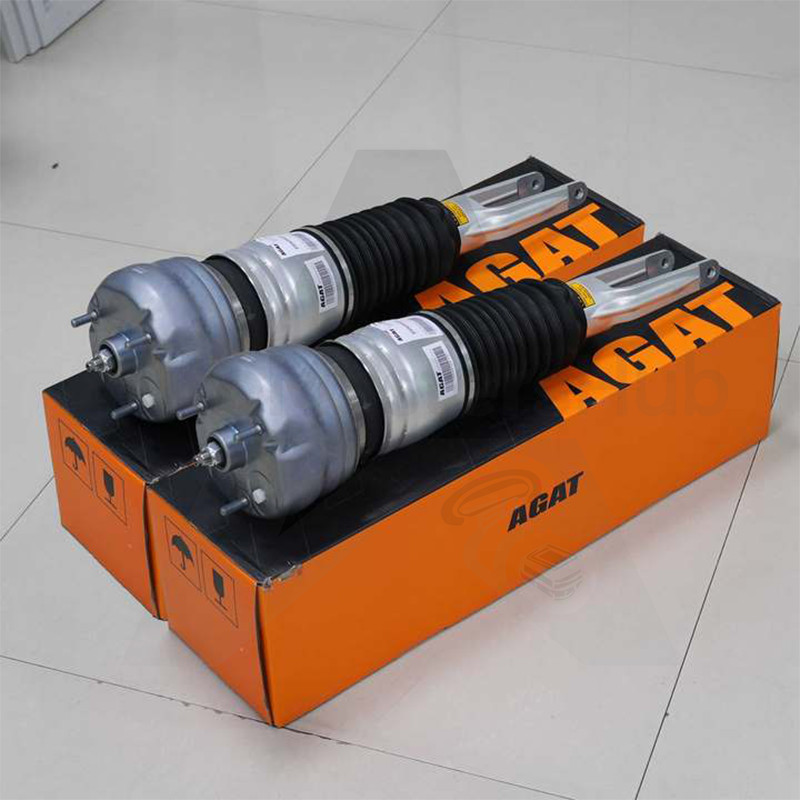

Front Pair Air Suspension Strut For Porsche Panamera GTS Turbo Base 4S 2014-2016
Application
For 2014-2016 Porsche Panamera S (970.2 Chassis)
For 2014-2016 Porsche Panamera GTS (970.2 Chassis)
For 2014-2016 Porsche Panamera Turbo (970.2 Chassis)
Interchange Part Number:
97034305233, 97034305234, 97034305235, 97034305237
Condition: New
Placement on Vehicle:Front Left Right
Part Type: Air Suspension
Quantity: 2 piece
Warranty: 3 Year Warranty for Any Manufacture OEM Product：Easy to install
2. Exterior Inspection: Ensure no visible damage to the product.
3. 100% Airtightness Test.
4. Provide stable driving quality and comfort.
5. Adjustment performance meets standards.
6. 4-Layer reinforcement construction, enhances air spring load support.
7. CE shockare aftermarket ones. They will replace the original air shock. Please doubleconfim thecompatibilityas well as theOEM numberbefore purchasing.
-Instruction is not included. Professional installation is recommended.
-Contact us please for whatever we can help.
Note Before Installation:
1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Raise vehicle.
3.Remove applicable front wheel.(picture 1)
4.Remove the upper plastic cover that sits above the air strut.(picture 2)
5.Disconnect the strut connector retaining clip.(picture 3)
6.Disconnect the top electrical plug.(picture 4)
7.Disconnect the air line and remove the air fitting.(picture 5)
8.Loosen and remove the three top shock mounting nuts.(picture 6)
9.Disconnect the wheel speed sensor.(picture 7)
10.Detach the wheel speed sensor wires from their retention brackets.(pictures and remove the sway bar end link nut and seperate from the strut.(picture 11)
12.Loosen and remove the bottom mount nut and bolt.(picture 12)
13.Loosen and remove the upper ball joint nut and seperate the ball joint from the spindle assembly.(picture 13)
14.Remove the air strut from the vehicle.
Installation Guideline:
1.Install the arnott top plate onto the air shock.(pictures 14,15)
2.Install the air shock into the vehicle.(picture 16)
3.Install the bottom mounting bolt and nut and tighten to manufacturer's specifications.(pictures 17,18)
4.Reattach the sway bar end link. Reinstall the sway bar end link nut and tighten to manufacturer's specifications.(picture 19)
5.Reattach the upper ball joint to the spindle assembly. Install the nut and tighten to manufacturer's specifications.(picture 20)
6.Reinstall the top shock mounting nuts and tighten to manufacturer's specifications.(picture 21)
7.Reinstall the air line.(picture 22)
8.Reinstall top electrical plug, being careful to appropriately orient the electrical connection to align the pins.(picture 23)
9.Reinstall the strut connector retaining clip.(picture 24)
10.Reattach the wheel speed sensor wires to the mounting brackets.(pictures the wheel speed sensor.(picture 28)
12.Reinstall the upper plastic cover.(picture 29)
13.Reinstall the wheel.
14.Lower the vehicle.
15.Installation on VehicleFront, Left, RightTypeAir Suspension StrutFitment TypeDirect ReplacementSizeSingle Dimension(CM) Weight(KG)19Maximum Operating Pressure (psi)160Minimum Operating Pressure (psi)90PackageBoxModified ItemNoIncluded HardwareNoneDrive LayoutFront Engine RWD & AWDPlatform970Custom BundleYesMaterialIron, Aluminium Alloy, RubberQuantityPairManufacturer Warranty4 YearsOE Spec or Performance/CustomOE SpecAdjustableYesFeaturesSealedUPCDoes not applyManufacturer Part NumberAM839779M01Interchange Part Part Part Number97034305134,97034305237Handling time1 DayReturn Policy30 Days Free Return Or ExchangeFeatureESCP
