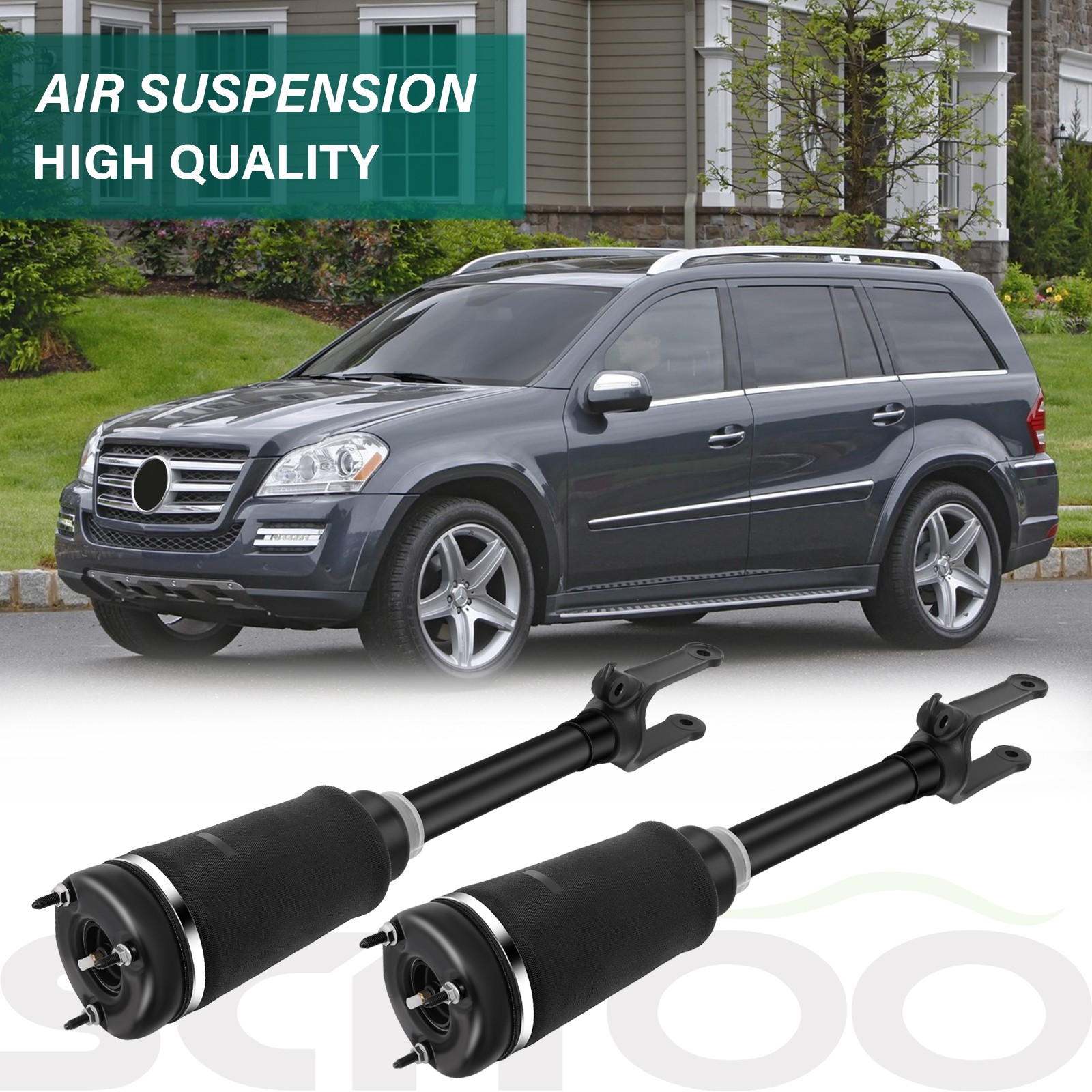

Front Pair Air Suspension Struts For Mercedes X164 GL350 GL450 W164 ML320 ML350:
$256.95

*Compatibility Chart

1, You can distinguish specific model of an automobile by VIN(Vehicle Identification Number).

2, VIN(Vehicle Identification Number) consists of total 17 English letters and arabic digits.

3, VIN does not include the letters I (i), O (o), and Q (q) (to avoid confusion with numerals 1 and 0).

Mercedes-Benz GL-ClassGL320 Bluetec4MaticSport Utility 4-Door 3.0L 2009GL320 CDI Sport Utility 4-Door 3.0L 2007-2008GL350 Bluetec4MaticSport Utility 4-Door 3.0L 2010-2012GL450 Base Sport Utility 4-Door 4.6L 2007-2012GL450 Base Sport Utility 4-Door 4.7L 2007-2009GL550 Base Sport Utility 4-Door 5.5L 2008-2011

Front Pair Air Suspension Struts For Mercedes X164 GL350 GL450 W164 ML320 ML350

*Compatibility Chart

1, You can distinguish specific model of an automobile by VIN(Vehicle Identification Number).

2, VIN(Vehicle Identification Number) consists of total 17 English letters and arabic digits.

3, VIN does not include the letters I (i), O (o), and Q (q) (to avoid confusion with numerals 1 and 0).

Mercedes-Benz GL-Class
GL320 Bluetec4MaticSport Utility 4-Door 3.0L 2009
GL320 CDI Sport Utility 4-Door 3.0L 2007-2008
GL350 Bluetec4MaticSport Utility 4-Door 3.0L 2010-2012
GL450 Base Sport Utility 4-Door 4.6L 2007-2012
GL450 Base Sport Utility 4-Door 4.7L 2007-2009
GL550 Base Sport Utility 4-Door 5.5L 2008-2011

Mercedes-Benz M-Class
ML320 CDI Sport Utility 4-Door 3.0L 2007-2008
ML3504MaticSport Utility 4-Door 3.5L 2006-2011
ML350 Base Sport Utility 4-Door 3.5L 2006-2007 2009-2011
ML350 Bluetec4MaticSport Utility 4-Door 3.0L 2010-2011
ML350 Introduction Sport Utility 4-Door 3.5L 2006
ML350 Lujo Sport Utility 4-Door 3.5L 2008-2009
ML350 Premium Sport Utility 4-Door 3.5L 2006
ML350 Sport AMG Sport Utility 4-Door 3.5L 2010-2011
ML350 Sport AMG Sport Utility 4-Door 5.5L 2010-2011
ML450 Hybrid4MaticSport Utility 4-Door 3.5L 2010-2011
ML500 Base Sport Utility 4-Door 5.0L 2005-2007
ML500 Introduction Sport Utility 4-Door 5.0L 2006
ML500 Premium Sport Utility 4-Door 5.0L 2006
ML500 Special Edition Sport Utility 4-Door 5.0L 2005
ML550 Base Sport Utility 4-Door 2008-2011

If you need toany other air suspension shock strut(With Adaptive DampingSensor)
please click >Front Left/RightAir Suspension Struts please click >Front Pair air Suspension strut

please click >Rear Left/Right air suspension strutplease click >Rear pair air Suspension Struts

please click >Front PairAir Suspension click >Front Rear airSuspension Struts

please click click >FrontRear air suspension Struts+Air Suspension compressor

If you need toany otherair suspensionShocks Struts(Without Adaptive DampingSensor)

please click >Front Left/RightAir Suspension Struts

please click >Rear air suspension strutplease click >Rear pair air Suspension Struts

please click >Front PairAir Suspension click >Front Rear airSuspension Struts

please click you need toany otherair suspensionSpring (Mercedes M-Class W164GL-Class X164)

please click >FrontAir Suspension Springs please click >Front Pair air Suspension strut

please click >Rearair suspension springplease click >Rear pair air Suspension Springs

please click >Front PairAir Suspension Struts+Front Pair Air Suspension Springs(Without Adaptive DampingSensor)

please click >Front PairAir Suspension Struts+Front Pair Air Suspension Springs(WithAdaptive DampingSensor)

please click >Front Rear airSuspension Springs

please click >RearPairAir Suspension Struts+RearPair Air Suspension Springs(WithAdaptive DampingSensor)

please click >FrontPairAir Suspension Struts+RearPair Air Suspension Springs(Without Adaptive DampingSensor)

please click >FrontPairAir Suspension Struts+RearPair Air Suspension Springs(WithAdaptive DampingSensor)

please click >Front Pair air suspension Springs+Air Suspension compressor

please click >RearPair airsuspension Springs+Air Suspension compressor

please click >FrontRear air suspension Springs+Air Suspension compressor

*Air SuspensionStructure:

10 A164 320 43 13 Hydropneumatic Spring Leg
10 A164 320 44 13 Hydropneumatic Spring Leg
10 A164 320 45 13 Hydropneumatic Spring Leg
10 A164 320 58 13 Air Suspension Strut
10 A164 320 59 13 Air Suspension Strut
10 A164 320 61 13 Air Suspension Strut
15 A000 327 03 69 Connector
20 A164 540 66 10 Wiring Harness
30 N 910105 016002 Hexagon Head Bolt
40 N 000000 005275 Nut
50 N 000000 003905 Nut
50 N 000000 005277 Nut
60 N 000000 003250 Washer
200 A001 545 96 40 Bracket
700 A210 540 21 81 Clutch
705 A000 545 69 80 Gasket
705 A008 545 63 26 Female Contact

*Generation &Evolution:

Mercedes-Benz GL-Class
X164 First generation (2007-2012)
X166 Second generation M-Class
W163 First generation (1997-2005)
W164 Second generation (2005-2011)
W166 Third generation (2011-2019)
W166 Sport Utility
C292 Coupé Version
W167 Fourth generation (2019-present)

*Platform Drive Layout:

Base Model-Rear Wheel Drive Layout

4MaticModel-FourWheel Drive Layout

*Air Strut Removal Guideline:
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
1.Set steering to straight ahead.
2.Raise vehicle.
3.Remove front wheel.
4.Disconnect the sway bar linkage.(picture 1)

5.Remove the nut from the ball joint and separate from the spindle assembly.(picture 2)

6.Cut the cable tie securing the wire harness mount, then remove the wire harness mount from shock.(picture 3)

7.Disconnect the air line by unscrewing the brass fitting from the strut's top mount.(picture 4)

8.Remove the three(3)upper mount flange nuts.(picture 5)

9.Remove the lower shock mount nut, followed by the bolt and remove the strut from the vehicle.(picture 6)

*Air Strut Installation Guideline:
1.Install the replacement strut onto the vehicle in the same orientation as removed.
2.Install the lower shock mount bolt and nut, tighten to manufacture's specification.(picture 7, 8)

3.Reattach the spindle assembly and install the nut onto the ball joint, tighten to manufacture's specification.(picture 9,10)
