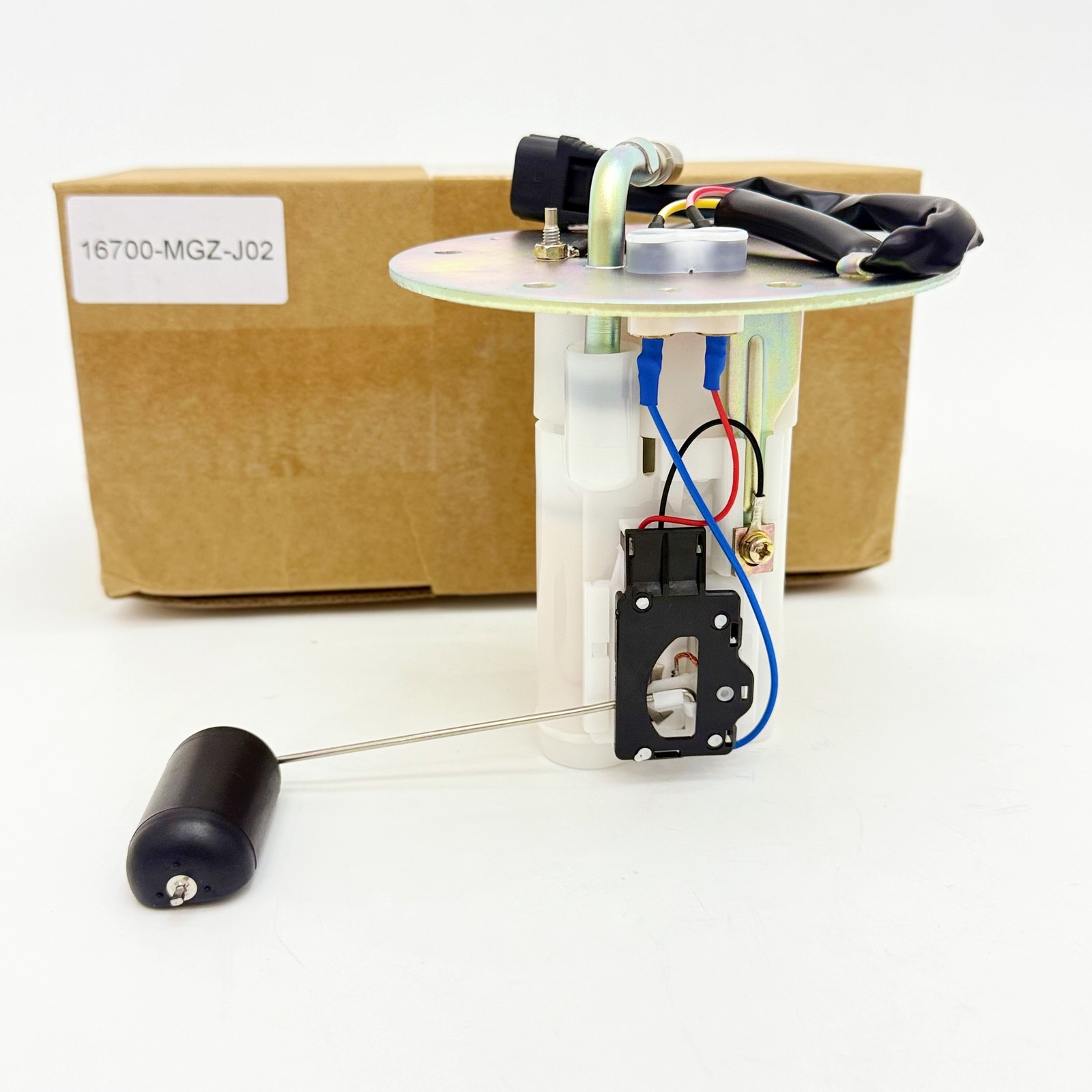

⛽ Honda CB500F / CBR500R Fuel Pump Assembly – OEM 16700-MGZ-J02📌 Item OEM Direct ReplacementOE / MPN16700-MGZ-J02Full OE Number16700MGZJ02OE DescriptionPUMP ASSY., FUELProduct TypeComplete Fuel Pump AssemblyVehicle BrandHondaVehicle TypeMotorcyclePrimary ApplicationsCB500F / CBR500R / CB500XFuel SystemElectronic Fuel Injection (EFI)Installation PositionIn-TankFuel TypeGasoline / PetrolElectrical System12V Motorcycle SystemFuel Level SenderIntegrated in the fuel-pump assembly configurationConditionBrand New ReplacementOE Replacement16700-MGZ-J04Package1 × Complete Fuel Pump Assembly✨ Product Overview
Restore reliable fuel delivery to your Honda motorcycle with this replacement Fuel Pump Assembly for OE reference 16700-MGZ-J02.
Honda parts catalogs identify 16700-MGZ-J02 as PUMP ASSY., FUEL. Honda later superseded this part with 16700-MGZ-J04. The J02 application is documented in Honda fuel-tank/fuel-pump diagrams for early CB500F and CBR500R models.
The assembly is installed inside the fuel tank and provides pressurized fuel delivery to the EFI system.
🔧 Key Features
Direct replacement reference for Honda OE 16700-MGZ-J02
Complete fuel pump assembly
In-tank electric fuel pump
Designed for Honda EFI motorcycle applications
Gasoline / petrol compatible
Integrated fuel-delivery components
OE replacement number 16700-MGZ-J04
Suitable for selected Honda 500-series motorcycle applications
⚙️ Technical TypeComplete Fuel Pump AssemblyOE Number16700-MGZ-J02Replacement OE16700-MGZ-J04InstallationIn-TankFuel SystemEFIFuelGasoline / PetrolElectrical System12VPump PressureNot officially confirmedPump Flow RateNot officially confirmedOperating CurrentNot officially confirmedMotor PowerNot officially confirmedFuel Level SenderIntegrated assembly componentFuel StrainerAssembly componentFuel verify before installation
⚠️ Technical Data Notice: Honda's public parts catalogs confirm the assembly identity and vehicle application but do not provide pump pressure, flow rate, current or motor-power specifications for 16700-MGZ-J02. Do not publish aftermarket test figures as Honda factory specifications.
🏍️ Confirmed Honda ApplicationsHonda CB500FMakeModelModel Twin EFI471cc2013–2015HondaCB500F ABSPC45Parallel Twin EFI471cc2013–2016
Honda dealer parts diagrams show 16700-MGZ-J02 in the CB500F fuel-tank/fuel-pump assembly, with 16700-MGZ-J04 subsequently replacing it.
Honda CBR500RMakeModelModel / PC45Parallel Twin EFI471cc2013–2015HondaCBR500R ABSPC44 / PC45Parallel Twin EFI471cc2013–2016
Honda parts diagrams for the CBR500R identify 16700-MGZ-J02 as the fuel-pump assembly and later list 16700-MGZ-J04 as its replacement.
Honda CB500X
Honda parts catalogs and OEM reference databases also associate 16700-MGZ-J02 with selected CB500X applications. Megazip identifies the number with Honda CB500, CB500S, CB500F, CB500X, CBR500F and CBR500R model families.
For CB500X, verify the exact year, model code and market before listing the original J02 number as a guaranteed direct OE application.
📊 Fitment SummaryOE NumberBrandProductModelChassis / Model Pump AssemblyCB500FPC45Parallel Twin Pump AssemblyCB500F ABSPC45Parallel Twin Pump AssemblyCBR500RPC44 / PC45Parallel Twin Pump AssemblyCBR500R ABSPC44 / PC45Parallel Twin Pump AssemblyCB500XPC46 / relatedParallel Twin EFI471ccSelected applications🔁 OE / Supersession NumbersReference TypeNumberOriginal Honda OE16700-MGZ-J02Full OE Format16700MGZJ02Previous Related Number16700-MGZ-J01Later Replacement16700-MGZ-J04OE DescriptionPUMP ASSY., FUEL
Honda dealer catalogs explicitly state that 16700-MGZ-J04 replaces 16700-MGZ-J02, as well as other earlier MGZ-J0x pump assemblies.
🧩 Assembly Components
The Honda fuel-pump assembly is associated with several fuel-system components, including:
Electric Fuel Pump
Fuel Level Sender
Fuel Strainer
Fuel Filter
Pump Housing / Carrier
Electrical Connector
Internal Wiring
Fuel Outlet Connection
Mounting Components
Honda's parts diagrams list the fuel pump assembly separately from other fuel-tank components such as the fuel hose, tank seal and fuel filter.
⚠️ Common Fuel Pump Failure Symptoms
A worn or failing fuel pump may cause:
⚠️ These symptoms may also be caused by a restricted fuel filter, electrical problems, injector faults, wiring issues or other EFI-system problems.
🛠️ Installation Notes
Before installation:
Confirm the original OE number.
Compare the replacement assembly with the original pump.
Verify the motorcycle model and model year.
Check the electrical connector.
Compare the fuel outlet configuration.
Verify the mounting arrangement.
Inspect the fuel tank for dirt or contamination.
Replace damaged seals or O-rings.
Prime the fuel system after installation.
Check for fuel leakage.
Verify fuel pressure according to the Honda service procedure.
⚠️ Work in a well-ventilated area and keep gasoline away from flames, sparks, cigarettes and other ignition sources.
📦 Package Contents
Standard Package:
⚠️ Exact aftermarket package contents may vary.
Unless specifically shown or stated, the following are not guaranteed to be included separately:
⚠️ Aftermarket Cross-Reference Notice
Some aftermarket catalogs list 16700-MGZ-J02 for additional Honda motorcycles, Rebel
CRF1000L Africa Twin
These broader applications are aftermarket cross-reference claims, not necessarily the original Honda catalog application for J02. They should be verified by exact model code, year, connector and pump configuration before being used as guaranteed OE fitment.
🚚 Quality & Customer Service
Brand-new replacement fuel pump assembly
OE-number-based application matching
In-tank EFI fuel delivery design
Protective packaging recommended
Inspect the assembly before installation
Confirm compatibility before purchase
📌 Before Purchase
Please verify your original fuel pump number is 16700-MGZ-J02 or that your vehicle catalog identifies 16700-MGZ-J04 as the applicable replacement.
For accurate fitment, compare:
