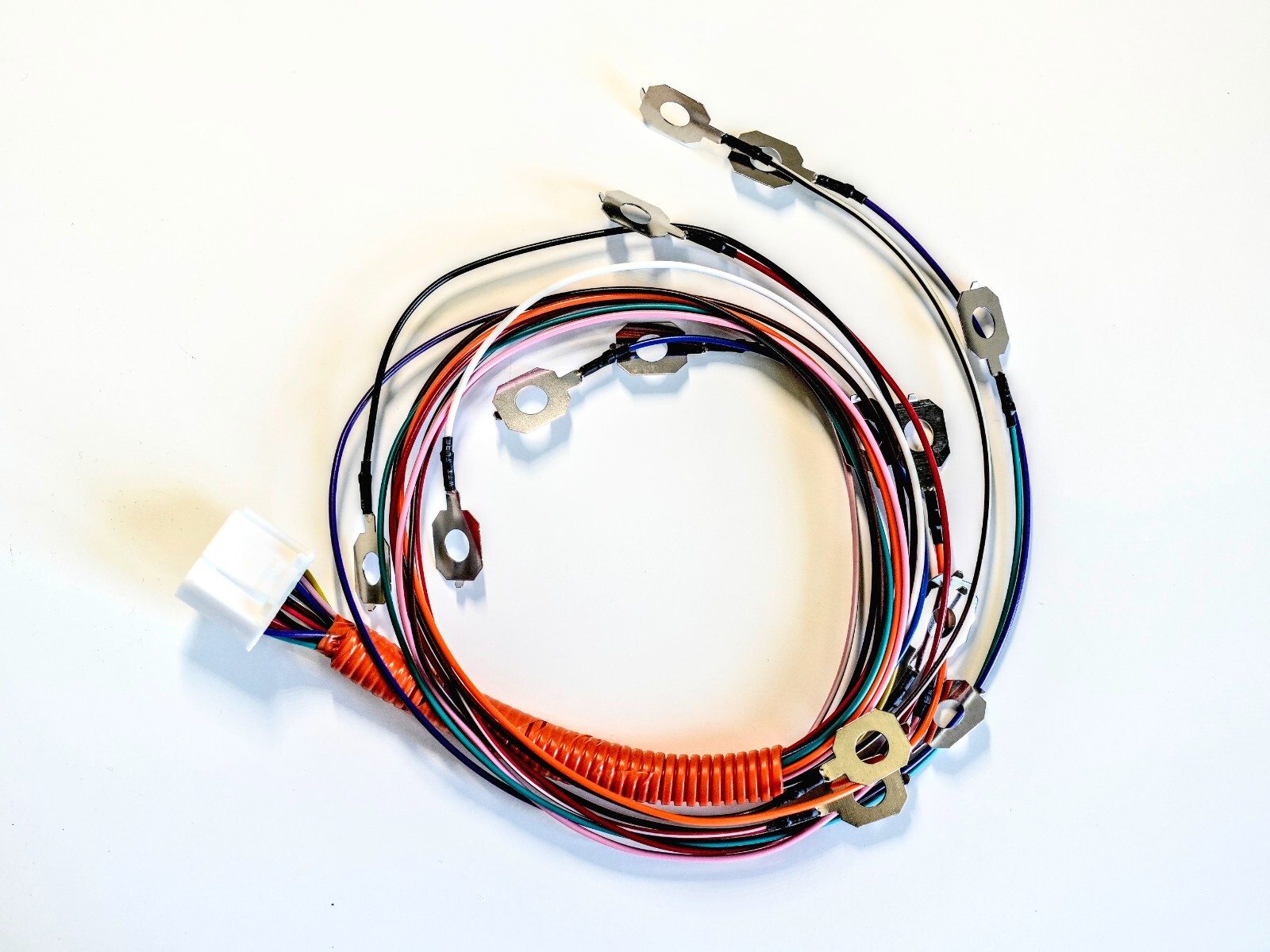

The wire harness is designed for Gen 3 (2010-2015) Toyota Prius, but is also compatible with Toyota Prius V and Lexus CT200h. It was engineeredand developed in the USA, withthree main goals in mind:
1. To be as efficient or more efficient than OEM in transmitting a signal between the battery modules and the ECU.
2. To be more durable and reliable than OEM wire harness.
3. To be more cost-effective than the OEM wire harness alternative.
Here are some notable benefits of ACENBAY Hybrid Battery Wire Harness for Gen 3 (2010-2015) Toyota Prius, as compared to theToyota OEM wire harness:
➡Voltage sensor tabs are thicker than OEM for increased durability.
➡ Voltage sensor tabs are made of a better conductive copper alloy compared to the OEM
(a metallurgical study was done on OEM materialfor proper selectionofcopper alloy with equal or superior heat rating and conductivity properties)
➡ Voltage sensor tabs crimping connection resistsdoublethe amount of pull-out force compared to the strength of the OEM sensor tabs crimping connection.
➡ Voltage sensor tabs crimping connectionis sealedto protect the wires from corrosive electrolytes and to improve durability.
➡Wires' operational temperature rating is greater and internal resistance is lower, compared to the OEM.
➡ The existingorange wire harness frame/housing is intended to be reused with a new wire harness (a short 15video with easy step-by-step instructions was for some reason not allowed by , but it is available on our company website).
By reusing the existing wire harness housing,manufacturing cost savings arepassed on to the customer, and as an added bonus, plastic waste pollution is minimized.
Please notethat the wire colors do not correspond to the factory wiring diagram. In the future, the wire harness will be supplied preassembled in the orange frame,but until then the wire harness is to be installed in the existing/reused wireframe, according to provided sequence.
