Description

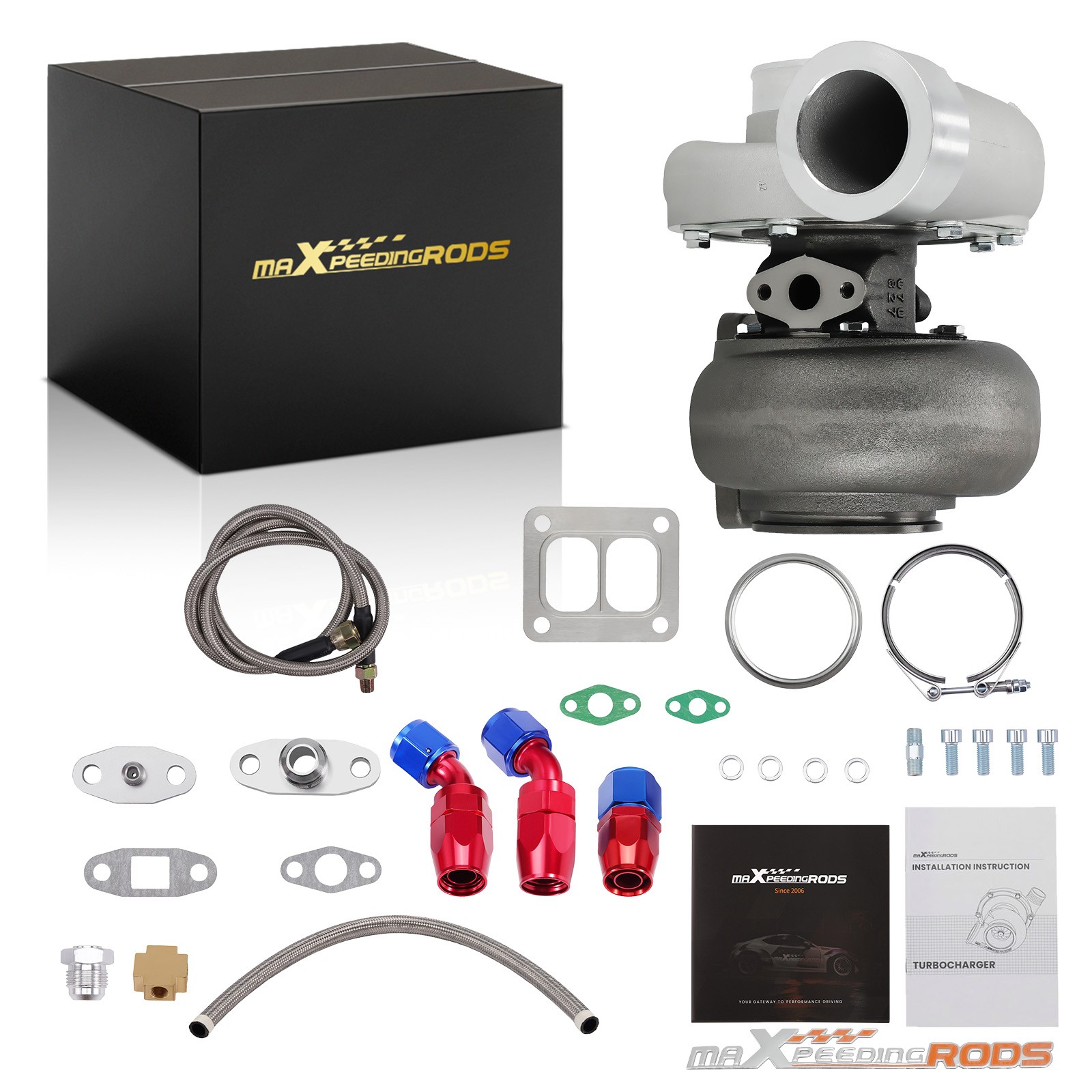

All modifications must be installed by licensed mechanics and in compliance with your local modification style=\"text-align:center\">GT45 Turbocharger T4 V-BAND 600+HP +Oil Feed Return Line Kits
1. AboutGT45 Turbocharger
Fit for:
Perfect for the vast majority of 4.0L - 6.0L engine
Exhaust (Turbo Manifold) Flange:T4 Twin Scroll Flange
Exhaust Outlet Flange:3.25 \" Inlet Flange 4.25\" Clamp V-Band
Wastegate:w/o Wastegate
Horse Power:Boost Horse Power up to 600+ BHP
Turbo Height:243cm
Turbo Width:273cm
Oil Inlet:M9 & 2*M8*1.25
Oil Outlet:M19 & 2*M8*1.25
Compressor:
Trim: 49.6
Inducer Diamter:69 mm
Exducer Diamter: 98mm
A/R: 0.66
Turbine:
Trim:77.6
Inducer Diamter:88 mm
Exducer Diamter:77.5 mm
A/R:1.05
2.AboutOil Feed+Return Drain Line
* Stainless Steel Braided
* Includes complete install kit
* It helps circulate oil from the turbocharger to the oil pan.
* The kit provides a anodized look
* gives a best cooling on your turbo and long lasting life.
Oil Return Line: Length: 550mm || Inner Diameter: 21mm
OilFeedLine: Length: 1000mm || Inner Diameter: 14mm
Condition:100% Brand New
Warranty:2 Year warranty
NOTE:
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
* This is universal application turbo, so modification might be required for some vehicles.
