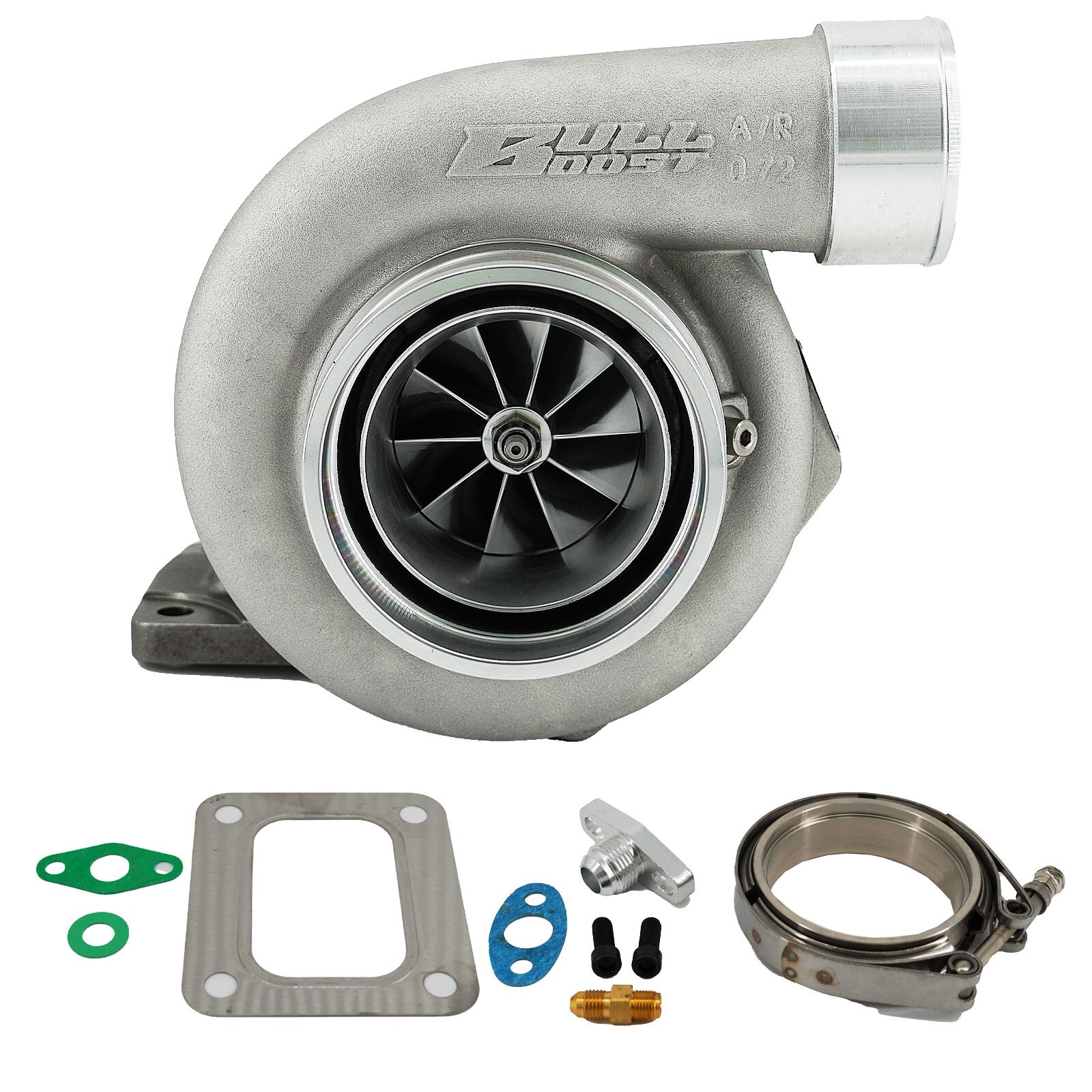

Billet Wheel Dual Ball Bearing Turbo GT35 GTX3582R T4 .82 A/R Vband Clamp 4 Bolt
Specification:BilletCompressor wheel:63.5mm/84mmCompressor Housing:0.7 A/R Anti-Surge, 4" Inlet, 2.5" OutletTurbine wheel:68mm/62.3mmStainless SteelTurbine housing: V BandInlet,V-Bandoutlet(ID roughly 3'', OD roughly 3.5''),A/R 0.82
Fit Vehicle: Universal turbo for performance use, racing car etc.
Fit engine displacement 2.0-4.5L and typically good for around 600HP-850HP. Fit engine displacement 4.0-8.0Lfor twin turbo applications and up to 1200HP.
Recommended boost pressure are 0.5Bar(7psi) to 1.5Bar(21psi), if boost pressure higher than 2Bar,it will significantly reduce the turbo lifespan and mayresult in damaging of your engine.What can you benefit from our Dual Ball Bearing turbocharger?
Reduced Turbo Lag:Dual Ball Bearing turbochargers can spool up about 15% faster than traditional journal bearings, so it will significantly reduce the turbo lag when the throttle is suddenly opened. This produces an improved response that can be converted to a quicker 0-60 mph speed. In fact, when you drive with a dual ball bearing turbocharged engine, it will more like driving a big, normally aspirated engine.
Reduced Oil Flow:TheDual Ball Bearingdesign reduces the required amount of oil required to provide adequate lubrication. This lower oil volume reduces the chance for seal leakage. Also, the dual ball bearing is more tolerant of marginal lube conditions, and diminishes the possibility of turbocharger failure upon engine shut down.
Improved Rotordynamics and Durability:TheDual Ball Bearingcartridge gives better damping and control over shaft motion, allowing enhanced reliability for both everyday and extreme driving conditions. In addition, the opposed angular contact bearing cartridge eliminates the need for the thrust bearing commonly a weak link in the turbo bearing system.What can you benefit from our Forged Billet Compressor Wheel?
Stronger Wheel:By using forged billet aluminum to make the wheel, there is no chance of minute air bubbles being in the mental. So, you don't need to worry about porosity issues. That means billet compressor wheel is much stronger than cast compressor wheels.
Better Blades Design:By using forged billet aluminum and machined on a 5-Axis mill, the billet compressor wheel can be designed much more aggressively, the nose and hub can be designed significantly smaller to allow for a greater blade diameter. And the blades can be made much more complicated to increase blade surface area, which can flow more air into the engine.
Lower Engine Intake Air Temperature:By using forged billet aluminum, the wheel can be machined much thinner. This allows the wheel to have a greater efficiency range, because their is less blade thickness to contact the air and heat it up. It also means that with less blade thickness and lower hub area that there is a greater area in-between the blades to squeeze more air and build boost pressure. The more efficient a wheel is the lower the intake temps, and everyone knows the cooler the air going into the engine the more horsepower you can make!
