Welcome to our Transfer Case Motors division, where innovation and reliability converge to elevate your driving experience. Whether you're looking to enhance your vehicle's capabilities or replace worn-out components, our range of transfer case motors is designed to deliver exceptional performance and durability.Why Choose Our Transfer Case Motors? 1.Premium Quality Assurance: Our transfer case motors are crafted using advanced materials and undergo rigorous testing to ensure superior quality and reliability. Each unit is built to withstand tough conditions and provide long-lasting performance. 2.Optimized Performance and Efficiency: Helical Limited Slip Differential For Dana 30 Front 27 Spline SL D30-4-27-LSD
Welcome to our Transfer Case Motors division, where innovation and reliability converge to elevate your driving experience. Whether you're looking to enhance your vehicle's capabilities or replace worn-out components, our range of transfer case motors is designed to deliver exceptional performance and durability.
Why Choose Our Transfer Case Motors?
1.Premium Quality Assurance:
Our transfer case motors are crafted using advanced materials and undergo rigorous testing to ensure superior quality and reliability. Each unit is built to withstand tough conditions and provide long-lasting performance.
2.Optimized Performance and Efficiency:
Engineered for seamless integration and precise fitment, our motors optimize torque transfer and enhance vehicle stability. Experience smoother shifts and improved fuel efficiency, contributing to a more responsive driving experience.
3.Ease of Installation and Compatibility:
Designed to be plug-and-play replacements for a variety of vehicle models, our motors facilitate straightforward installation. This ensures minimal downtime and hassle-free upgrades for your vehicle.
4.Customer-Centric Approach:
We prioritize customer satisfaction by offering competitive pricing, comprehensive warranty coverage, and dedicated support. Our team is committed to providing expert guidance to help you make informed decisions.
5.Trusted Expertise and Support:
With years of industry expertise, we offer reliable solutions tailored to your automotive needs. Whether you're a DIY enthusiast or a professional mechanic, we're here to support you every step of the way.
Differential Repair and Installation Instructions
Tools and Materials Needed:
- Dial indicator
- Gear marking compound and a clean brush
- Calipers or a micrometer
- Bearing pullers
- Bearing press
- Three-foot-long breaker bar or strong impact gun
- Pinion nut socket
- Ring gear bolt socket
- Main cap bolt socket
- Six-point cross pin bolt wrench
- Brake line wrench
- Pry bars for removing the carrier case
- 24 oz Ball peen hammer
- 48 oz sledge hammer
- 48 oz plastic dead blow hammer
- Assorted brass punches
- Punch for marking carrier caps
- Oil drain pan
- Foot pounds torque wrench
- Inch pounds torque wrench
- Preparation
Make sure that you have all the parts and tools you will need. The extent of disassembly depends on the job being done and the inspection findings. Lift the vehicle using an appropriate lift or a jack and safe jack stands.
Unbolt the driveshaft from the yoke. Remove the differential cover or unbolt the third member. Let the oil drian into a suitable container. Please recycle your waste oil.
Remove c-clip axles by removing the differential cross pin bolt and cross pin shaft, pushing the axles in and pulling the c-clips.Full float axles are unbolted at the hubs.
Punch both carrier caps with identification marks so that you will be able to re-install them on the same side and in the same direction.
Most carriers can be pulled out of the housing with a pry bar. If you’re changing the ring and pinion or the pinion bearings, remove the pinion nut with an air gun while holding the yoke, or use a long breaker bar and brace the yoke (bolt it to a long board) so that it can’t move. Knock the pinion gear out to the rear with a brass punch taking care not to damage the threads. Keep track of the positions of all of the original shims. Pinion bearings must be pressed off. Carrier bearings can be pulled using a bearing puller. Internal parts (inside the carrier) can be moved as necessary.
B.Inspection
Inspect all bearings and races for pitting or uneven wear. The inner carrier bearing races should not spin on the carrier journals.
The carrier races should have a snug fit in the housing. Inspect the carrier race bores for grooves from spinning races. “Spun” carriers and housings can be machined to accept slightly larger races and bearings.
The side gear bores inside the carrier should not have any abnormal wear. All gear teeth should be smooth but not excessively shiny. Inspect gear teeth for pitting, chips, breaks, and for signs of uneven wear and overheating. Inspect positraction clutches for scoring and wear. Inspect the axles for pitted, grooved, or dull and rough bearing surfaces. Check for worn axle splines. All questionable parts should be replaced.
C. Differential Adjustments
The four essential differential adjustments are pinion depth, pinion bearing preload, backlash and carrier bearing preload.
D. Preparing Parts
Clean all new and used parts with clean solvent. Dry the parts. De-burr the back of the ring gear and carrier mounting surface with a file or wet stone. Wash out the housing with solvent and check all of the oil passages to make certain that there are NO metal particles or dirt that can lead to early wear. Many housings have oil passages to the pinion and grooves just outside of the carrier bearings. Push rags through the axle tubes using solvent or brake cleaner until they are clean. Polish all seal surfaces with light emery cloth or fine sandpaper and then wipe them with a clean rag and clean oil or solvent to remove metal particles.
Use a moderate coat of gear oil (not grease!) on all bearings and grease on all seals and seal surfaces just prior to installation.
E.Initial Assembly
We have successfully set up thousands of differentials without using a pinion depth setting tool.
Pinion depth shims either go under the rear pinion race or on the pinion shaft under the rear pinion bearing. The diameter of your shims will determine where they go.
Try using the original shim depth for your first attempt. The rear pinion bearing must be pressed on the pinion shaft and the pinion races must be tapped into the housing with a large punch so that they seat evenly.
Install the front bearing and carefully tap the pinion seal in place with an old race.
Ford 8” and 9”, and GM 10.5” and HO72 use a pilot bearing which must be tapped in, with a retainer for the Fords.
Mount the ring gear to the carrier with a drop of red Loctite on each bolt.
Carrier bearings are pressed on the carrier and secured with green Loctite.
Note that in For Dana Spicer differentials the carrier shims go between the carrier and carrier bearings.
Again, try using the original shim configuration
Enhance Your Driving Experience Today:
Explore our range of transfer case motors and discover how they can transform your vehicle's performance and reliability.
Contact Us:
For more information or personalized assistance, reach out to our friendly team. We're here to help you choose the right transfer case motor for your vehicle and ensure you get the most out of your upgrade.
Conclusion:
we're committed to delivering top-quality transfer case motors that exceed expectations. Trust us to provide reliable solutions that enhance your vehicle's performance and driveability.
.
Item SpecificsBrand :app-autopartsManufacturer Part Number :APP178910S02Manufacturer Warranty :1 YearItems Included :LockerType :Limited Slip DifferentialPlacement on Vehicle :FrontOE/OEM Part Number :SL D30-4-27-LSDVintage Car Part :NoPerformance Part :YesUniversal Fitment :NoFitment Type :Direct ReplacementMaterial :MetalApplications :For Dana 30 front differentialsSpline Axles :27Gear Ratio :3.73-up
1.Weacceptmultiplepayment methods.2.The note there will NOT be read. If you want to change the shipping address, please contact us by messages.3.(if you want cancel orders or change address pls contact us within 6 hours after payment,or we are not responsible for shipping a replacement.)4.Payment must be received within 10 days as sale ended or order might be delayed.1.We only accept PayPal.
2.Please do not use the PayPal note field to indicate us to ship to other address. The note there will NOT be read. If you want to change the shipping address, please contact us by messages.
3.(if you want cancel orders or change address pls contact us within 6 hours after payment,or we are not responsible for shipping a replacement.)
4.Payment must be received within 10 days as sale ended or order might be delayed.1.We only accept PayPal.
2.Please do not use the PayPal note field to indicate us to ship to other address. The note there will NOT be read. If you want to change the shipping address, please contact us by messages.
3.(if you want cancel orders or change address pls contact us within 6 hours after payment,or we are not responsible for shipping a replacement.)
4.Payment must be received within 10 days as sale ended or order might be delayed.1.We only accept PayPal.2.Please do not use the PayPal note field to indicate us to ship to other address. The note there will NOT be read. If you want to change the shipping address, please contact us by messages.3.(if you want cancel orders or change address pls contact us within 6 hours after payment,or we are not responsible for shipping a replacement.)4.Payment must be received within 10 days as sale ended or order might be delayed.
1. Orders processed within 24 hours of payment verification.
2. We accept all payment
3. The images shown are not the actual item and are for your reference only.
4. If you have not received your shipment within 15 days from payment , please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
1.We stand behind every product we sell.
2.All of our brand new items come with a 30-Days money-back guarantee.
We maintain high standards of excellence and strive for 100% customer satisfaction! response IS VERY IMPORTANT TO US. We request that you contact us immediately BEFORE you give usresponse, so that we can satisfactorily address your concerns.

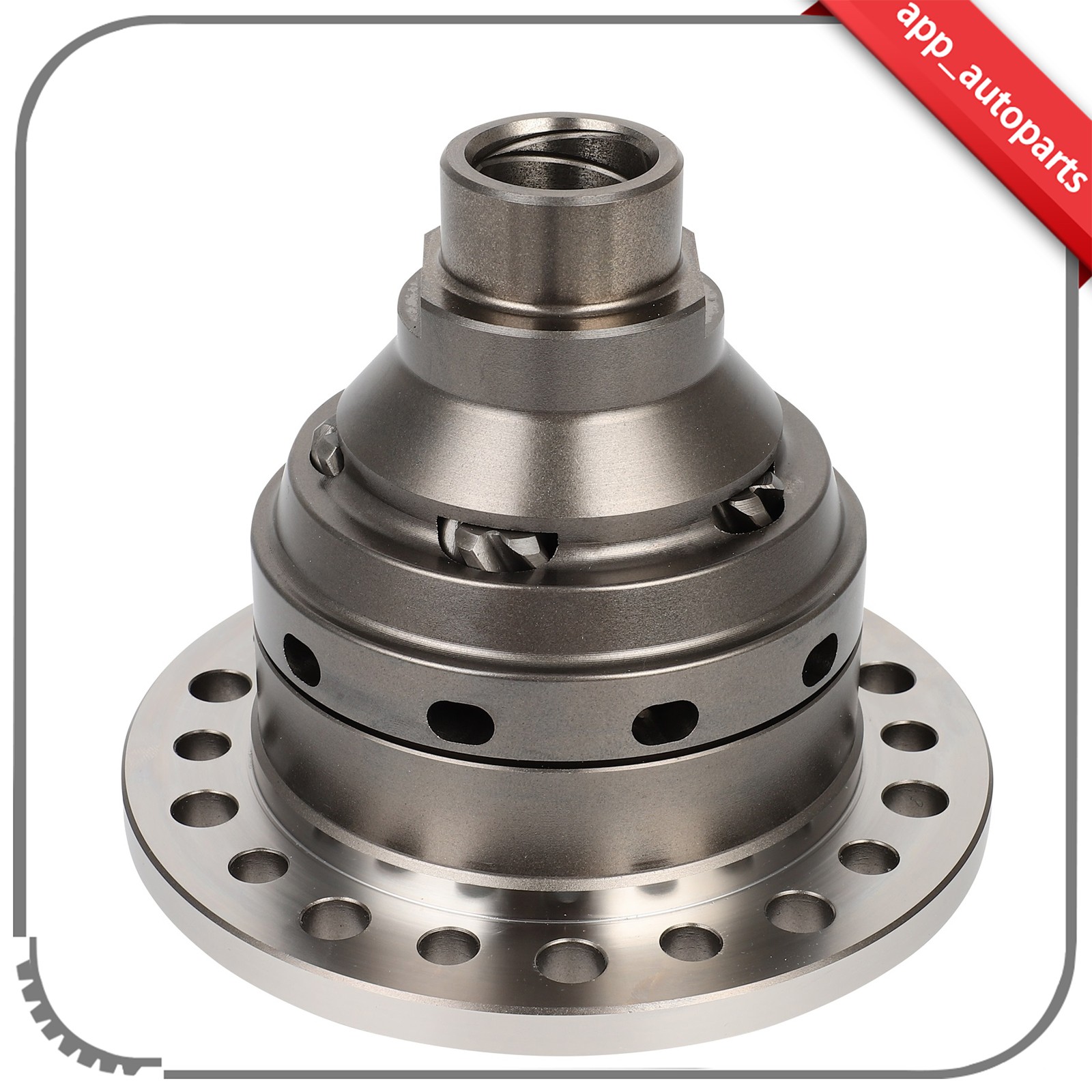

Helical Limited Slip Differential For Dana 30 Front 27 Spline SL D30-4-27-LSD
