Purchase Notices: 1. This single-DIN car stereocan be installed in vehicles with a dashboard opening size of 178mm (width) × 50mm (height).If your vehicle's dashboard opening differs from 178×50mm, an additional installation kit (notincluded) will be required for proper fitting.2. Please note: The power cable is a universal 20-pin harness. Depending on your vehicle, you may need to order additional dedicated ISO harness, amplifier adapter,or CANBUS harness (not included).3. Not supported: Factory-installed GPS antenna, rearview camera, Bluetooth, USB, or microphone functionality.4. Important: This unit only supports JOYING-branded accessories. AR front/rear cameras, OBDII scanners, TPMS, and steering wheel controllers are not includedin the package but can be purchased separately.
Main Features:

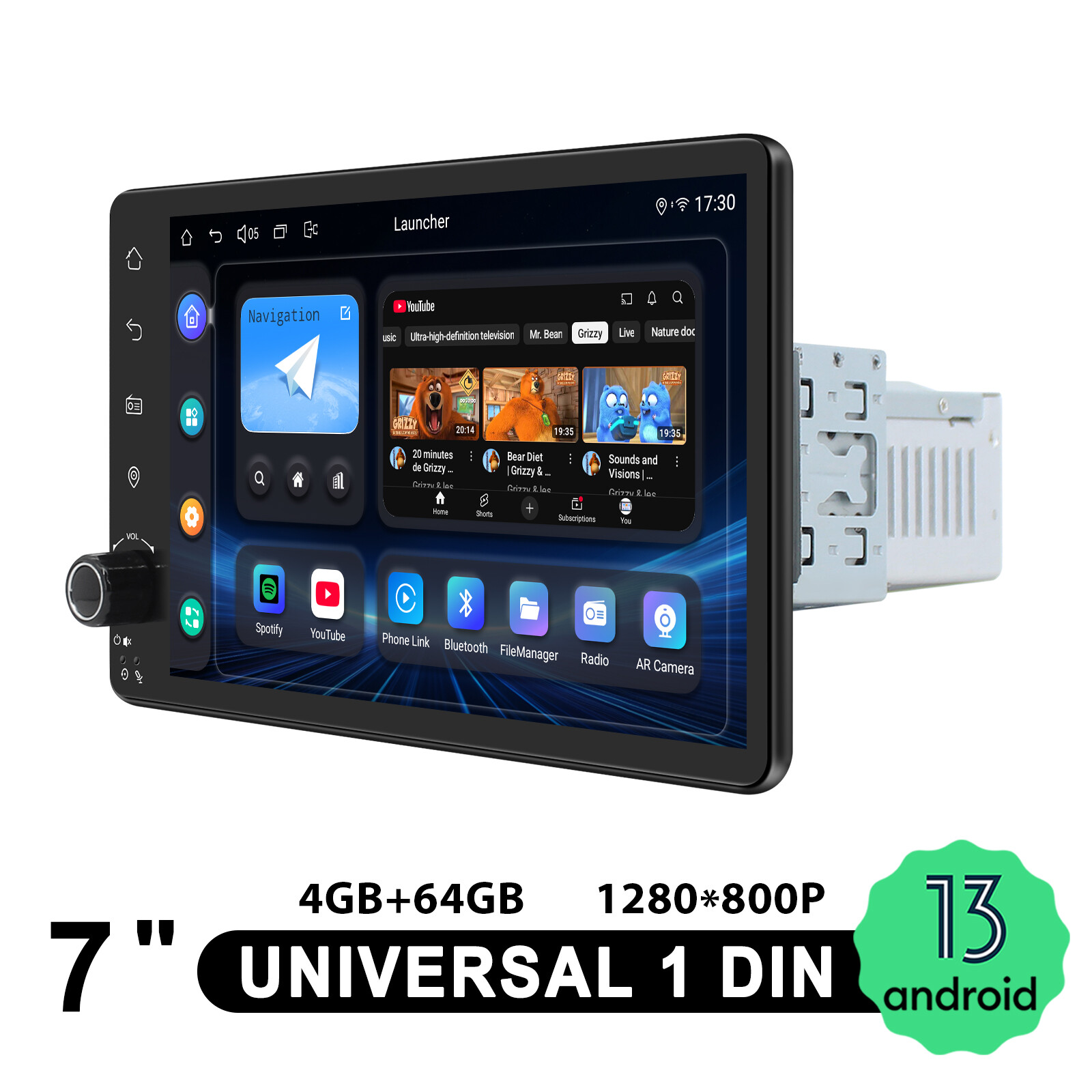

* 7 inch HD 1280*800P Touch Screen without rotation function.
* Qualcomm QCM6125 8-Octa CPU, 4GB RAM, 64GB ROM and Advanced 11nm LPP semiconductor
technology offering high-performance for next-generation electronic devices.
* Working Voltage: 10V-14V; Working Temperature: -20℃-70℃
* Fast boot: once put in car key,it will start up at once and enter into user interface in 2-5 seconds.(It need about 30-40
seconds in the first time boot up)
* USB / Micro SD card slot: Built in 3x USB ports and 1x Micro SD card slot. Supports the storage up to 128GB.
* Bluetooth 2.1+EDR/3.0/4.1 LE/4.2 BLE/5.0 LE. (Notice: it only supports phone and OBD dongle connection) Support
audio streaming, automatic Phone Book transfer and hands free call.
802.11A/B/G/N/AC WiFi & 4G Module:1. Support dual WiFi band connecting. Works well with both 2.4GHz and 5GHz WiFi, provide higher speed and stable network signal, also help solve the interference from surrounding networks.2. Insert the SIM card for Internet access, but it cannot support to make phone calls or send SMS.
Supported the below types:
* USA Version:
* Eurasian Version：
TDD-LTE: B38/B39/B40/B41 (200 MHz)
WCDMA: B1/B2/B4/B5/B8
GSM: 850/900/1800/1900 MHz
Built-in Carplay & Android auto:
It's designed to minimize distraction so you can stay focused on the road ahead. It allows the stereoaccess the
phone and usethe app in driving way such as setting navigation route, make calls, listen to music.
* Android Auto compatible using wired and wireless connection.(Android7.0andlater)
Note:wirelessandroidauto is only available on Android phone supports both 5G cellular and 5G WiFi.
* CarPlay compatible using wireless connection. (iOS 10.1 and later)
GPS Navigation:
Precise GPS engines, more accurate positioning, including GPS antenna, can better receive satellite signals, thus
ensuring faster real-time navigation.
* Online maps:
Google maps app is preinstalled, you can use online maps after connecting the head unit to the network.
* Offline maps:
If you are in an area where downloading the data of google offline map is supported, you can save the map data
of that area to the car stereo in good map and use it offline.
* Synchronize mobile phone map datato head unit via Carplay/ Android auto.
Built-in DSP:
Matches DSP sound effect processing chip with TDA7851 power amplifier output chip, and supports SPDIF digital audio
output.Our car stereo has a good sound quality output standard. You can adjust the sound effect as needed when
listening to music, radio and watching movies. It brings you a feast of hearing.
* 48-band equalizer, preset 20 kinds of sound effects.
* DTS5.1 panoramic surround sound brings higher-order surround stereo hearing experience.
* The front and rear speaker, subwoofer can be amplified output and adjusted independently.
NOTE: Comes with Optical Digital & Coaxial Digital output port, you can connect the amplifier to achieve better
sound quality.
