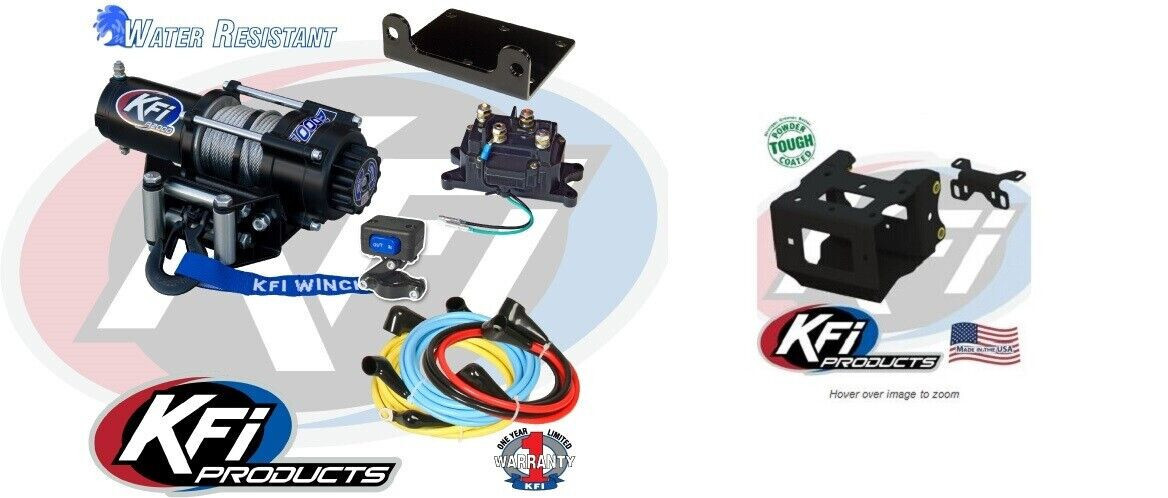

KFI 2500 LB Steel Cable Winch and Mount Kit Sportsman 400 450 500 550 570 800 For Sale - New and Used

Brand New "KFI" Winch Mount and winch for the FollowingPolaris ATV's:

Polaris ATV'sYearScrambler 850 (XP)'13-24Scrambler 1000 (XP)'14-18Sportsman ETX (Hawkeye)2015Sportsman 400'11-14Sportsman 450'16-24Sportsman 450 Utility Edition(!!! SEE NOTE X Below)'21-24Sportsman 500'11-13Sportsman 500 Touring'11-13Sportsman 550 (XP)'09-14Sportsman 550 Touring'10-14Sportsman 550 X2'10-14Sportsman 570 (Base/SP/EFI)'14-24Sportsman 570 EPS (Base/Utility)'14-20Sportsman 570 EPS (!!! SEE NOTE X Below)'21-24Sportsman 570 Premium2020Sportsman 570 Premium (!!! SEE NOTE X Below)'21-24Sportsman 570 Utility HD LE (!!! SEE NOTE X Below)'21-24Sportsman 570 Touring'14-24Sportsman 570 X2'15-22Sportsman 800'11-14Sportsman 850 (XP, Highlifter)'09-24Sportsman 850 Touring'10-24Sportsman 850 X22011Sportsman XP 1000'15-24Sportsman XP 1000 Touring'15-24Sportsman 6x6 Big Boss'11-24

Mount designed to work with the following winches:

• KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
• KFI: AS-50 (requires purchase of ATV-MR)
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
• RAMSEY : ATV2500 / ATV3000
• SUPERWINCH : LT2000 / LT2500 / LT3000 / LT4000ATV (Will NOT work with Terra 25/35/45)
• MILE MARKER : PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• MASTER LOCK : 1500lbs #2955AT
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• CYCLE COUNTRY : Work Power 1500 and 2500
• BADLAND: Standard 4-Holes Winches (Do NOT Fit)
• VENOM:2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
  • All with 3.00" x 4.875" bolt pattern mount-up.
• KEEPER CORP. TRAKKER : KT2500 / KT3000 / KT2500C / KT3000C
• KEEPER CORP. TRAKKER : KT2000
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• SMITTYBILT : XRC 2.0
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • Listed models come with incorrect ATV roller fairleads.
• SMITTYBILT : XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000
  • 4-Hole Standard (3.00" x 4.875" bolt pattern.
• Traveller: 1078088/ 1078302
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
• Possibly many others with the below standard mounting patterns, call to confirm.
  • 4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
  • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
• QUADBOSS: RP25 /
• 100% MADE IN USA.
• Constructed of10 GA GR50steel
• Designed to fit between in the OEM location below the radiator
• Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability.
• Mounts the same as OEM intended.
• Works with all Polaris OEM Brush Guards and Double Tube Bumpers.
• Very easy to install.
• Complete installation instructions included.
• All mounting hardware included.
• Will work with Polaris Glacier Plow.
• Satisfaction guaranteed.
• Roller fairlead and winch not included.


KFI 2500LB Kit Winch

• Whether it's on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV, or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. The compact 2500lb ATV Series winches feature quality cast aluminum and durable steel components, water resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty, all metal turn clutch. All of the KFI winches are backed by a 1-year Limited Warranty and come with everything you need other than an ATV model specific winch mount. Everything is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount.
• Model: A2500-RL ATV Series
• Rated Line Pull: 2500 lbs.
• Motor: 12V DC, 1 hp Permanent Magnet
• Gear Ratio: 171:1
• Gear/Transmission: All-metal Planetary Gear Drive
• Brake: Dynamic and Mechanical
• Clutch (free spooling): All Metal Cam Activated Freespool
• Drum Size: 1.5" (D) x 3.15" (L)
• Cable: 5/32" (D) x 45.9' (L)
• Fairlead: Multi-directional Roller
• Control: Deluxe Handlebar-Mounted Mini-Rocker Control Switch
• Winch Dimensions: 12.67" L x 4.06" D x 4.2" H
• Mounting Bolt Pattern: 3.00" x 4.875" (4-Hole)
• Recommended Battery : 12 Amp/hour minimum
• Warranty: Limited 1 Year
• Winch Weight: 24.8 lbs. (complete kit)

• •

    ---
