KFI SNOW PLOW KIT \'09-26 SUZUKI 500 King Quad AXI - 54\" Steel ATV Kit For Sale - New and Used

$KFI SNOW PLOW KIT \'09-26 SUZUKI 500 King Quad AXI - 54\$
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

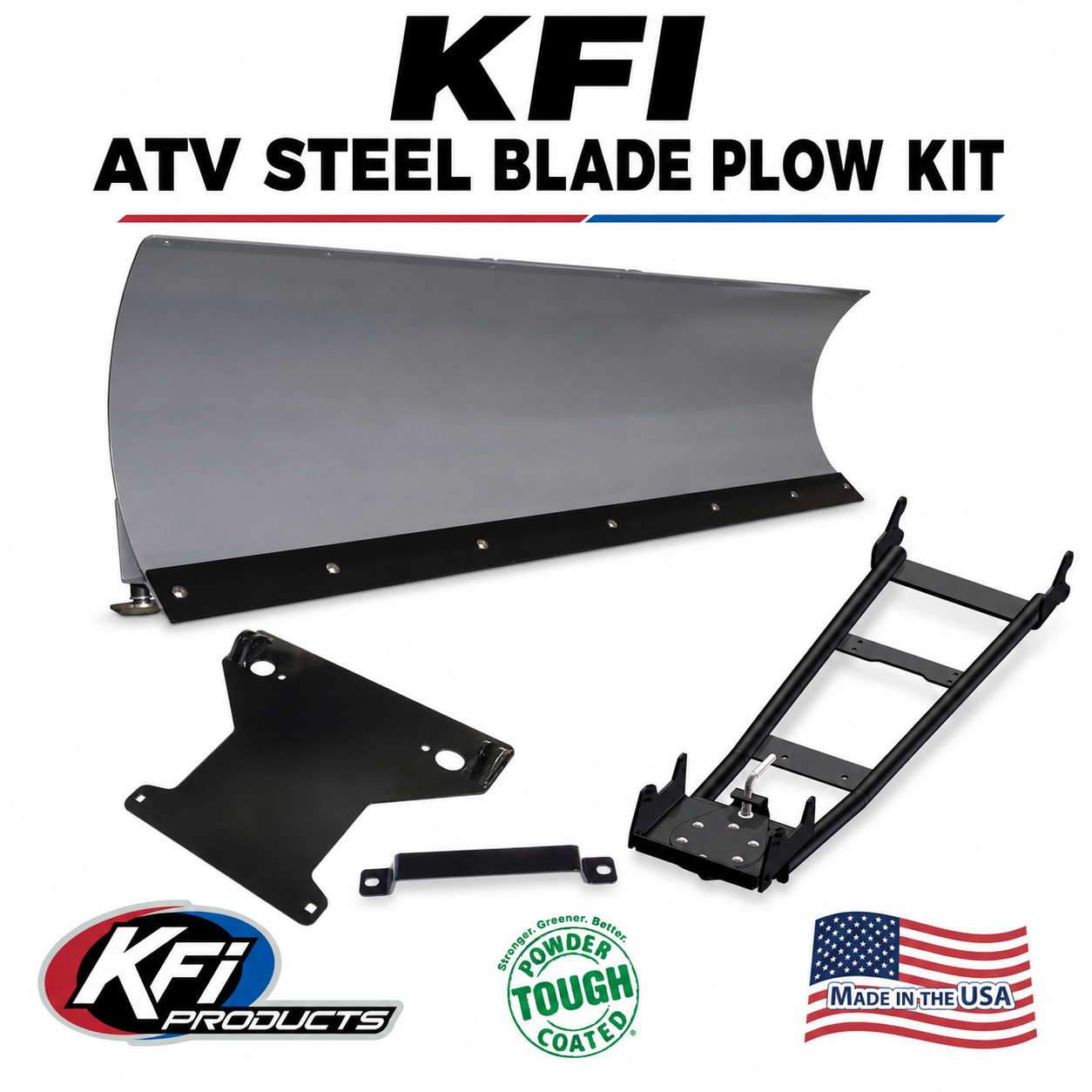

KFI SNOW PLOW KIT \'09-26 SUZUKI 500 King Quad AXI - 54\" Steel ATV Kit:
$678.85

KFI ATV Plow Mount Application Chart

Suzuki ATV Model *Year450 King Quad4x4/AXi‘07-10500 King QuadAXI‘09-26700 King Quad4x4‘05-07750 King Quad4x4/AXi‘08-26

Pro-SSteel Blades Specifications:

100% MADE IN USA, Pushes snow straight ahead or to the sidesup to 25 degrees, Added gussets for the wider width, The 66\" &72\" blades include a 7\" high 2-ply top rubber flap, Measures 16”Vertical blade face height with an approximate 21” height with snow flap,Fully-adjustable blade skids with bolt-on brackets, Heavy duty 3\"-diametergrade-50 steel skid plates, Blade Constructed of 11 ga steel, 3/16\" Grade50 Ribbing for a strong bolt-up to the Swivel Tube, Unlike all other Plowcompetitors our Plows are metal bead blasted before they are powdercoatedMetallic Silver for supreme durability, 2-Sided 3/16\" x3.00\" Grade 50 Steel Wear Bar, Wear Bar attached with Heavy Duty Grade 8Bolts, 2-Year KFI Warranty

Top of Form

Bottom of Form

ATVMid-Mount Push Tubes:

Mid-MountDesign with 40-50% more lift height than our competitors Mid-Mount System, 100%MADE IN USA, Heavy Duty 1-1/2\" 11 Gage Steel Tubing, Heavy Duty 1/4\"Thick 1-1/2\" Diameter Grade 50 Pivot Bushings, 6\" Diameter POMInjection Molded Rotator Bushing, Easy-Pull Pin Blade angle adjustment,Multi-position Plow Lift Bracket, 6 five degree blade pitch adjustments, 5blade angle positions that rotate the blade up to 25 Degrees, Unlike all otherPlow competitors our tubes are metal bead blasted before they are powder coatedfor the best possible finish prep. Powder Coated Black for supreme durability,Complete installation instructions included, All mounting hardware included, AlsoWorks with Cycle Country ATV Mid-Mounts, 2-Year KFI Warranty

ATVMid-Mount Plow Mount:

100% MADE INUSA, Designed for the #105000 ATV push tube withpin up widths of14.50\" (Center on Center) using 3/8\" Pin (see image example), Constructedof 3/16\" and 1/4\" Grade 50 steel, Unlike all other competitors mountsare metal bead blasted before they are powder coated for the best possiblefinish prep. Powder coated black for supreme durability. Very easy to install. Allmounting hardware included. Complete installation instructions included. Satisfactionguaranteed.
