KFI Assault Series Winch UTV 5000lbs Standard - AS-50X

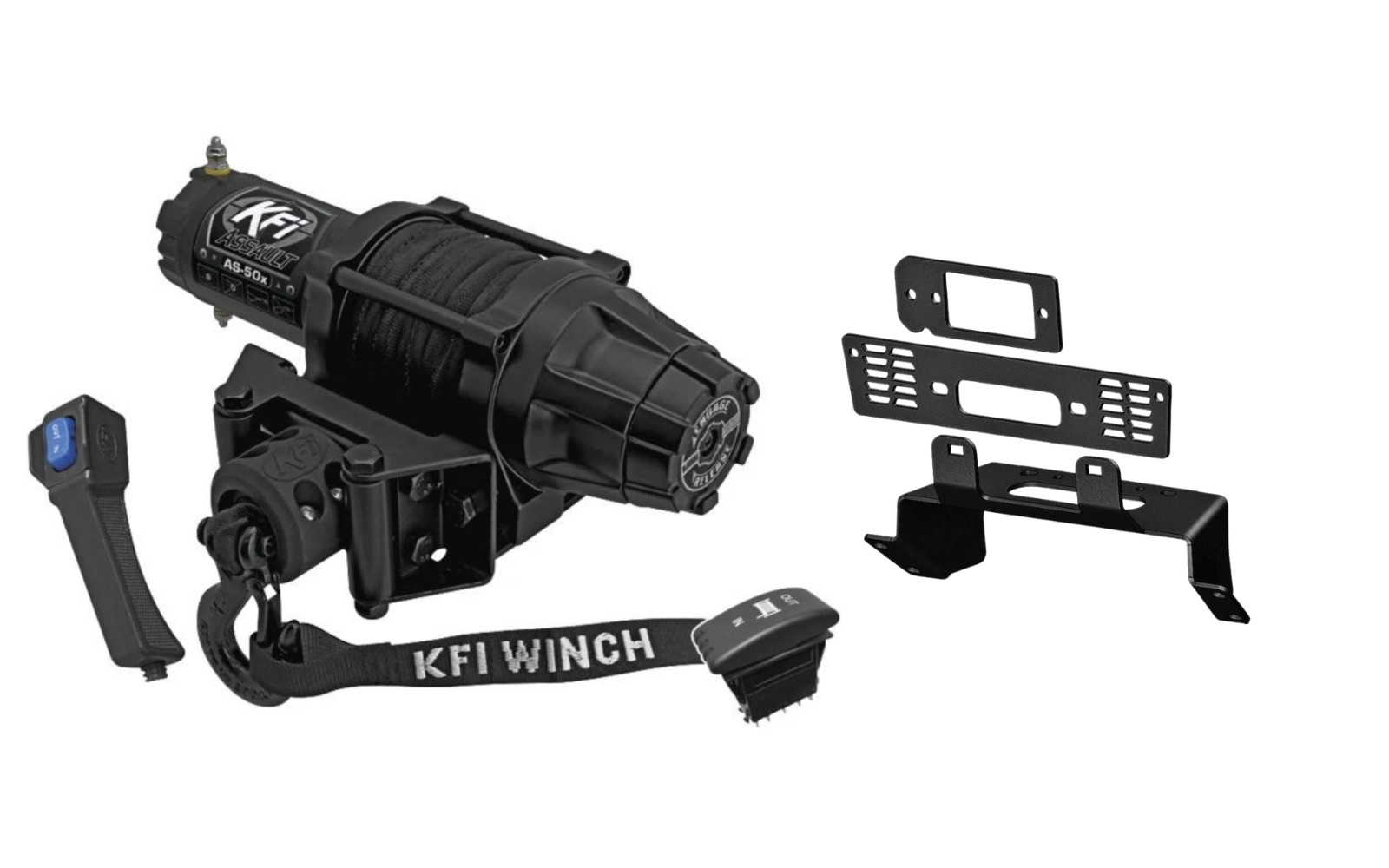

Whether its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation.This 5000lb ASSAULT Series winch features Synthetic Cable, Cable Hook Stopper, a dynamic and mechanical braking system, Water Resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty all metal turn clutch. It is also backed by a KFI Two Year Limited Lifetime Warranty. The KFI AS-50x Assault Winch comes with everything you need other than an ATV model specific winch mount. Everything shown is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount.
Included is our KFI Split Cable Hook Stopper(#ATV-SCHS)with the following benefits:
- Eliminates wear and tear on your rollers from the hook with can cause cable wear.
- Eliminates hook clatter from going down the trail.
- Protects the winch motor and gears from pulling the cable in too far and bottoming out on the rollers.
- Keeps tension on the hook to eliminate the cable becoming loose.
- Also has slits designed in it to work as an anti-kick back for the cable if your cable was to snap.
- Looks great.
- Once you have one, everyone else that you ride with, will want one
AS-50x SpecificationsModelAS-50x AssaultSeriesRated Line Pull5000 lbs.Motor12V DC, 1.22 hp Permanent MagnetGear Ratio180:1Gear/TransmissionAll-metal Planetary Gear DriveBrakeDynamic and MechanicalClutch (free spooling)All Metal Cam Activated FreespoolDrum Size1.75\" (D) x 3.19\" (L)Synthetic Cable15/64\" (D) x 38\' (L) Smoke colorFairleadMulti-directional POM RollerControlDeluxe Dash-Mounted Dash-Rocker Control Switch and a Heavy Duty Corded Remote SwitchWinch Dimensions13.9\" L x 4.45\" D x 4.76\" HMount PlateFairlead Mount Only(A Model Specific Mount is necessary for your make and model ATV)Mounting Bolt Pattern3.00\" x 4.875\" (4-Hole)Recommended Battery12 Amp/hour minimumWarrantyTwo Year Limited LifetimeWinch Weight26.0 lbs. (complete kit)CertificationCE Certified
KFI Application ChartPolaris Mid-Size Ranger *YearRanger 400(Mid-Size)\'10-14Ranger 500(Mid-Size)\'11-13Ranger 500(Mid-Size)\'17-22Ranger 570(Mid-Size)\'14-21Ranger 800(Mid-Size)\'13-14Ranger Crew 500(Mid-Size)\'11-13Ranger Crew 570(Mid-Size)\'14-21Ranger EXT(Mid-Size)\'15-16Ranger EV(Mid-Size)\'10-22Polaris Full-Size Ranger *YearRanger 500\'09-10Ranger 570(800 Body Style / Round Tube Frame)\'16-25Ranger 7002009Ranger 800\'10-14Ranger 800 6x6\'10-16Ranger Crew 570**(800 Body Style / Round Tube Frame)\'17-25Ranger Crew 800\'10-13Ranger Crew 800**2014Ranger Crew Diesel**(900)\'12-14Ranger Crew Diesel(900)\'11-14Ranger XP 7002009Ranger XP 8002012
*= Requires the purchase of#UTV-WEK(wire extension kit) Due to location of battery on Ranger.
