Fitment / Application:
Direct Fit for 1973 - 1991 Chevy & GMC Square Body Trucks Specifically engineered for C10, K10, C20, K20, C30, K30, Suburban, and Blazer models. Perfect for LS/LT engine swaps ( LS1, LS3, LS7, LT1, L86, etc. ) - no modifications to your factory fuel tank required.

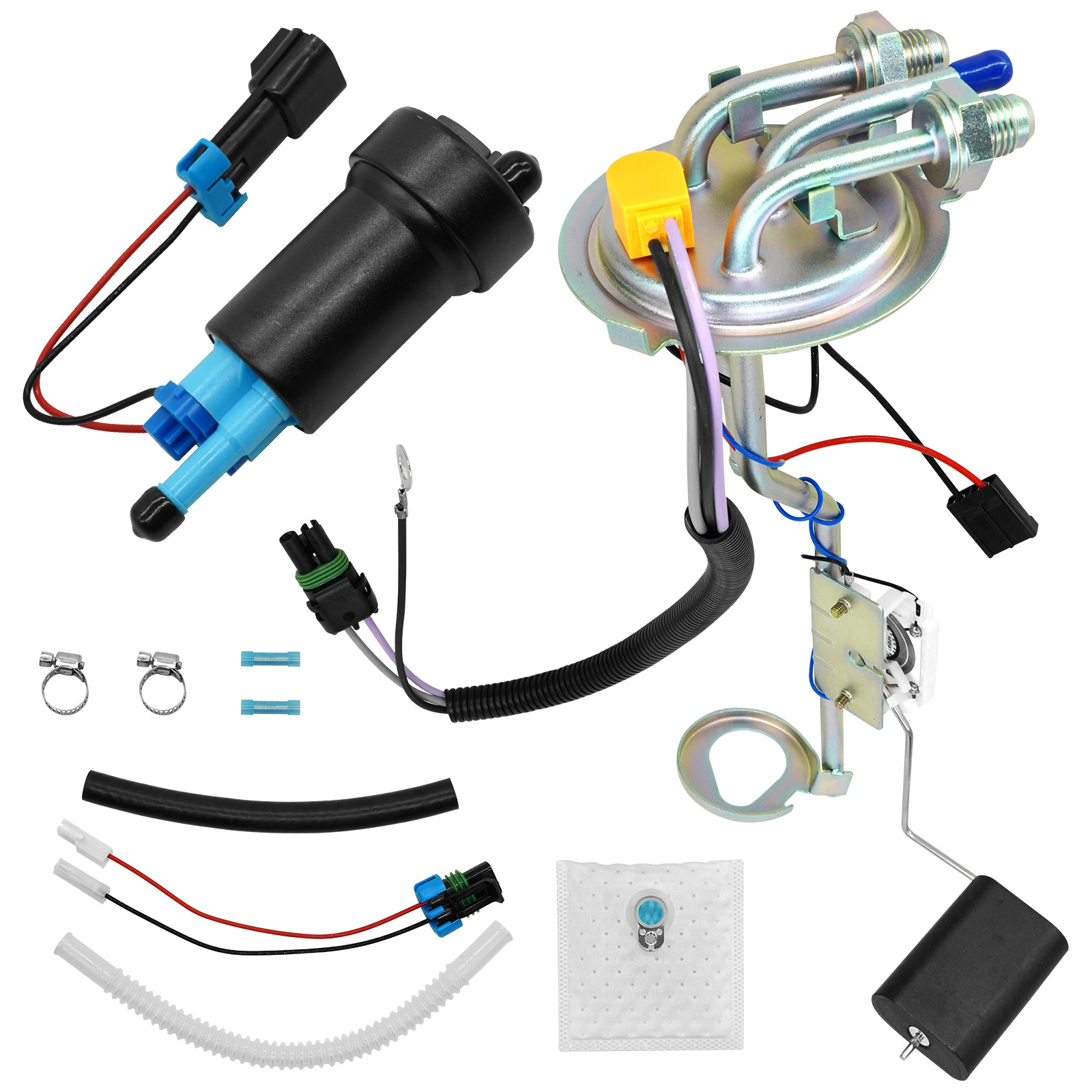

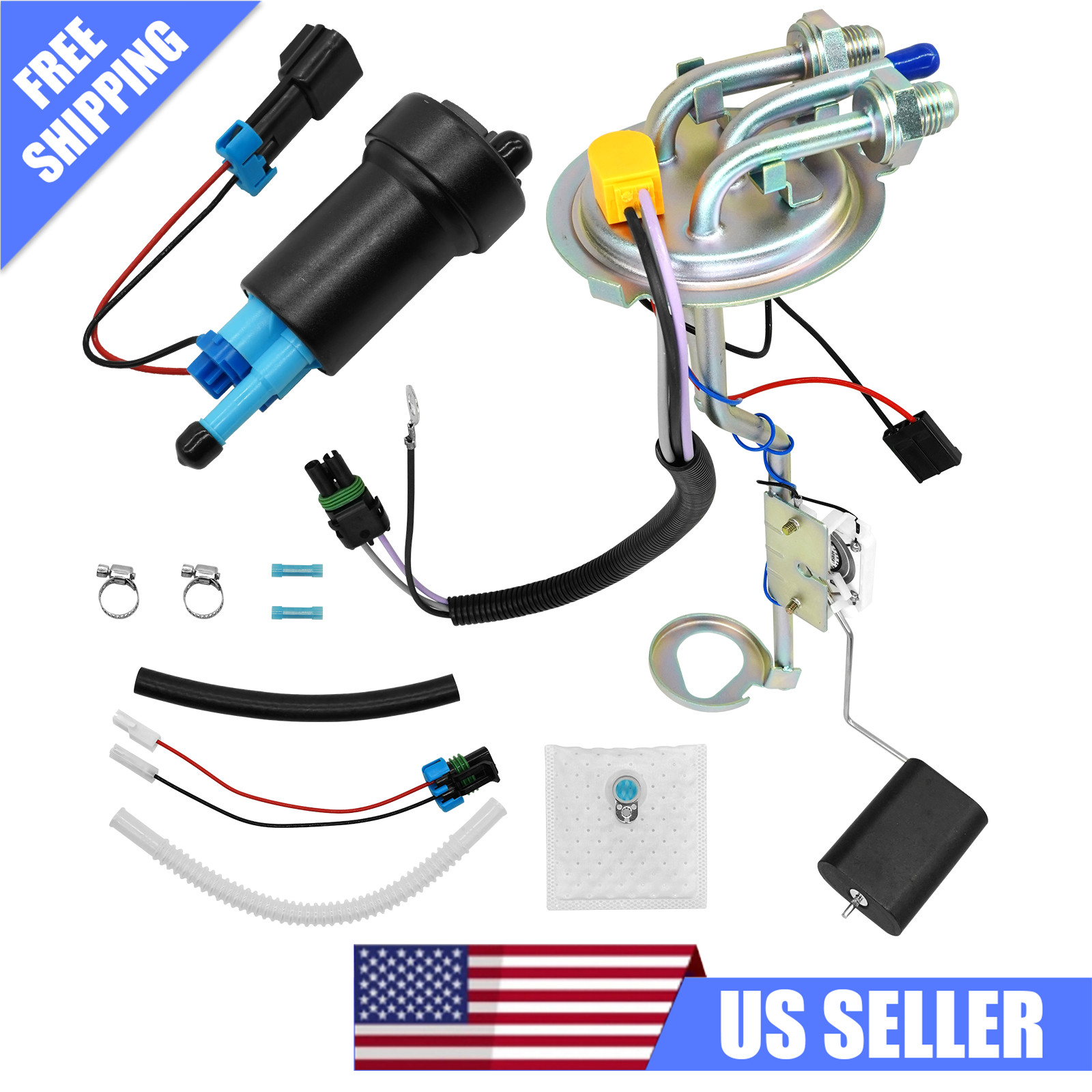

Package Included:
• 1x Fuel Pump Hanger & Sending Unit Assembly • 1x In-Tank Electric Fuel Pump • 2x Wiring Pigtail Adapters
• 2x Stainless Steel Hose Clamps
• 2x Fuel Line Barbed Fittings
• 1x Installation Seal Kit • 1x Submersible High Pressure Fuel Hose • 1x Fuel Level Sender Float
Features:
High Flow 450LPH
LS/LT Swap Ready
E85 Ethanol Compatible
Direct Fit Installation
AN Fitting Included
Premium Quality & Durable
More Information:
• Wiring: 14 gauge 255LPH pigtail included. Plug and play adapter harness included for use with AC Delco EP381 fuel pump.
• Submersible high pressure rubber hose included, compatible with gasoline and ethanol based fuels such as E85.
• Updated bulkhead connector supports up to 20 amps. NOTE: Not compatible with TI Automotive F90000267, F90000274, F90000285, F90000295 fuel pumps that draw over 20 amps. For these pumps, our race-style hanger is required.
• Safely perform LS/LT engine swaps on Square Body pickups without compression fittings. Works with EFI LS/LT (L83/ L86/LT1) swapped applications rated at 58psi.
• Eliminates failure-prone splices and solder joints inside the fuel tank for improved reliability and longer service life.
