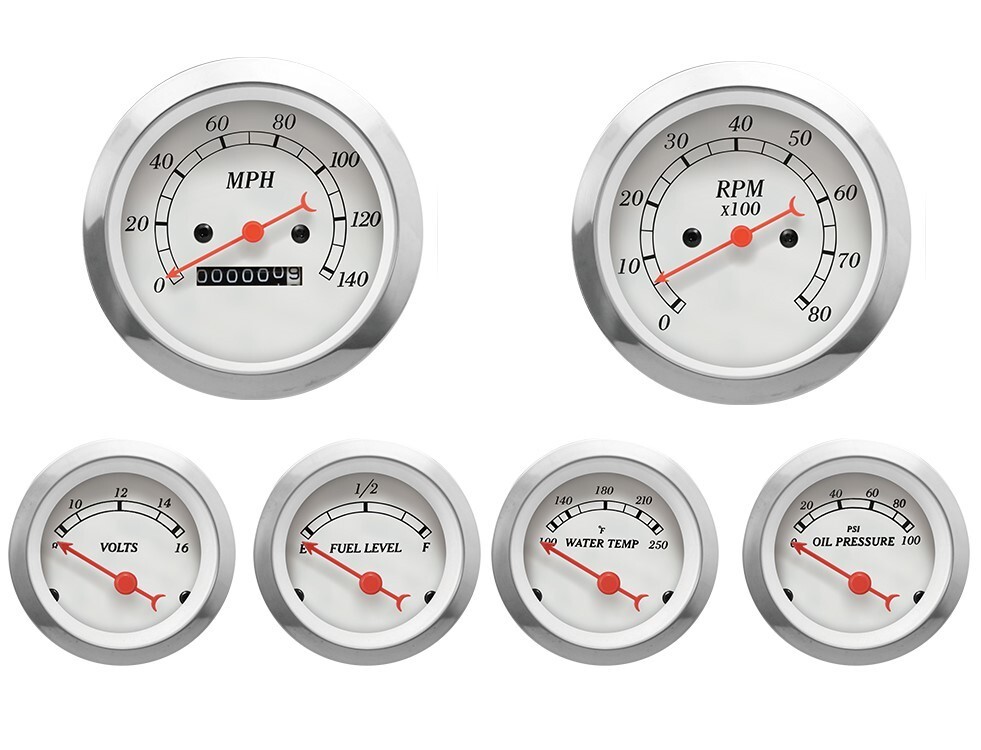

MOTOR METER RACINGCLASSIC SERIES6 Gauge Set

• Swiss Stepper Motor Movement.
• Analog Display Speedometer &Odometer.
• Convex Glass Lens Surface, Stainless Steel Bezel &Plastic Housing.
• White Gauge Faceplate, Red Needle.
• Light Bulb Illumination.
• Speedometer Cable Thread Size: 5/8\"-18.
• Tachometer Fits Any 1 to 9 Cylinder Gas Powered Engine.
• Gauge Set Requires 12 Volt Negative Ground Systems.

• Volt Gauge
• Sizes: 52mm (2-1/16\")
• Measuring Range: 8 - 16 (V)
• Sweep: 90 Degree
• Fuel Level Gauge
• Sizes: 52mm (2-1/16\")
• Measuring Range: Empty - Full
• Resistance: 240 (E) - 33 (F)ohms
• Sweep: 90Degree
• With Fuel Level Sender
• Water Temperature Gauge
• Sizes: 52mm (2-1/16\")
• Measuring Range: 100 - 250 (°F)
• Sweep: 90 Degree
• With Water Temperature Sensor (Thread Size: 1/8 NPT)
• Oil Pressure Gauge
• Sizes: 52mm (2-1/16\")
• Measuring Range: 0 - 100 (PSI)
• Sweep: 90 Degree
• With Oil Pressure Sensor (Thread Size: 1/8 NPT)
• Mechanical Speedometer
• Sizes: 85mm(3-3/8\")
• Measuring Range: 0 - 140 (MPH)
• Ratio: 1000 PRM = 60 MPH
• Thread Size: 5/8\"-18 UNF
• Sweep: 270 Degree
• Electrical Tachometer
• Sizes: 85mm(3-3/8\")
• Measuring Range: 0 - 8000 (RPM)
• Sweep: 270 Degree
• 6 Gauges
• Water Temperature Sensor (Thread Size: 1/8 NPT)
• Oil Pressure Sensor (Thread Size: 1/8 NPT)
• Fuel Level Sender (240 - 33 ohms)
• Power Harness
• Mounting Hardware
• Filter x 2 (For Tachometer)
• Installation Instructions
KINDLY NOTICE
• If Tachometer Readout Inaccurate In Idle or Keep Bouncing When Engine Accelerating, Please Install Our Tachometer Filter.
• Red Needle Can Substitute For Black Needle.
• CLASSIC SERIES Mechanical 6 Gauge Set (Black Needle):IG6GSETMSP-CGBN (MPH)
• Speedometer, Fuel Level Gauge, Water Temperature Gauge & Oil Pressure Gauge Can Substitute For DifferentUnit, Please Contact Usor Note on Order.
• Speedometer: 0 - 220 (KMH) / 0 - 140 (MPH).
• Fuel Level Gauge: 240 - 33 ohms / 0 - 90 ohms, Also Substitute Fuel Level Sender.
• Water Temperature Gauge: 40 - 120 (Celsius) / 100 - 250 (Fahrenheit).
• Oil Pressure Gauge: 0 - 7 (BAR) / 0 - 100 (PSI).
MOTOR METER RACING GUARANTEE
• One Year Limited Warranty For Non-Human Factor Damage & Free Lifetime Technical Support.
• 100% Made in Taiwan.



---
