Fitment List
Fit for 2007-2017 Fat Boy FLSTF
Fit for 2007-2017 Fat Boy Lo FLSTFB
Fit for 2006-later Night Train FXSTB
Fit for 2006-later Softail Custom FXSTC
Fit for 2006-2017 Softail Standard FXST
Fit for 2006 later Springer Softail FXSTS
Fit for 2007-later Softail Cross Bones FLSTSBNote
It will fit models with 200mm rear tire fender only and not fit the 150mm fender.
Specifications
Pad dimensions: 13\"x7.5\"x2\"
Pad adjustable height range: 4\"
Luggage rack dimensions: 8.2\"x7\"Foldable: Passenger / Driver backrest
Driver backrest height range: 12\"-17\"Passenger backrest height range: 21\"-30\"
Backrest adjustable height range: 9 gears & 5\"
Bracket material: Steel & aluminum
Pad cushion material: PU leather & polyurethane foam
Package

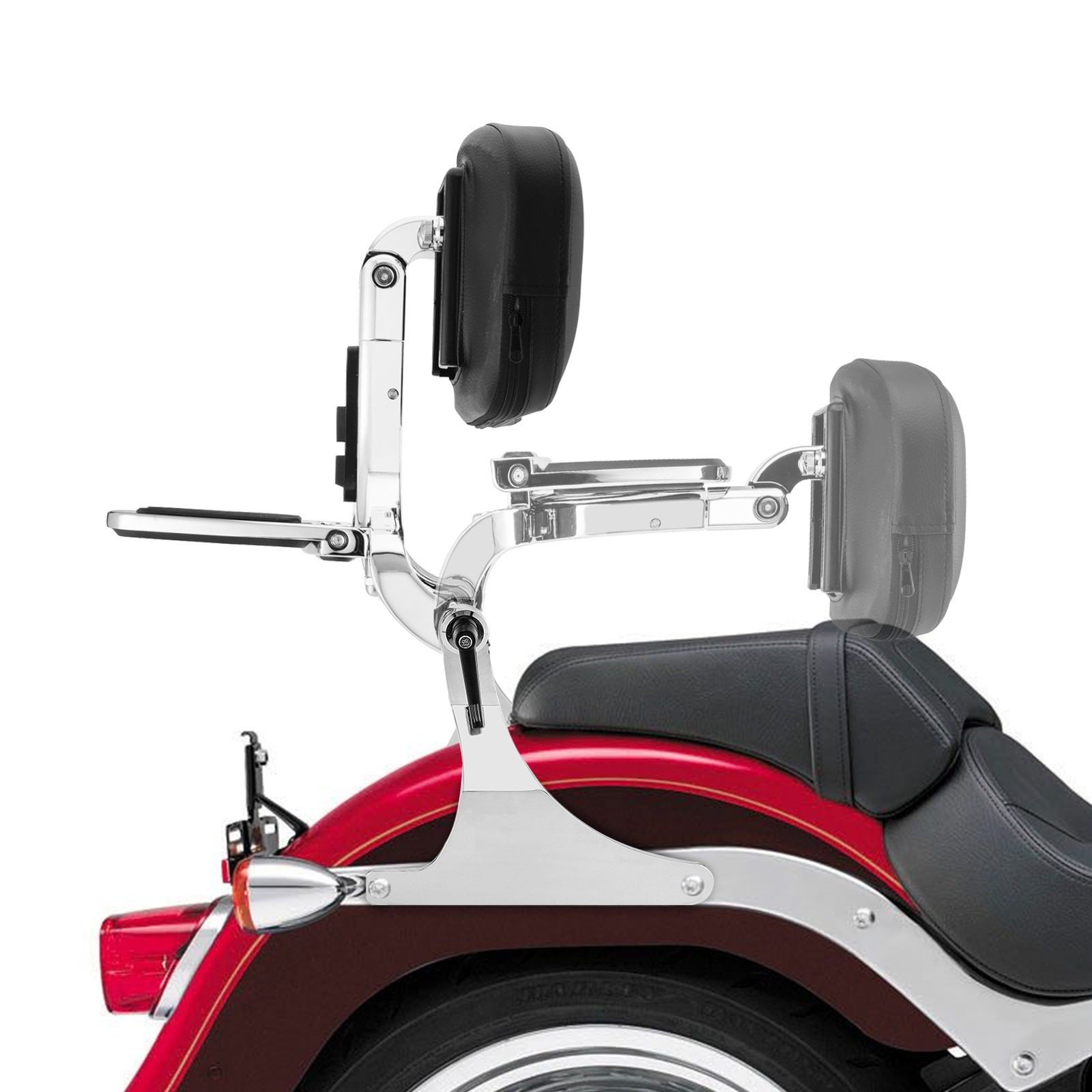

Passenger driver backrest + luggage rack + mount kit (Does not include the screws)
The installation only needs to use the factory screws to install directly behind the passenger seat.
