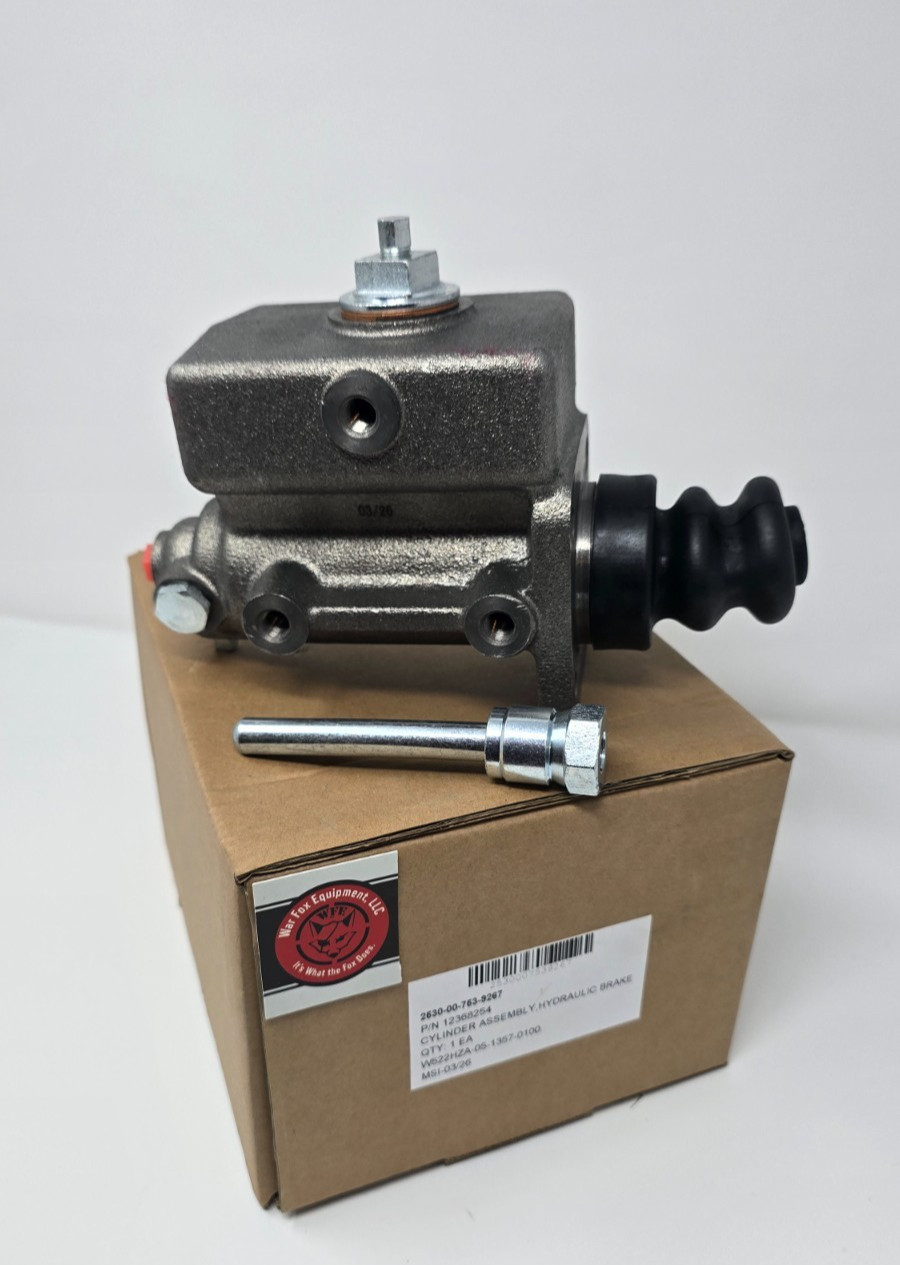

You are looking at a new production brake \"master cylinder\" for the US military M35 series tactical truck. This is an OEM fit to replace your rusting or failed unit accessible by the panel on the floorboard inside the cab of your vehicle. Each master cylinder comes with a rubber dust boot and push rod. Ready for install.
Make sure to inspect your air pack and wheel cylinders when servicing your master cylinder! We stock those too!Fits: M35, M35A1, M35A2, M35A3, M109, M109A1 - M109A3, M36, M36A1, M36A2,M36A3, M109A4, M275, M342, etc.
Technical Data| NSN WIDTH3.875 INCHES NOMINALOVERALL HEIGHT6.000 INCHES NOMINALEXTENDED LENGTH9.625 INCHES NOMINALCOMPRESSED LENGTH8.188 INCHES NOMINALBODY MATERIALANY ACCEPTABLEBORE DIAMETER1.750 INCHES NOMINALFIRST PISTON ROD END STYLE7 EXTERNAL THREADEDFIRST END OUTSIDE DIAMETERANY ACCEPTABLEFIRST END EXTERNAL THREAD LENGTHANY ACCEPTABLEFIRST PISTON ROD END THREAD SERIES DESIGNATORUNFFIRST PISTON ROD END THREAD DIAMETER0.562 INCHES NOMINALFIRST PISTON ROD END THREAD QUANTITY PER INCH18FIRST PISTON ROD END THREAD CLASS2BFIRST PISTON ROD END THREAD DIRECTIONRIGHT-HAND(NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITYNOT INCLUDED(NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITYNOT INCLUDEDMOUNTING TYPE AND LOCATIONFLANGE PISTON ROD ENDMOUNTING PROVISIONUNTHREADED MOUNTING HOLESMOUNTING PROVISION ARRANGEMENT STYLE19 FOUR HOLE RECTANGULARLONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS2.500 INCHES NOMINALLONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS2.406 INCHES NOMINALMOUNTING FACILITY DIAMETER0.406 INCHES NOMINALPORT LOCATION AND QUANTITY3 CYLINDER HEAD ENDPORT STYLE6 FLAREPORT THREAD SERIES DESIGNATORUNFPORT THREAD DIAMETER0.500 INCHES NOMINALPORT THREAD QUANTITY PER INCH20PORT THREAD CLASS2BSEAT ANGLE IN DEGANY ACCEPTABLETEMP RATINGNOT RATEDRESERVOIR TYPEINTEGRALACTUATION METHODDIRECTSTOPLIGHT SWITCH THREAD SERIES DESIGNATORNPTFSTOPLIGHT SWITCH NOMINAL PIPE THREAD SIZE0.125 INCHESFEATURES PROVIDEDFILLER PLUG AND RUBBER BOOTSPECIAL FEATURESPISTON AT ROD END THD FEMALE,1.000 IN. DEEP,6 THD MTG HOLES 3 ON EA SIDE OF CYLINDER
