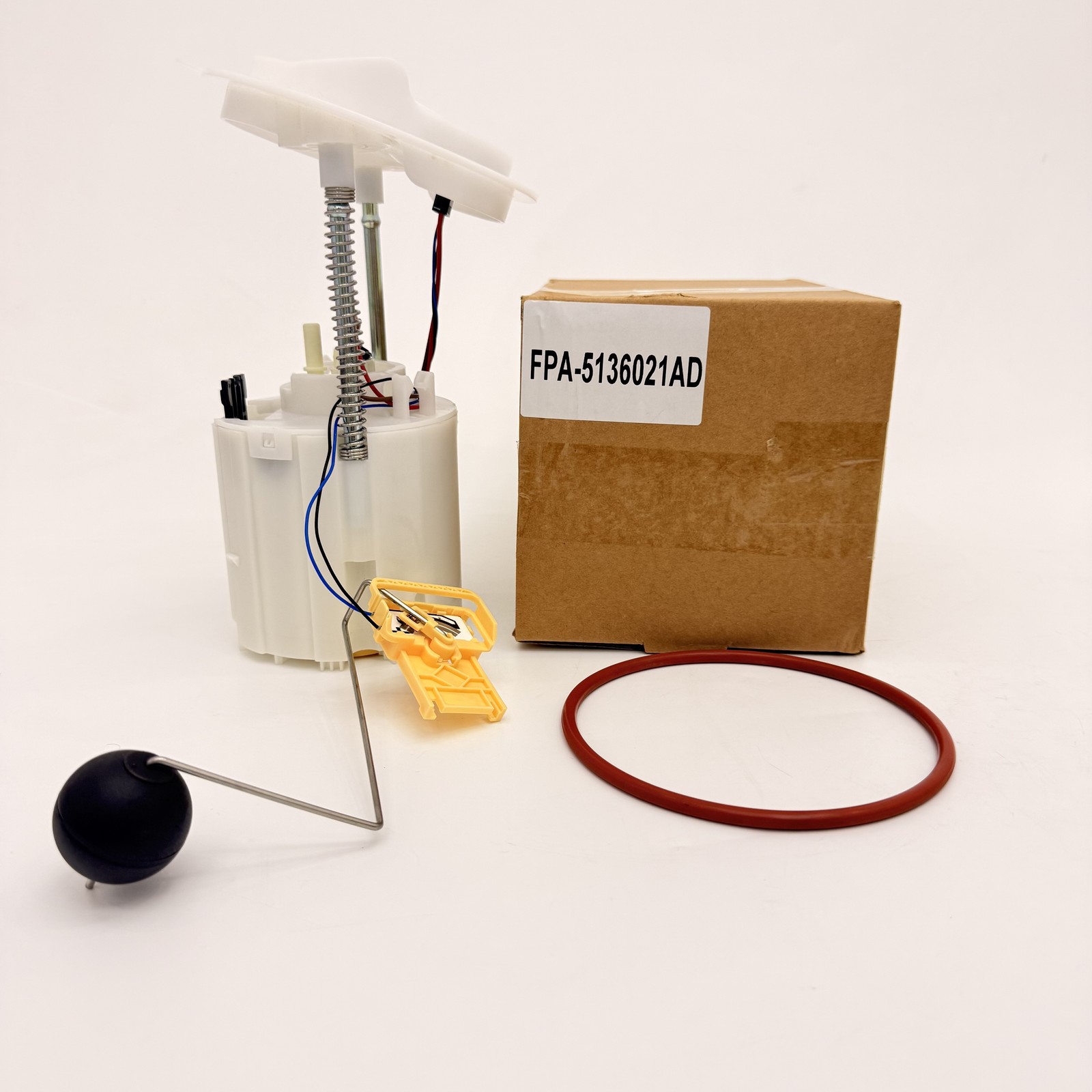

⛽ Mopar Fuel Pump / Level Unit Module OEM# 5136021ADItem Specifics / Complete Product Specifications

Brand: Aftermarket OEM Direct Replacement
OEM / MPN: 5136021AD
Superseded / Related OE: 5136021AE
Product Name: Fuel Pump / Level Unit Module
Product Category: Complete Fuel Pump Module Assembly
Vehicle Type: Passenger Car
Vehicle Brands: Chrysler / Dodge
Fuel Pump Position: Left / Driver Side
Installation Location: In-Tank
Fuel System: Electronic Fuel Injection
Pump Type: Electric Fuel Pump Module
Fuel Type: Gasoline / Petrol
Tank Application: 18-Gallon Fuel Tank
Replacement Type: Direct OEM Number Replacement

OEM Description

5136021AD is identified as a Fuel Pump / Level Unit Module. Later replacement and aftermarket catalogs cross-reference this number with 5136021AE, 5136021AF, 5136021AG and other equivalent aftermarket references.

⚠️ Original Mopar catalog data may show a narrower OE listing than aftermarket catalog coverage. The expanded 2005–2010 fitment below is based on aftermarket fuel-pump catalog and cross-reference data and should be confirmed against the original OE number, tank size, vehicle configuration, and installation position before purchase.

Electrical / Performance Specifications

Operating Voltage: 12V vehicle electrical system
Fuel Pump Pressure: Not officially confirmed by Mopar public parts catalog
Fuel Flow Rate: Not officially confirmed
Rated Current: Not officially confirmed
Motor Power: Not officially confirmed
Fuel Level Sender: Integrated with fuel pump / level unit module
Installation: In-Tank
Position: Left / Driver Side
Tank: 18-Gallon Application

⚠️ Do not advertise specific fuel pressure, flow rate, current, or motor wattage as OEM specifications unless supported by an actual manufacturer technical datasheet or test report.

✨ Product DescriptionComplete In-Tank Fuel Pump Module

5136021AD is a complete in-tank electric fuel pump and fuel level module used on selected Chrysler and Dodge gasoline vehicles.

The assembly combines the electric fuel pump function with the fuel level sending function and installs inside the fuel tank.

Stable Fuel Delivery

The electric fuel pump supplies fuel from the tank to the engine fuel system to support:

• Engine Starting

• Normal Fuel Delivery

• EFI Fuel Supply

• Continuous Engine Operation

Integrated Fuel Level Function

The module incorporates the fuel level unit/sender function, allowing the vehicle fuel gauge system to monitor the fuel level.

OEM Number Replacement

Original / Related OE Core Product Functions

1. In-Tank Fuel Supply

2. Electric Fuel Pump Operation

3. Fuel Level Sending

4. EFI Fuel Delivery

5. Driver-Side Fuel Pump Module Replacement

6. OEM-Style Installation

⚠️ Common Fuel Pump Failure Symptoms

A worn or failing fuel pump module may cause:

• Hard Starting

• Extended Cranking

• Intermittent No-Start

• Engine Stalling

• Hesitation During Acceleration

• Poor High-RPM Fuel Delivery

• Engine Cutting Out Under Load

• Reduced Engine Performance

• Abnormal Fuel Pump Noise

• Incorrect Fuel Gauge Reading

• Insufficient Fuel Pressure

⚠️ These symptoms can also be caused by wiring, relays, fuel filters, fuel pressure regulators, injectors, or other fuel-system components.

🔁 OE / Cross Reference NumbersChrysler / Mopar Cross Cross-reference numbers are provided for identification and catalog reference. They do not independently guarantee identical configuration on every vehicle.

🚗 Complete Compatible Vehicle FitmentChrysler 300

2005–2010 Chrysler 300

Applicable gasoline engine references include:

• 2.7L V6

• 3.5L V6

• 5.7L V8

• 6.1L V8 on applicable Left / Driver Side
  Tank: 18-Gallon Application

  Dodge Challenger

  2009–2010 Dodge Challenger

  Applicable gasoline engine references include:

  • 3.5L V6

  • 5.7L V8

  Installation: Left / Driver Side
  Tank: 18-Gallon Application

  Dodge Charger

  2006–2010 Dodge Charger

  Applicable gasoline engine references include:

  • 2.7L V6

  • 3.5L V6

  • 5.7L V8

  Installation: Left / Driver Side
  Tank: 18-Gallon Application

  Dodge Magnum

  2005–2008 Dodge Magnum

  Applicable gasoline engine references include:

  • 2.7L V6

  • 3.5L V6

  • 5.7L V8

  Installation: Left / Driver Side
  Tank: 18-Gallon Application

  The expanded fitment is supported by aftermarket fuel-pump catalogs covering 2005–2010 Chrysler 300, 2009–2010 Dodge Challenger, 2006–2010 Dodge Charger, and 2005–2008 Dodge Magnum.

  📊 Fitment SummaryOE NumberBrandProduct NumberVehicleChassis / PlatformEnginePowerModel PlatformV6Not PlatformV6Not PlatformV8Not PlatformV8Not PlatformV6Not PlatformV8Not PlatformV6Not PlatformV6Not PlatformV8Not PlatformV6Not PlatformV6Not PlatformV8Not specified2005–20085.7L⚠️ Important Non-Fit Reminder

  • Verify the original OE number before purchase.

  • Verify the 18-gallon fuel tank configuration.

  • Verify left / driver-side installation position.

  • Do not determine compatibility solely by vehicle model or engine displacement.

  • 2.7L, 3.5L, 5.7L and 6.1L vehicles can have different fuel-system configurations.

  • AWD and RWD configurations may use different fuel-system components.

  • Complete fuel pump module ≠ pump motor/core only.

  • Similar-looking fuel pump modules may have different connectors, sender configurations, mounting arrangements, or fuel-line connections.

  • Later replacement numbers should be confirmed against the vehicle/VIN when necessary.

  🔧 Installation & Quality Information

  Before installation, compare:

  • OE Part Number

  • Vehicle Model

  • Model / RWD Configuration

  • Fuel Tank Capacity

  • Left / Driver-Side Position

  • Electrical Connector

  • Fuel Outlet

  • Fuel Line Connections

  • Mounting Flange

  • Overall Module Dimensions

  Professional installation is recommended. Always relieve fuel-system pressure and follow the vehicle manufacturer's fuel-system service procedures.

  📦 Package Contents

  Fuel Pump / Level Unit Module ×1

  Additional components such as:

  • Sealing Ring

  • Lock Ring

  • Fuel Filter

  • Wiring Harness

  • Fuel Hose

  • Electrical Connector

  should only be considered included if specifically shown or stated in the actual package.

  🚚 Shipping & Customer Service

  The fuel pump module should be securely packaged to protect the pump housing, electrical connector, fuel outlet, and level-sender components during transportation.

  For compatibility assistance, please provide:

  • Original OE Number

  • Vehicle / RWD

  • Fuel Tank Capacity

  • VIN when available

  • Photos of the original fuel pump module if necessary

  📌 Before Purchase Confirmation

  Required OE Number: 5136021AD

  Expanded Confirmed Catalog Fitment:

  • Chrysler 300 — 2005–2010

  • Dodge Challenger — 2009–2010

  • Dodge Charger — 2006–2010

  • Dodge Magnum — 2005–2008

  Engine Applications:

  • 2.7L V6

  • 3.5L V6

  • 5.7L V8

  • 6.1L V8 on applicable Chrysler 300 Position: Left / Driver Side
    Product Type: Complete Fuel Pump / Level Unit Module
    Fuel Type: Gasoline
    Installation: In-Tank
    Tank Application: 18-Gallon

    📌 Please confirm OE Number + Vehicle Model + Model Year + Engine + Fuel Tank Capacity + Driver-Side Position before ordering.







    ---
