These three plate timing tools are used to hold camshafts at TDC position when you time your Cadillac, Buick, Saturn, Pontiac, Chevrolet, etc.
Position two plates over the ends of the camshaft on the left and right side of the head to prevent rotation during timing chain service.
Designed to be oversized, which keeps them from being left on the engine accidentally.
2005-2006 Buick Lacrosse 3.6L vin 7
2004-2006 Buick Rendezvous 3.6L vin 7
2004-2011 Cadillac CTS, SRX and STS, GMC Acadia, Buick Lacrosse
2010-2011 Chevrolet Camaro
2014- Current Chevrolet Impala
2015 - Current Chevrolet Colorado
2015 - Current GMC Canyon
2011 Chevrolet Traverse
2007-2009 Saturn Aura, Pontiac G6
2007-2010 Saturn Outlook
2008-2009 Pontiac Torrent
2008-2011 Buick Enclave, Chevrolet Malibu and Equinox
2008-2010 Saturn VUE
Multiple Suzuki models

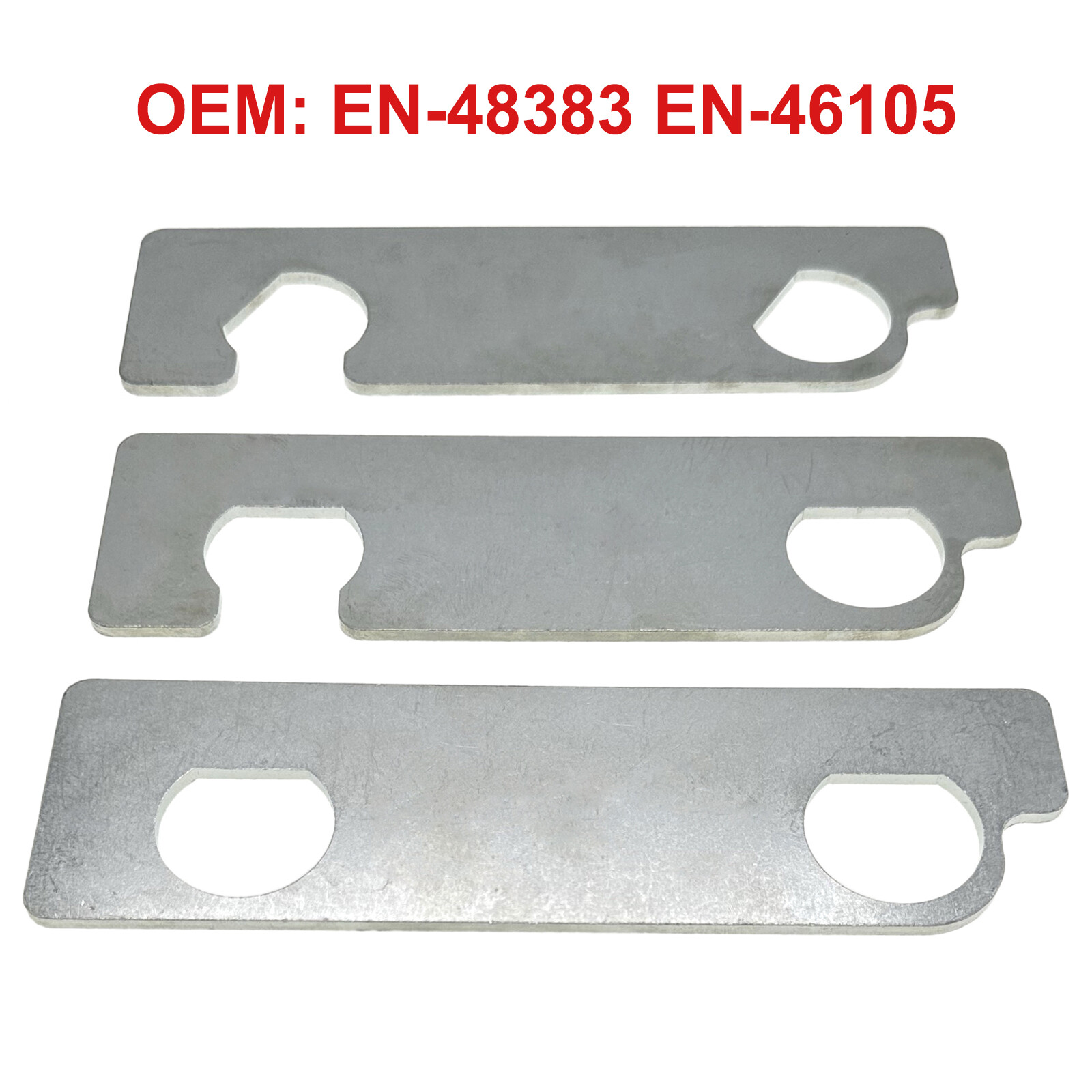

1. EN-48383-1 is installed to hold the cams on the left head.
2. EN-48383-2 is installed to hold the left head cams when the engine is at the second timing position to set the right head chain.
3. EN-48383-3 is installed on the right head cams.
3pcs Camshaft Holding Tool Set
