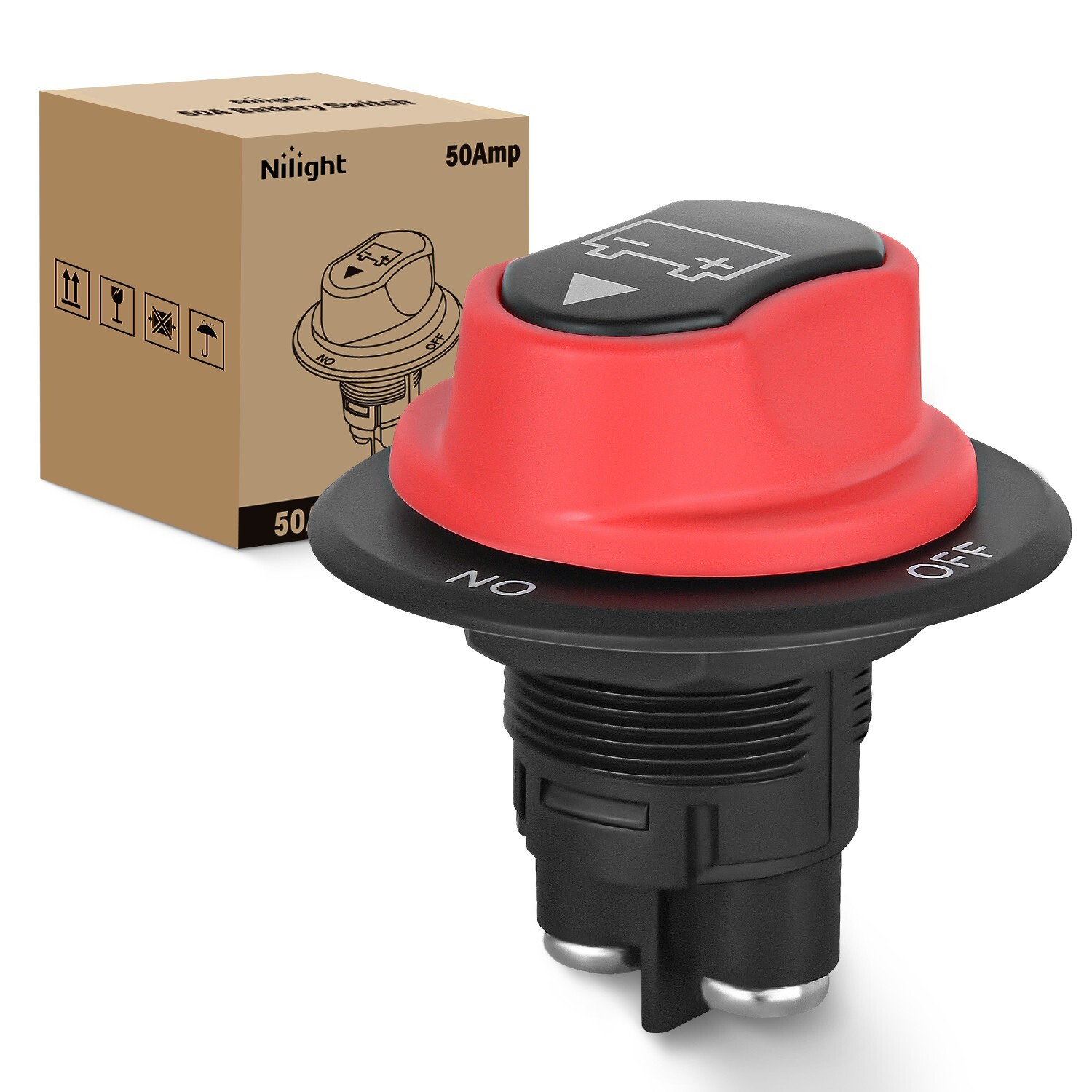

Product Description2P SPST OFF-ONNilight 12-48V 50A Battery Disconnect switch
On-Off, 2 positions
Continuous Rating : 50Amps 50VDC Max. Intermittent Rating : 75Amps Cranking Rating : 300 Amps 5 sec.
Termination Stud Size: M4xP0.7
Easy to Use, turning it on powers up your system, turning it off cuts the power.
This universal switch is suitable not just for cars, RVs, trucks, and marine boats but also for various electrical equipment, like flashing lights, chassis lights, fog lights, and dome lights.
- Heavy Duty: ABS plastic housing and premium metal terminal, durable made for safety use, not easy to aging and abrasion resistant, to ensure maximum strength and durability for long lasting usage.
- Purpose: eliminate any power from the battery when vehicle or boat is not in use, disconnects the battery safely. Avoid battery drain off.
- Operation: On-Off, 2 positions, Continuous Rating : 50Amps 50VDC Max. Intermittent Rating : 75Amps Cranking Rating : 300 Amps 5 sec.Termination Stud Size: M4xP0.7
- Compatible: used for 12 - 48VDC systems to isolate and secure the electrical system, can stand alone or be locked together with other switch.Widely used for cars, marine boats, RVs, campers, travel trailers, trucks, ATVs, UTVs, battery banks and other devices.
- Package include:1x battery switch with wiring diagram. 2 Year Warranty by Nilight.
Specification ParametersContinuous Rating:50Amps 50VDC MaxIntermittent Rating:75 AmpsCranking Rating:300 Amps 5 sec.Contact Resistance:50m ohm MaxInsulation Resistance:DC 500V 100M ohm MinDielectric Strength:AC 1000V 1 minute, DC 2000V 1 minuteOperation Temperature:-30℃ ～+60℃Switch Function:2P SPST OFF-ONFeatureSingle on-off switch
Clear on/off switch position indication.This battery disconnect switch features on-off switch knob; Switch on = Power; Switch off = No power.
Heay Duty Plastic Material
The cover made of PBT material and the name plate made of ABS material. Ensuring long-lasting pernaformance and reliability.
Easy operation use
Disconnect and reconnect battery by one simple knob .Disconnects the battery safely to eliminate power draw of battery when vehicle is not in use.
Copper Terminal Post
Copper with stainless steel terminals for improved continuity. Rust and corrosion resistant.
Universal for Car, Vehicle, RV and Boat, etc.
Wide Application
This universal switch is suitable not just for cars, RVs, trucks, and marine boats but also for various electrical equipment, like flashing lights, chassis lights, fog lights, and dome lights.
