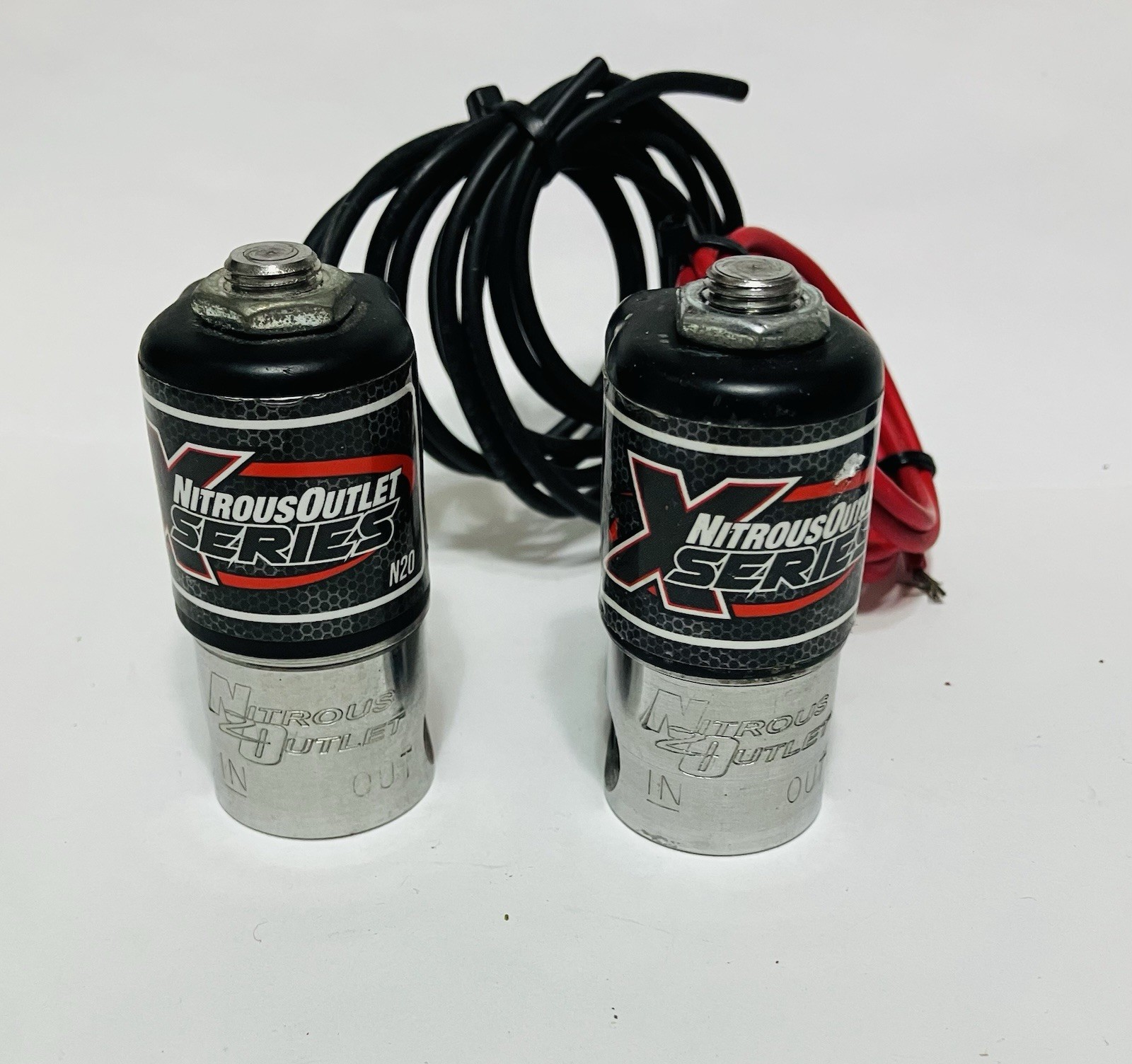

Nitrous Outlet Stainless Steel Nitrous and Fuel Solenoids
Solenoids feature a 2-port design - inlet and outlet. The inlet port is 1/8"NPT thread with a coarse screen filter to keep larger debris from entering the solenoid. The inlet port is clearly marked on the solenoid body with a laser etched IN. The .078" orifice outlet port is located on the opposite side of the solenoid and has 1/8"NPT threads. The outlet port is clearly marked on the solenoid body with a laser etched OUT.
Seal all fittings screwed into the solenoid body using blue Loctite 246.
Sleek Matte Black Body:
Solenoid Bases are stainless steel. Next in are the piston, return spring, and steel tower. Finally, the matte black powder coated steel can completes the unit and is topped off with one of our attractive solenoid stickers.
Light Weight and Max Performance:
The coil draws only 10amps, so 12ga wire for power and ground will be sufficient. Capable of flowing up to 200 horsepower!
