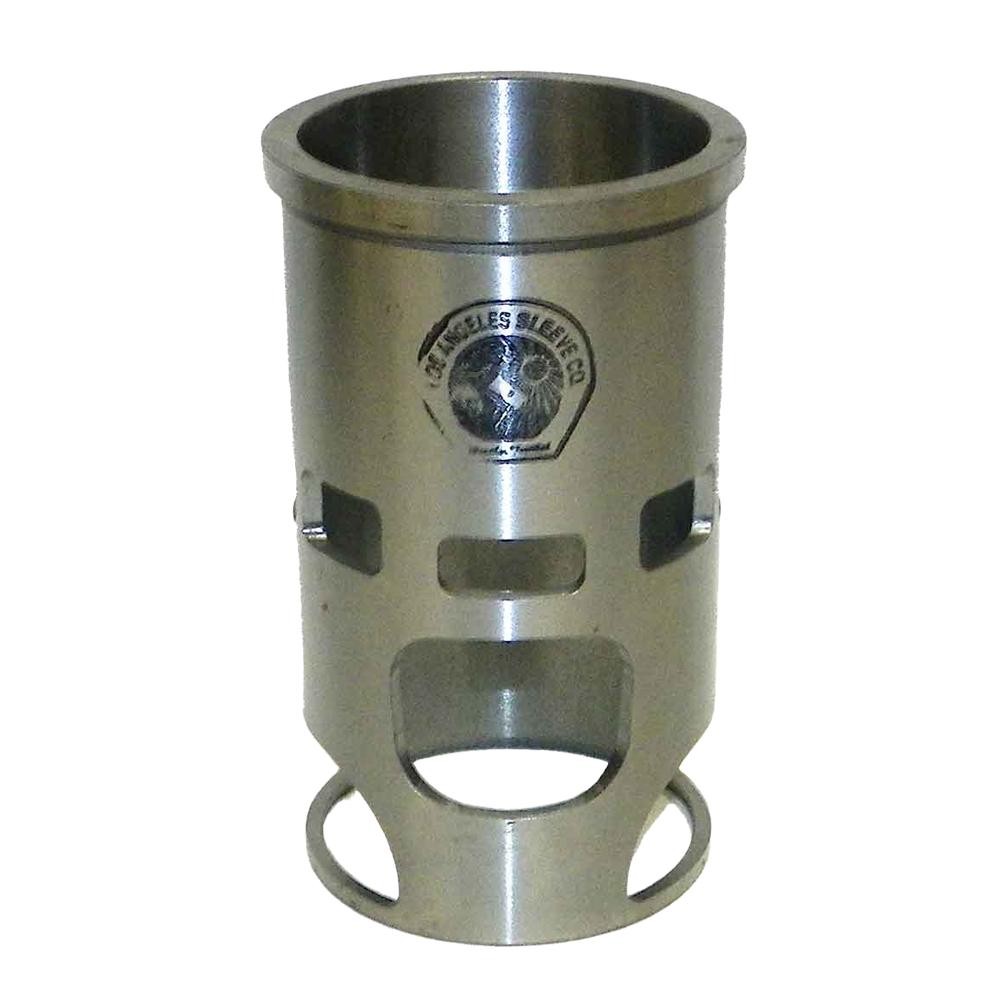

OEM Grade 1981-1984 Honda ATC250R 248cc 2-Stroke 70mm Bore Cylinder Sleeve
Replaces Part Numbers & Specifications
PART NUMBERS:
• L.A. Sleeve: H106SPECIFICATIONS:
• Product Type: Cylinder Sleeve (Liner)
• Material: Chromoly (Moly 2000 Iron Alloy), Centrifugally Spun-Cast
• Bore: 70.00mm Standard
• Engine: 248cc (247-248cc) 2-Stroke Air-Cooled Single-Cylinder
• Bore x Stroke: 70mm x 64.4mm
• Fits: Honda ATC250R 1981-1984 (Air-Cooled Generations Only)
• Note: Inside diameter must be bored and honed to size piston after installation
• Condition: NewHONDA APPLICATION:
• ATC250R 1st Generation (1981-1982) — Model Code 961
• ATC250R 2nd Generation (1983-1984) — Model Code 964
Product Notice
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
