Welcome to the UpBeat Store, your ultimate destination for top-tier automotive aftermarket installations, covering both OEM and aftermarket radios with precision and finesse. With extensive experience in the industry, trust us to elevate your driving experience seamlessly. Don\'t forget to follow us and visit frequently for the latest deals. Our dedicated customer service team is here to assist you promptly and professionally as we turn your automotive aspirations into reality!

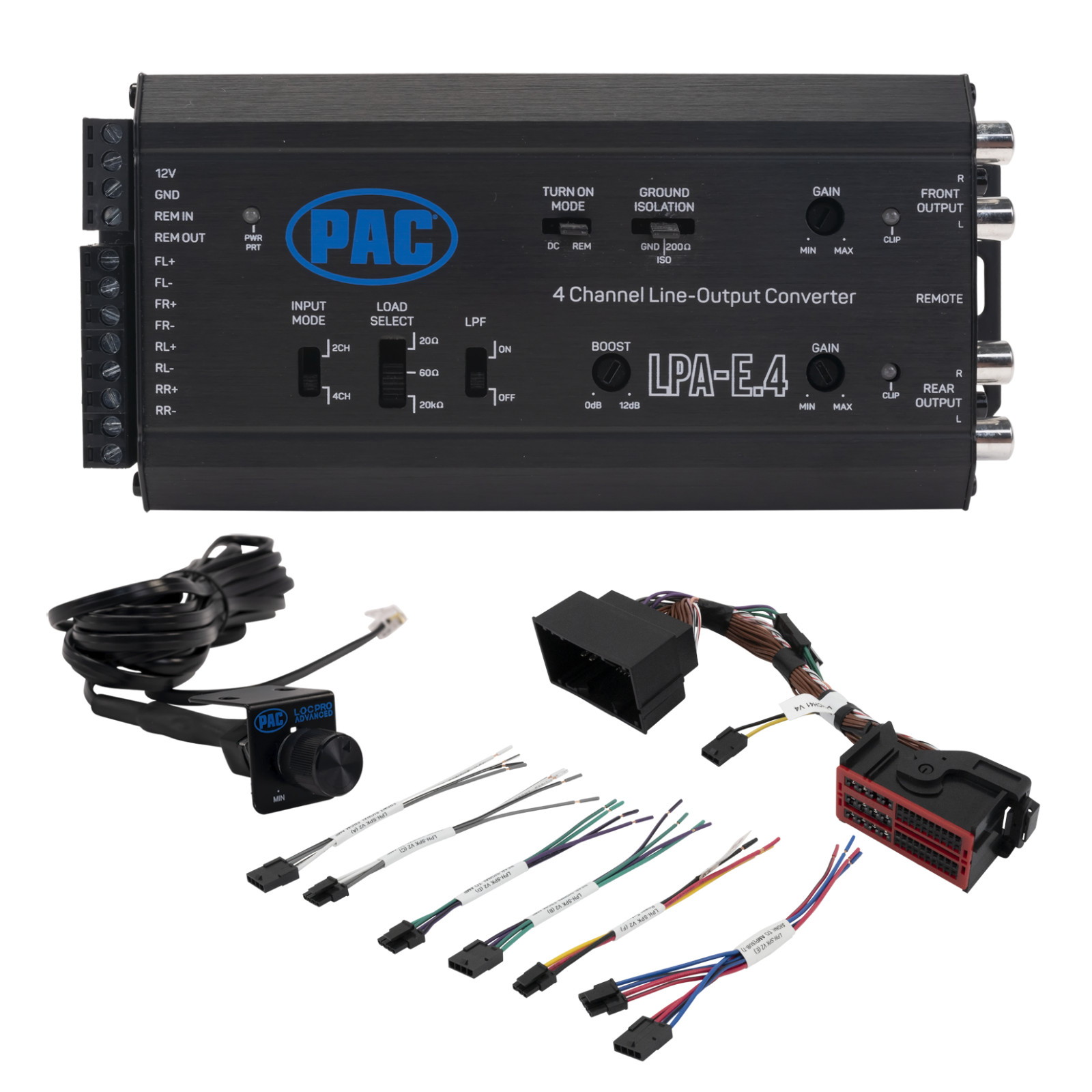

This listing includestwo new items, thePAC LPA-E.4advanced4-channelactiveline output converterwith remote control, and thePACLPHCH41 LocPRO Advanced T-Harness,the perfect 4-channelinstallation combo for aftermarket amplifiers onselectnon-amplified2013-2023Chrysler, Dodge, Jeep and RAM vehicles with52-Pinradio connector.
The LPHCH41 makes amplifier installation a lot easier by givingyou access to the speaker-level output signals from your Chrysler, Dodge andJeep factory radio. You can use thisT-harness to connect to an amplifieror signal processor with speaker-level inputs, or to a line output converterwith an amp.
PAC designed this vehicle-specific T-harness to work with their LPA LocPRO Advanced line output converters, but it\'ll also work with almost any sound processor or line output converter, as well as most amplifiers with high-level inputs. The harness also supplies the connection wires for low-power constant 12 volts (fused for your protection), accessory power, ground, and remote turn-on leads for a system devicelike an active signalprocessor.
TheLPA-E.4is a 4 inputs and 4 outputs active line output converter that featuresincredible input power capabilities, enhanced output controls,and noise isolation countermeasures. Combined with the newest vehicle systems\'compatibility, these features are the gateway for your audio aspirations.
This converter lets you add an amp without affecting theexisting factory system— you justtap into the wires going to a pairof full-range speakers for the LPA\'s inputs. Selectable load resistance andground isolation options ensure trouble-free OEM integration. A gain controlwith a clip light adjusts the signal level for optimum strength and fidelity. Alow-pass filter and bass boost fine-tune the bass to sound its best.
What’s included?
- LPA-E.44-Channel line output converter
- LPA-REMBass levelWired remotecontroller(16.25\' cable attached)
- LPHCH41V5 Main 52-Pin wiring 8\"harness
- Clearly labeled pigtail harnesses
- LPH-CH41 V5-A Harness (front signal from amp)
- LPH-CH41 V5-B Harness (rear signal from amp)
- LPH-CH41 V5-C Harness (front signal to amp)
- LPH-CH41 V5-D Harness (rear signal to amp)
- LPH-CH41 V5-E Harness (sub signal to amp T-harness)
- LPH-CH41 V5-F Harness (power extension)
- Owner\'s manual
- LPH Harness Instruction Guide
Compatibility Requirements/Notes:
- 2021 Dodge Durango: Not compatible in models with 10.1\" screen
- This harness is designed to work onOEM NON-AMPLIFIED systems.Not compatible in vehicles equipped with a factory amplifier.
- Only compatible with vehicles equipped with a factory 52-pin radio connector.
- Four channel converter has 4 inputsand 4 outputs.
- The power and ground wires in this harness will only support a low-current accessory, like an active line output converter or digital signal processor, and should not be used to power an amplifier.
Vehicle Compatibility
Make
Model
Year
Chrysler
200
2015-2017
Chrysler
300
2015-2023
Dodge
Challenger
2015-2023
Dodge
Charger
2015-2021
Dodge
Durango
2014-2021
Dodge
RAM Truck
2013-2021
Jeep
Cherokee
2015-2021
Jeep
Compass
2018-2020
Jeep
Gladiator
2021-2023
Jeep
Grand Cherokee
2015-2021
Jeep
Renegade
2015-2023
Jeep
Wrangler (JL)
2018-2023
Jeep
Wrangler (4XE)
2018-2022
Jeep
Wrangler Unlimited (JL)
2018-2023
RAM
Ram Truck
2013-2021
***Only compatible with the above listed vehicles***
LPHCH41Features
- Simplifies audio equipment installation.
- Provides all necessary high-level input and speakers outputs for aftermarket audio equipment
- Can be used with: PAC LocPRO Line Output Converters, and Audiocontrol\'s Amplifiers, DSPs andLine Output Converters.
- Available 17\' extension for further flexibility(LPHEXT17)(Not included)
Aluminum housing40V / 400W maximum @ 20kΩLow pass filter (CH3/4 only)Bass boost (CH3/4 only)Dual variable gain controlsSelectable ground (common, ISO or 200Ω)Load selections: 20Ω, 60Ω, 20KΩClip indicatorTurn-on mode selection (remote and DC)9.5V Output voltageRemovable quick-connect with screw-type terminal.Wide range DC offset4 Channel IN & 4 Channel Out Unfiltered OR2 Channel IN & 4 Channel Out UnfilteredIndependent Clip indicator for Front and RearLPA-REM Bass level controller included Model Number:
LPA-E.4
Channels:
4 IN – 4 OUT
Operating Voltage:
9V – 16V
Max Input Level (20kHΩLoad Setting):
40V / 400W at 4 Ohms
Auto Turn On:
DC Offset / Remote
Output Voltage MAX at 13.8V:
9.5V RMS
Turn On Trigger (DC-Offset):
3V-7V
Load Input Impedance:
20Ω, 60Ω, 20kΩ
Output Impedance:
<120Ω
Variable Gain Adjustment:
-28dB-+1dB
Signal to Noise:
>110dBA at 6.4V Output
THD+N:
<0.01%
Input Sensitivity:
0.5V-20V
Frequency Response:
10Hz – 20KHz
Current Draw (Max):
110mA
Low Pass Filter:
<250Hz (Rear Channels)
Bass Boost:
0dB to +12dB
Clip Indicator:
Yes
Remote Level Control:
0dB - 30dB
Chassis Type:
Aluminum Extrusion
Terminal Gauge:
18AWG / Quick Connect
Additional Notes
We recommend having a professional certified technician handle the installation. For any questions or concerns about the product, please contact us through the \"Contact Seller\" feature for technical support or customer assistance.
