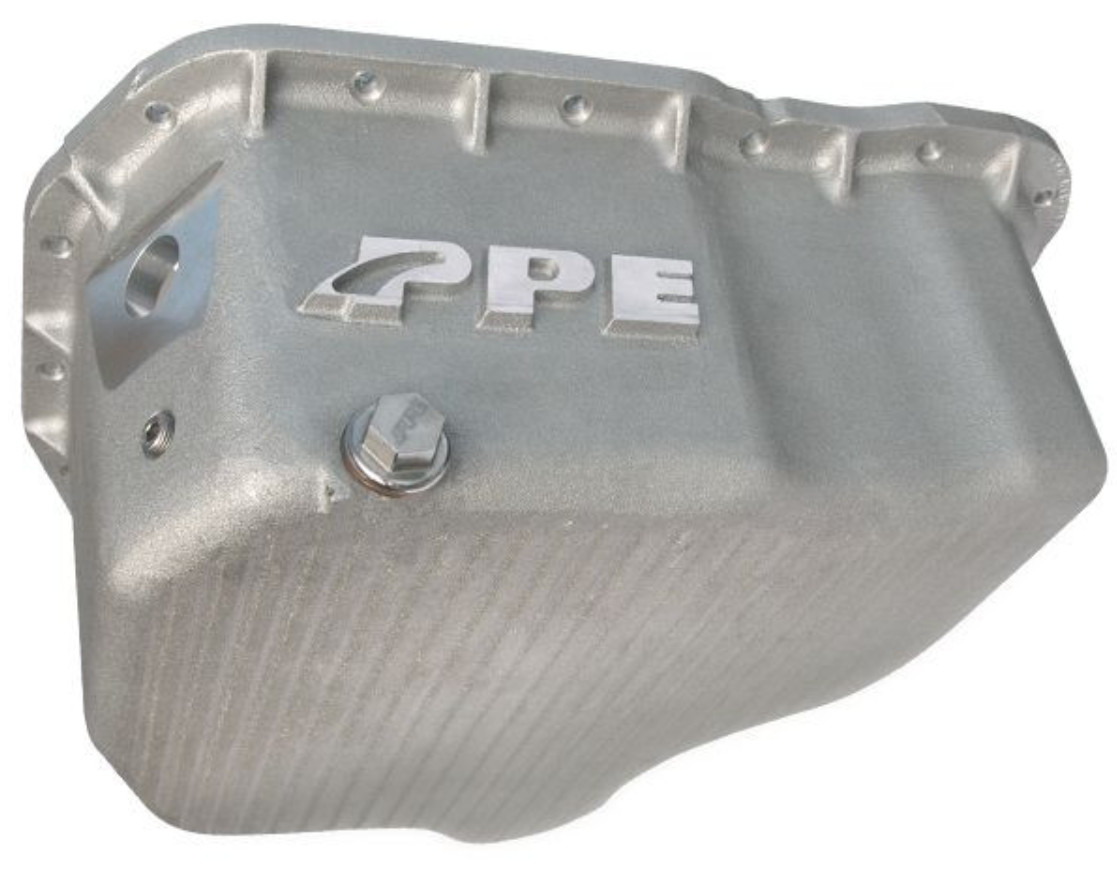

The flat-bottom design allows more of the old engine oil to drain during an oil change, helping reduce the amount of contaminated oil left behind when fresh oil is added.
Features
- Designed for 2001-2010 GM 6.6L Duramax trucks and vans
- 17-bolt-hole design
- Deep cast aluminum construction
- Raw aluminum finish
- Flat-bottom design improves oil drainage
- Adds approximately 1 quart of additional oil capacity
- High-grade cast aluminum helps improve heat dissipation
- Can help reduce engine oil temperatures
- Helps reduce engine noise compared with stamped steel construction
- Unshrouded oil pickup design reduces restriction near the pickup
- Includes hardened billet stainless steel drain plug
- Drain plug equipped with a Neodymium magnet
- Lifetime warranty
- Sold individually
Improved Oil Drainage
The factory Duramax oil pan features a valley that can prevent some of the old engine oil from fully draining during an oil change. This can leave contaminated oil behind that mixes with the fresh oil.
PPE addresses this issue with a flat-bottom deep pan design, allowing dirty engine oil to drain more completely during routine service.
Increased Oil Capacity
The PPE deep oil pan increases engine oil capacity by approximately one quart. The additional oil volume provides more fluid capacity for heat management and lubrication, which can be especially beneficial during demanding towing, hauling, and extended-duty applications.
Cast Aluminum Construction
Unlike the factory stamped-steel pan, this PPE oil pan is manufactured from high-grade cast aluminum alloy. Aluminum provides excellent heat dissipation while the heavy-duty cast construction offers improved strength and durability.
The increased thermal capacity can help manage engine oil temperatures during demanding operation.
Unshrouded Oil Pickup
The unshrouded oil pickup provides additional clearance around the oil pickup area, helping reduce restriction as oil enters the lubrication system.
Maintaining adequate oil flow and pressure is important for proper lubrication of the engine\'s internal components.
Magnetic Drain Plug
The included hardened billet stainless steel drain plug features a high-strength Neodymium magnet designed to capture ferrous metal particles from the engine oil during operation.
This makes routine oil service more informative while helping remove metallic debris from the lubrication system.
Fitment
Designed for:
- 2001-2010 GM 6.6L Duramax
- GM Duramax Trucks
- GM Duramax Vans
Important: Please verify your vehicle\'s oil pan configuration and 17-hole bolt pattern before ordering.
Package Includes
- 1 × PPE Deep Cast Aluminum Engine Oil Pan
- 1 × Magnetic Billet Stainless Steel Drain Plug
