DESCRIPTION
Package Include

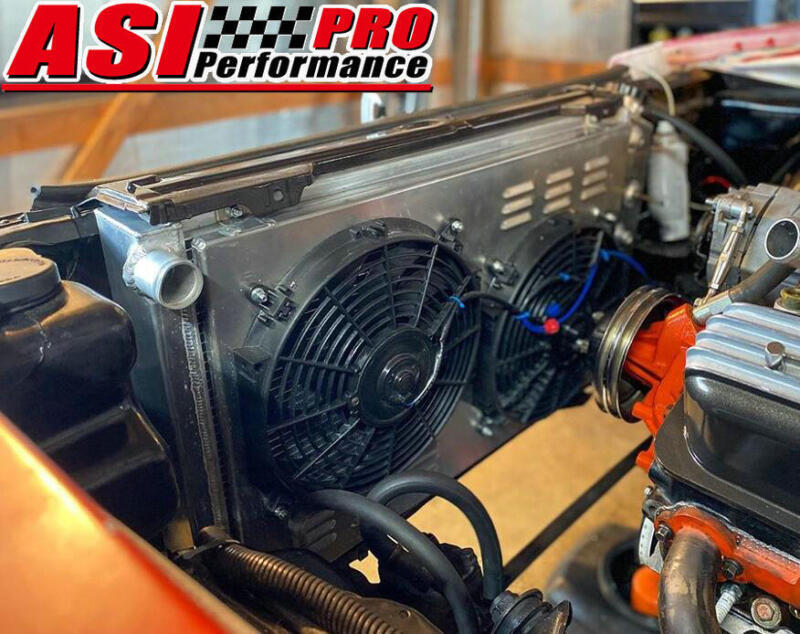

1 X 3 ROWAA5052Aluminum Radiator
1 X CNC Machined Radiator Cap
1 XAA5052Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Radiator Size
Row: 3 Row Core Material: AA5052 Aluminum Radiator Cap: included Core and Tank: All Aluminum Core Size: 17" High x 28 1/4" Wide x 1 3/4"
Overall Size:18 5/8" High x 33" Wide x 5 1/2"T Hose Locations & Sizes: In Driver- 1-1/2" / Out Passenger- 1-1/2"
Trans Cooler: Included- ￠32*215*G1/4(Z)
OEM Style Brass Petcock Drain.
CNC Machined Billet and High Pressure Radiator Cap 1.3 Bar
Transmission: Automatic and Manual.
Upgrade Performance:
1. Made from AircraftAA5052grade aluminum for prolonged lifespanand with raw aluminum finish
2. Brazed core technology to guarantee optimum performance and dependability
3. AllAA5052Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
4. Billet Aluminum CNC machined fill neck rugged and durable
5. ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.
6. OEM style brass petcock drain much better than other plastic one on
7. Carefully crafted to exceptional OE standards for precise fit.
FAN Specification:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.05"
Thickness (in): 2.5"
Number of Blades: 10 S-Type blades
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat KitInstallation:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This set up will run Fans & pull air in through radiator.
For 1971-1990 Chevy Caprice
For 1968-1973 Chevy Chevelle
For CHEVY GM CARS 28" WIDE CORE
For 1973 -1977 Chevy Truck (28" Wide x 17" Tall Core)
For Chevy Cars Caprice (fits 28" wide core)
For 1968-1977 Chevy El Camino
For 1968-1977 For Chevy Chevelle Malibu
For 1971 1972 Chevy Biscayne
For 1967 - 1969 Buick Riviera
For 1966-1977 Olds Cutlass
For CADILLAC OLDSMOBILE GM CARS 28" WIDE CORE
For 1973-1980 K5 Blazer / Blazer
For 1972-1980 Chevy / GMC G & P-Series Vans
For 1970-1977 Chevy Monte Carlo
For 1973-1980 Blazer / Jimmy
For1968-1985 GM 28" Core
For1973-1980 Chevy C/K Series
For1973-1980 Chevy K Series
For1965-1974 Cadillac DeVille
For196719681969197019711972 Buick Skylark
For 71-79 Chevy Impala
For 67-85 Buick Riviera
For 68-73 Pontiac GTO
For 1971 1972 Chevy Brookwood
For Buick Century 1973-1976 350ci 455 ci - 3.8
For 1973 Chevy C15//C20/C30 Pick-Up
For 65-90 Buick LeSabre
For 1971 1972 Chevy Kingswood
For 1974 1975 Pontiac LeMans
For Chevy GMC Trucks Suburban
For1971-1975 Chevrolet Bel Air Base V8 5.7L 6.6L
For1971 1972 Chevrolet Biscayne Base V8 5.7L
For1973 1974 Chevrolet Blazer Base L6 4.1L / V8 5.7L
For1973 Chevrolet Blazer Base L6 4.8L/ V8 5.0L
For1971 1972 Chevrolet Brookwood Base V8 5.7L
For1978-1980 Chevrolet C10 Big Ten L6 4.1L/V8 5.0L 5.7L
For1978 1980 Chevrolet C10 Big Ten L6 4.8L
ForFor1975-1981 Chevrolet C10 Cheyenne V8 5.7L
For1975-1980 Chevrolet C10 Cheyenne L6 4.1L 4.8L
For1977-1980 Chevrolet C10 Cheyenne V8 5.0L
For1981-1986 Chevrolet C10 Custom V8 5.7L
For1980 Chevrolet C10 Custom L6 4.1L
For1975-1980 Chevrolet C10 Custom L6 4.8L/ V8 5.7L
For1975-1979 Chevrolet C10 Custom L6 4.1L
For1975-1980 Chevrolet C10 Custom Deluxe L6 4.1L 4.8L
For1977-1980 Chevrolet C10 Custom Deluxe V8 5.0L
For1975-1980 Chevrolet C10 Custom Deluxe V8 5.7L
For1981 Chevrolet C10 Deluxe V8 5.7L
For1975-1986 Chevrolet C10 Scottsdale V8 5.7L
For1975-1980 Chevrolet C10 Scottsdale L6 4.1L 4.8L
