Description: spmotoring

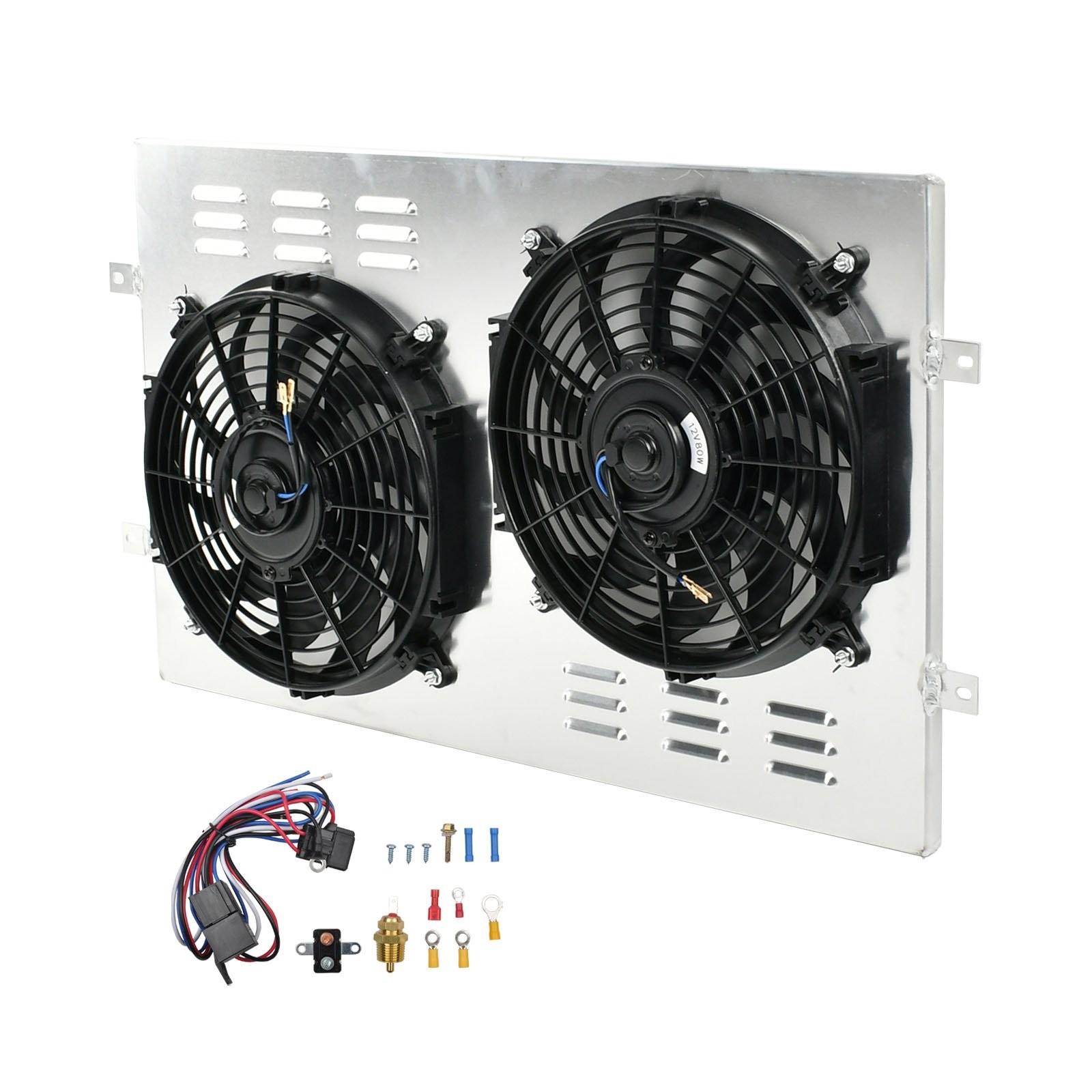

Radiator Electric Fan+Shroud+Relay For 88-99 Chevy GMC Truck C/K 1500 2500 3500
Description:
- 100% Brand new,never been used
- The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
- Shuttered design fan shroud to guaranteed airflow passes high efficiently.
- S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
- Additional with thermostat.
- Professional installation in highly recommended
- Noinstruction
- Shroud Fan:
-
Volt: 12V
- Maximum Fan CFM: 1730 cfm
- Fan Diameter (in): 12.050"
- Thickness (in): 2.500"
- Number of Blades: 10 blades
- Maximum Fan RPM: 2,250 rpm
- Blade Material: Plastic
- Amp Draw: ≤12.70 amps
- Includes the Mounting Tabs for an Easy Zip Tie Installation
- The Fan Shroud Fits Radiator Size:
- Core Size: 17 1/4"Heightx 28 1/4"Width
- Overall Size: 20 1/4"Heightx 33 7/8"Width
- Thermostat Relay Kit:
- Universal fit for any automotive vehicle and electric fan.
- Activates by grounding electric fans at preset temperature.
- 180'F turn-on temperature, 165'F turn-off temperature.
- 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
- Probe typically threads into radiator, water outlet or manifold.
- RED + connect directly to battery.
- WHITE wire to ignition switch power source.
- BLACK goes to thermos switch.
- BLUE wire goes to the Fans.
Package Includes:
Item SpecificsBrand SpmotoringType Radiator Shroud Fan Relay KitVolt 12VOverall Size 20 1/4" Height x 33 7/8" WidthMaterial Aluminum, PlasticFitment Type Performance/CustomCore Size 17 1/4" Height x 28 1/4" WidthVehicles Fitment 1 For 96-97 Chevy P30 / GMC P3500 4.3L V6Vehicles Fitment 2 For 92-95 Chevy/GMC Suburban 5.7L V8Vehicles Fitment 3 For 88-95 Chevy/GMC C/K Pick-Up 5.0 / 5.7L V8Vehicles Fitment 4 For 94-95 Chevy/GMC C/K Pick-Up 4.3L V6Vehicles Fitment 5 For 89-91 Chevy R/V Series 5.7L V8Vehicles Fitment 6 For 94 Chevy Blazer - Full Size 5.7L V8Fan Diameter 12.05"Performance Up to 30%-45% coolingFan Size 12"Thickness 2.50"Quantity of Blades 10 BladesDRAW ≤12.70 AMPMaximum Fan RPM 2250 RPMMaximum Fan CFM 1730 CFMThermostat Relay Kit Included Yes
Payment
We accept payment only.
All major credit cards are accepted through secure payment processor payment.
Payment must be received within 7 business days of sale closing.
Shipping
We usually ship within 1-3 business days(Monday- Friday)after receiving cleared payment.
The orders of Friday would be shiped in the next Monday.
We will ship our product from United States, and it may takes about 3 to 10 business days to arrive your place.
We have five warehouses, and we will ship based on the inventory of the products and the distance to your address.
Returns
Please contact us first when return, exchange and refund is required.
Change-of-mind return can only be accepted within 7 days after purchase.
All other returns can be accepted in 30 days.
Contact Us
Our office hours are 8:00 a.m to 5:00 p.m (GMT +8) of Monday to Friday.
And our Office is closed on weekends and public holidays.
We apologize for the late reply during the holidays.
DESCRIPTIONPAYMENTSHIPPINGRETURN POLICYCONTACT US Radiator Electric Fan+Shroud+Relay For 88-99 Chevy GMC Truck C/K 1500 2500 3500
Description:
- 100% Brand new,never been used
- The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
- Shuttered design fan shroud to guaranteed airflow passes high efficiently.
- S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
- Additional with thermostat.
- Professional installation in highly recommended
- Noinstruction
- Shroud Fan:
-
Volt: 12V
- Maximum Fan CFM: 1730 cfm
- Fan Diameter (in): 12.050"
- Thickness (in): 2.500"
- Number of Blades: 10 blades
- Maximum Fan RPM: 2,250 rpm
- Blade Material: Plastic
- Amp Draw: ≤12.70 amps
- Includes the Mounting Tabs for an Easy Zip Tie Installation
- The Fan Shroud Fits Radiator Size:
- Core Size: 17 1/4"Heightx 28 1/4"Width
- Overall Size: 20 1/4"Heightx 33 7/8"Width
- Thermostat Relay Kit:
- Universal fit for any automotive vehicle and electric fan.
- Activates by grounding electric fans at preset temperature.
- 180'F turn-on temperature, 165'F turn-off temperature.
- 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
- Probe typically threads into radiator, water outlet or manifold.
- RED + connect directly to battery.
- WHITE wire to ignition switch power source.
- BLACK goes to thermos switch.
- BLUE wire goes to the Fans.
Package Includes:
Item SpecificsBrand :SpmotoringType :Radiator Shroud Fan Relay KitVolt :12VOverall Size :20 1/4" Height x 33 7/8" WidthMaterial :Aluminum, PlasticFitment Type :Performance/CustomCore Size :17 1/4" Height x 28 1/4" WidthVehicles Fitment 1 :For 96-97 Chevy P30 / GMC P3500 4.3L V6Vehicles Fitment 2 :For 92-95 Chevy/GMC Suburban 5.7L V8Vehicles Fitment 3 :For 88-95 Chevy/GMC C/K Pick-Up 5.0 / 5.7L V8Vehicles Fitment 4 :For 94-95 Chevy/GMC C/K Pick-Up 4.3L V6Vehicles Fitment 5 :For 89-91 Chevy R/V Series 5.7L V8Vehicles Fitment 6 :For 94 Chevy Blazer - Full Size 5.7L V8Fan Diameter :12.05"Performance :Up to 30%-45% coolingFan Size :12"Thickness :2.50"Quantity of Blades :10 BladesDRAW :≤12.70 AMPMaximum Fan RPM :2250 RPMMaximum Fan CFM :1730 CFMThermostat Relay Kit Included :Yes
