Rare Parts King Pin Set 1931-1933 Chrysler Imperial CG CH 1934-1938 Dodge Truck 30136New Rare Parts King Pin SetFits:(See Extended Description Below For Full Vehicle Application/Fitment Information )Includes Bushings, Bearings, Shims, Caps (All Items required to Rebuild and Replace the King Pins)Rare Parts #30136 or RP30136Specifications:King Bolt Type StraightPin #1 Length 7.444Pin Dia. 1 Step 0.873End of Pin to Center of Keyway 1 2.375End of Pin to Center of Keyway 2 4.4375Width of Keyway 1 0.375Width of Keyway 2 0.375Bushing #1 Material BrassBushing #1 O.D. & Overall Length 1.003 x 1.505Bearing #1 Type Thrust BallBearing #1 O.D. & Thickness 1.891 x 0.615Package Contents 2 King Pins, 2 Bearings, 4 Bushings, 2 Welch Plugs, 2 Felt Seals, 2 Bolts, 4 Threaded Lock Pins, 4 Lock Washers, 4 Nuts, Asst ShimsFits:1932 Chrysler Imperial Custom Series CL FRONT .874\" x 7.438\" Pin 1933 Chrysler Imperial Custom Series CL FRONT .874\" x 7.438\" Pin 1931 Chrysler Series CG FRONT .874\" x 7.438\" Pin 1932 Chrysler Series CG FRONT .874\" x 7.438\" Pin 1932 Chrysler Series CH FRONT .874\" x 7.438\" Pin 1934 Dodge Truck FRONT .874\" x 7.438\" King Pin 1935 Dodge Truck FRONT .874\" x 7.438\" King Pin 1936 Dodge Truck FRONT .874\" x 7.438\" King Pin 1937 Dodge Truck FRONT .874\" x 7.438\" King Pin 1938 Dodge Truck FRONT .874\" x 7.438\" King Pin Rare Parts King Pin Set 1931-1933 Chrysler Imperial CG CH 1934-1938 Dodge Truck 30136
New Rare Parts King Pin Set
Fits:
(See Extended Description Below For Full Vehicle Application/Fitment Information )Includes Bushings, Bearings, Shims, Caps (All Items required to Rebuild and Replace the King Pins)Rare Parts #30136 or RP30136
Specifications:
King Bolt Type Straight
Pin #1 Length 7.444
Pin Dia. 1 Step 0.873
End of Pin to Center of Keyway 1 2.375
End of Pin to Center of Keyway 2 4.4375
Width of Keyway 1 0.375
Width of Keyway 2 0.375
Bushing #1 Material Brass
Bushing #1 O.D. & Overall Length 1.003 x 1.505
Bearing #1 Type Thrust Ball
Bearing #1 O.D. & Thickness 1.891 x 0.615

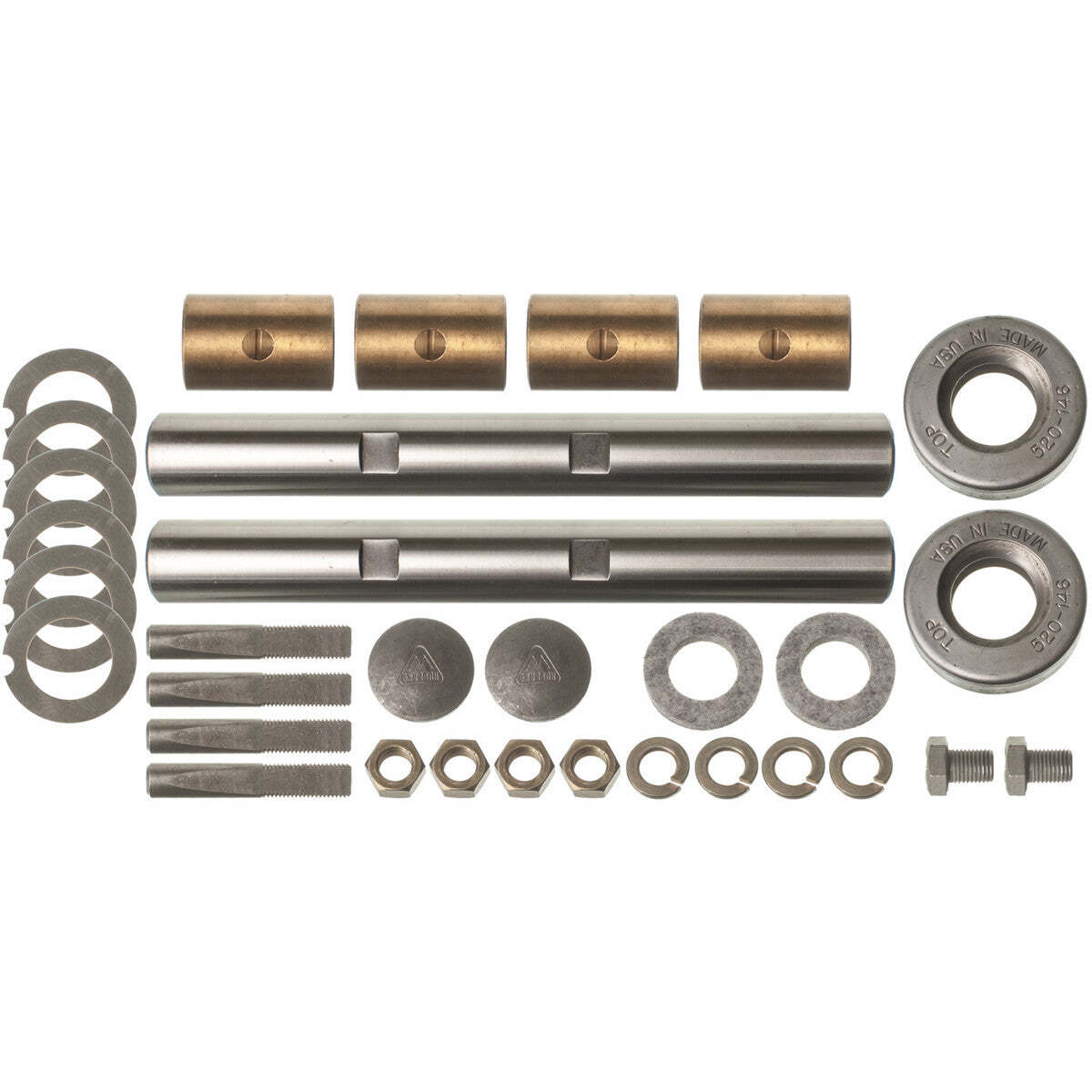

Package Contents 2 King Pins, 2 Bearings, 4 Bushings, 2 Welch Plugs, 2 Felt Seals, 2 Bolts, 4 Threaded Lock Pins, 4 Lock Washers, 4 Nuts, Asst ShimsFits:
1932 Chrysler Imperial Custom Series CL FRONT .874\" x 7.438\" Pin
1933 Chrysler Imperial Custom Series CL FRONT .874\" x 7.438\" Pin
1931 Chrysler Series CG FRONT .874\" x 7.438\" Pin
1932 Chrysler Series CG FRONT .874\" x 7.438\" Pin
1932 Chrysler Series CH FRONT .874\" x 7.438\" Pin
1934 Dodge Truck FRONT .874\" x 7.438\" King Pin
1935 Dodge Truck FRONT .874\" x 7.438\" King Pin
1936 Dodge Truck FRONT .874\" x 7.438\" King Pin
1937 Dodge Truck FRONT .874\" x 7.438\" King Pin
1938 Dodge Truck FRONT .874\" x 7.438\" King Pin
×
