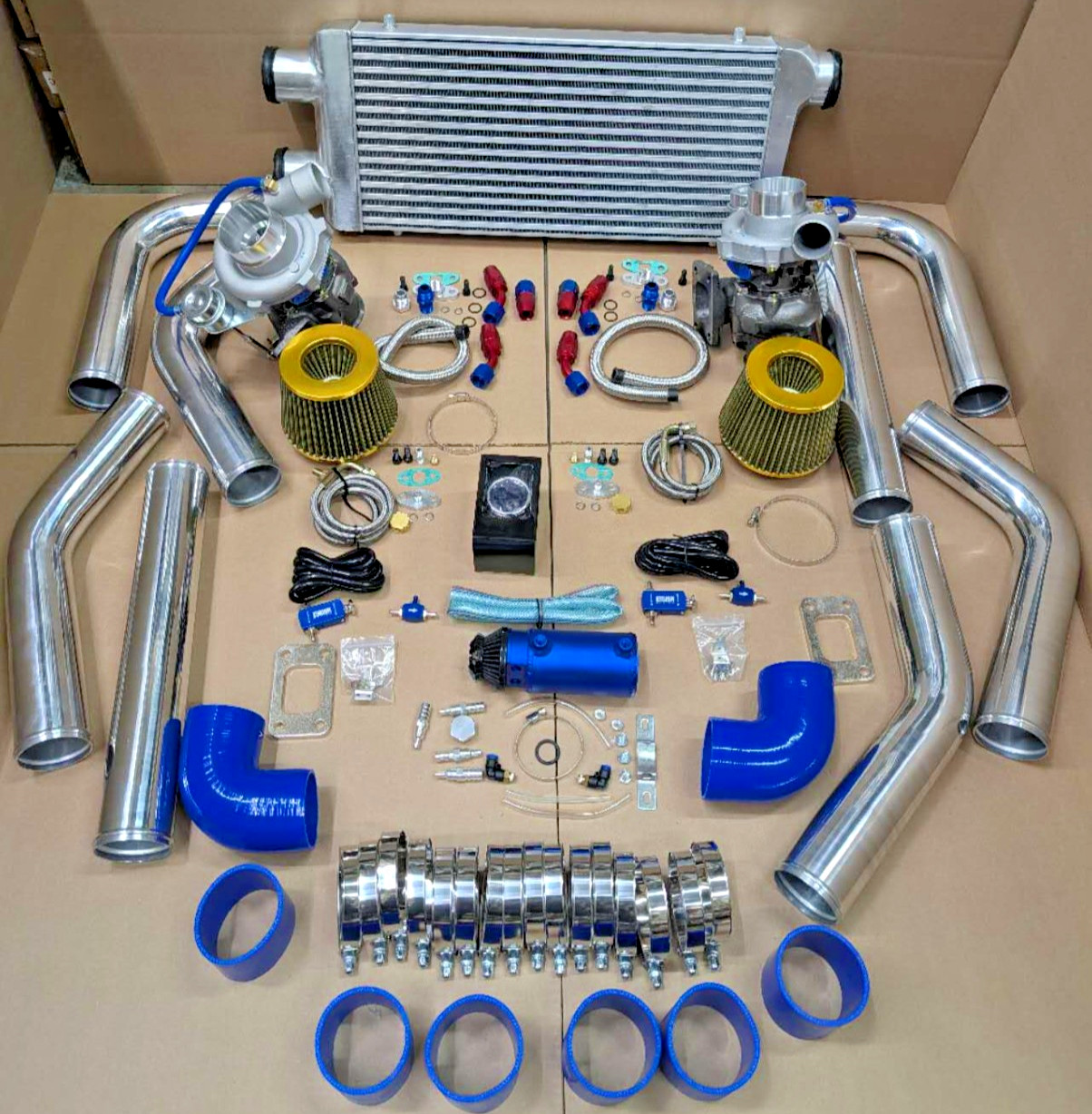

2x T3/T4 TURBOCHARGER100% Brand New T3/T4 Hybrid Turbocharger! High Quality Guaranteed! cast housing with durable steel. Capable of boosting horse power up To 350+ BHP, standard 4 bolt exhaust flange, Capable of 8 PSI or 15-25 PSI output at peak power. Cnc machined flanges. Internal wastegate setting: 8 PSI. High quality t04e with a forged turbine propeller wheel!
Turbo Specification:
Product Specific:
Exhaust Inlet (Turbo Manifold) Flange:T3 T4 4 bolt Flange Patterns
ExhaustOutlet Flange:V-Band Flange(ID/OD: 2.5\"/3.1\")
Turbine Side:
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust outlet : 79mm
Turbine exhaust inlet: Side:
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Compressor outlet:78 mm
Compressor inlet:51.5 mm
Bearing:Journal Bearing
Cooling Type:Oil Cooled
Wastegate:Internal Wastegate
Thrust Bearings:270 Degrees
Hosepower:Up to 420 HP
Turbo Type:Individual
Condition:100% Brand New
INTERCOOLER:
- 100% BRAND NEW!
- Tube and fin design.
- Made of high quality T6061 aluminum.
- High flow and light weight. Support up to 80 PSI.
- Intercooler Size: 32.5\" (L) X 11.75\" (H) X 3\"(W) Dual Inlet & One Outlet front mount intercooler.
- Full size: 32.5\" (L) X 11.75\" (H) X 3\"(W) 3 inchinlet/outlet.
- Core size: 23.5\"(L) X11.5\"(H)X2.75\"(W)
- Will received everything show in the picture only.
PIPING:1. Made of High quality T-6061 LIGHTWEIGHT Aluminum Piping.2. Powder-Coated Surface Finish.3. 2.5\" Piping Diameter.4. 2.0mm Pipe Thickness.5. Increase 65% Air Flow comparing with other Standard Piping.
SILICONE COUPLER:1. Made of high quality silicone material2. Thickness of wall:5 mm, 4 ply reinforced3. Working Pressure: 0.3 Mpa (43.5 PSI) to 0.9 Mpa (130.5 PSI)4. Bursting Pressure: 2 Mpa5. Working Temperature: -76°F (-60°C ) to +500°F (+260°C)6. Size tolerance:+/-0.5 mm
T-BOLT CLAMP:1. Made of High quality 301 SS Stainless Steel Clamp2. Stainless steel construction resists corrosion3. Provide uniform sealing pressure for a positive4. Polished finish increases engine bay aesthetics
2x AIR FILTER:1. Oil-free filter Micro cotton gauze type filter material washable with water or soap and reusable.2. Improves Up to 95% Filtration Efficiency.3. Designed to increase horsepower and acceleration.4. Width: 6\" Inlet: 3.0\" Overall Tall: 3.5\" Mesh Tall: 2.5\"
BLOW OFF VALVE:1. Aggressive JDM racing discharge sound.2. 8 Discharge ports that draw in surrounding air and release a unique discharge sound.3. 40mm hard-anodized valve for increased airflow.4. Dual spring system promoted response and allows for high boost pressures.5. Support up to 30 PSI boost pressure.
2x OIL LINE:1. OIL DRAIN FEED LINE.2. 10AN Fittings.3. Inner Diameter: 0.50\"4. Length: 17.00\"5. CNC Machined Turbo Adapter Plate.6. Weldable 10AN Oil Pan Fitting Included.7. Inner Diameter: 0.25\"8. Length: 36.00\"9. 1/8 NPT Fittings Natural Polish Finish.10. CNC Machined Turbo Adapter Plate.11. Brass Fitting Block Fitting and Port Cover Included
2x BOOST CONTROLLER:1. Allows to adjust PSI ratings without changing the wastegate springs as well as replacing the wastegate springs.2. High Performance Manual Boost Control From 0~30 psi Capacity.3. CNC Machined Light Weight and Resistant to Rust.4. Hose clamp and all necessary hardware for complete installation.5. 1-30 PSI Adjustable.
2x WASTEGATE:1. High strength Alloy aluminum body with steel head.2. Comes with 7 psi spring installed.3. Protect the turbo system from over boosting.4. Complete install kit included .
2x GASKET FLANGE ADAPTER:1. High Quality Cast Raw Steel2. 4 bolt for T3 Turbo3. Single Entry T3 Turbo Flange4. 12mm(almost 1/2\") Thick5. Bolt Diameter: M10 Thru Holes6. Holes, Holes Are Drilled Through, Not Threaded.7. Fits all T3 and T3/T4 hybrid turbos with 4 & 5 bolt standard size inlet
1X BOOST GAUGE
Product Feature
- ✨Universal Compatibility:The boost gauge is designed to fit most vehicles with a standard 52mm (2-inch) gauge size. It can be easily installed in cars, trucks, SUVs, and other vehicles with a compatible dashboard or gauge pod.
- ✨Boost Pressure Monitoring:This gauge allows you to monitor the boost pressure of your car\'s turbocharger or supercharger system. It provides real-time readings of the pressure levels, helping you keep an eye on your engine\'s performance.
- ✨LED Display:The gauge features a bright LED display that provides clear and easy-to-read readings. The digital display ensures accuracy and visibility, even in different lighting conditions.
- ✨Pressure Range:The boost gauge measures pressure from 0 to 35 PSI (pounds per square inch), allowing you to monitor a wide range of boost levels. It is suitable for both stock and modified engines, giving you valuable insights into your vehicle\'s performance.
- ✨Smoked Face Design:The gauge comes with a smoked face design, which adds a sleek and stylish look to your car\'s interior. The smoked face also reduces glare and reflections, ensuring optimal visibility of the gauge readings.
- ✨Easy Installation:Installing the boost gauge is straightforward and requires basic tools. It comes with a complete installation kit, including all necessary mounting hardware and wiring instructions, making it convenient for DIY enthusiasts.
- ✨High-Quality Construction:The boost gauge is built with durability in mind. It features a sturdy housing and a scratch-resistant lens, ensuring long-lasting performance even in demanding driving conditions
ATTENTION:1. For emissions related items please check with your local jurisdiction for emission specific requirements before purchasing. No installation instruction included unless otherwise specified. If item is questionable please consult your local professional/mechanic before making purchase.2. Color may randomly selected depend on hand or inventory.3. NO instructions included. modification might required for complete installation.4. Professional TURBO INSTALLER is Highly recommend. Any damage during installation will not be refunded.5. Your valid phone number is very necessary for the shipping, otherwise we can\'t guarantee that the package would safely arrive.6. The piping that comes with this kit is universal, and will have to be modified to fit most applications7. Don\'t hesitate to contact us if item stuck, unknown or fault installation !!
