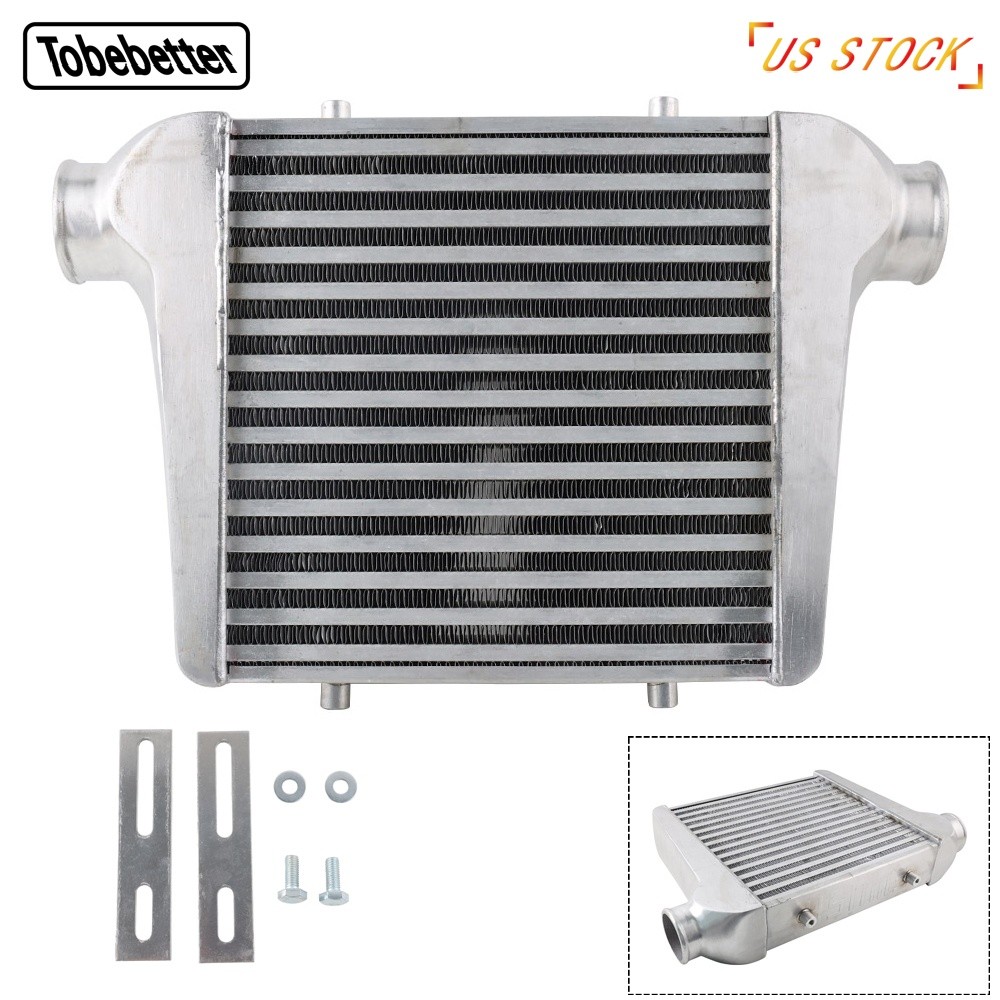

Side Mount Turbo Aluminum Intercooler Plate Type 2.5\'\' Inlet/Outlet 100% Brand New
Color: Silver
Type: Turbo Intercooler
Material: Aluminum Alloy
O.D. of Inlet / Outlet Port: 2.5\'\' (63mm)
Core Size: 280*300*63mm
2.5\" Thick Core
Working Pressure: 5~50psi
Pressure Drop: 2~5psi at 35psi ; 0.2~0.5psi at 15psi
Hot Air Temperature: 32°F~302°F (0°C~150°C)
Compress Air Flow Rate: < 350 Cubic Feet/Min Rated to 650 Max HP
Easier to install
Description:
Burst tested to 140psi.
CNC machine flange for max strength and durability.
TIG-welded T-6061 casted aluminum end tanks allows it to withstand high internal pressure.
Helps reduce engine inlet temperature with better cooling efficiency than stock.
Allows more horsepower at the same boost levels and even more power at higher boost levels.
TIPS:
- On installing your intercooler be sure that all hose clamps and fittings are tightened to prevent any leakage.
- Any cleaning should be done with hot soapy water and well rinsed.
- Do not exceed 9 bar (130 psi) rating on your oil cooler.
- Do not use any car cleaning products, particularly traffic film remover solutions or shampoos to clean your intercooler, radiator or oil cooler. The use of these products can damage the cooling systems and invalidate your warranty.
- We recommend that you should inspect your product on a regular basis for bent and/or crushed fins. Any bent fins should be carefully straightened to allow ambient air to pass through the core face.
- At the time of installing your intercooler, an approved coolant must be used and added to the coolant system. Be sure you NEVER mix coolant and ALWAYS use DISTILLED water.
Package Includes:
1 x Intercooler
2 x Brackets
(All accessories on the picture are included.)
Please note:
Installation instruction is not included, professional installation is highly recommended
Please check the size measurement carefully before purchasing
