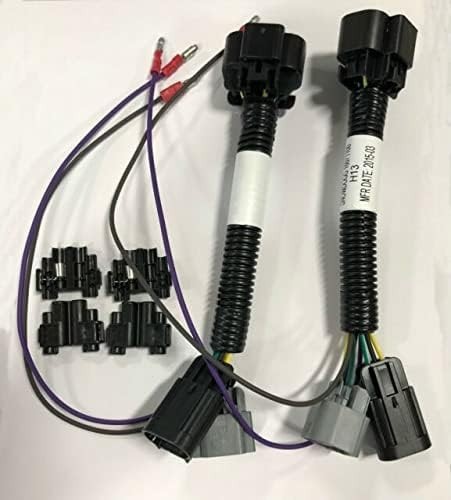

SnowDogg Part # 16071100 - Universal Headlight Adapter Kit H13, 9008
SnowDogg Part # 16071100 - Universal Headlight Adapter Kit H13, 9008. This is used on vehicles with H13 bulbs such as the 2004-Up, 2006-Up, 2007-Up and more. As always, check your vehicles bulb types to ensure they are indeed H13 bulbs before purchasing.
INSTRUCTIONS1. Disconnect both PS and DS side truck headlights from the truck harness.
2. Connect the 16071100 adapters to the OEM headlight connectors and truck harness connectors.
3. Connect the 16071100 adapters to the universal light harness connectors included with the snowplow. This is part of the harness with the relay module.
4. Use an included Tap connector to tap the BROWN wire into your PARK light circuit on both the PS and DS circuits.
5. Use an included Tap connector to tap the PURPLE or ORANGE wire into the TURN light circuit on both the PS and DS circuits.
6. Check all light functionality before operating the plow.
NOTE: 2008 SuperDuty trucks built before April 18, 2007 were originally shipped with a miscalibrated Smart Junction Box that would malfunction when switching to plow lights.
From SVE Bulletin Q-155-R1
