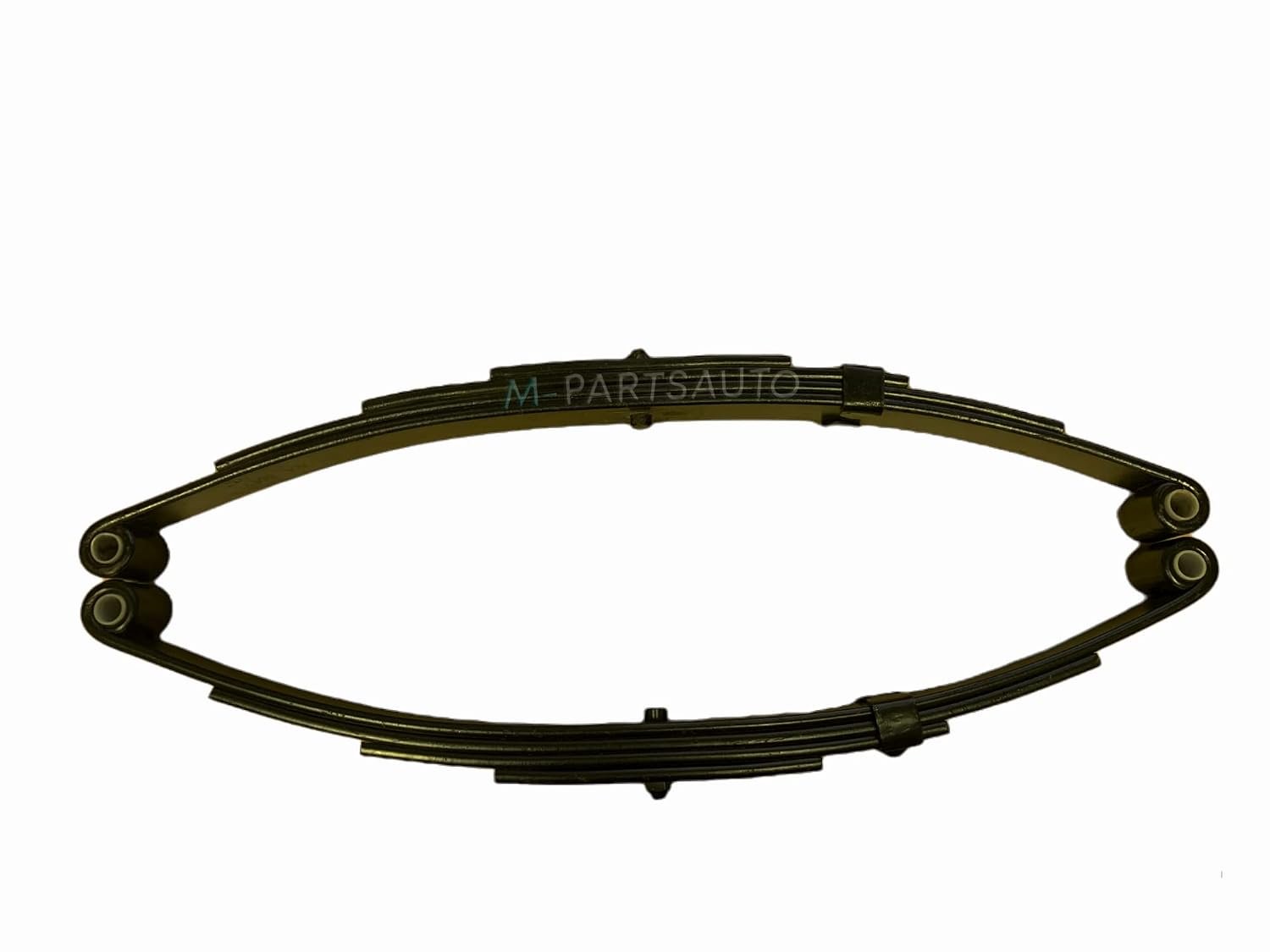

TWO- 4 Leaf Springs for 3500# Axles (Rated to 1750# per spring)
Part Number: SW4B
Cross Reference Numbers: DE-7242, DE-SW4B, UNA-212, DE-SW4B, 93184(If you need two or more, just put the number you need in the box next to the buy it now button)Pictures shown are FILE PHOTOS, and the actual spring. This spring will have 4 leafsFeatures:
- Used for 3500# Axles
- Rated to 1750# per spring (use two springs per axle) Specifications:
- Number of Leaves: 4
- Free Length (Eye to Eye): 25.25"
- Free Arch: 3"
- Width: 1.75"
- Bushing ID: 0.562"
- 9/16" Eye Diameter
This is the most common trailer axle spring in use today. It is the standard leaf spring found on the 3500# trailer axle from most manufacturers. Rated 1750 pounds per spring, for a 3500# combine capacity per axle. Measures 25.25" from bolt center to bolt center, and 1.75" wide. (your spring may be a bit longer, if it has stretched)
We do have these in Heavy duty versions, for those that take it to the limit--click here!
Need a hanger kit, spring parts, perches, bolts, or springs? Click here!
