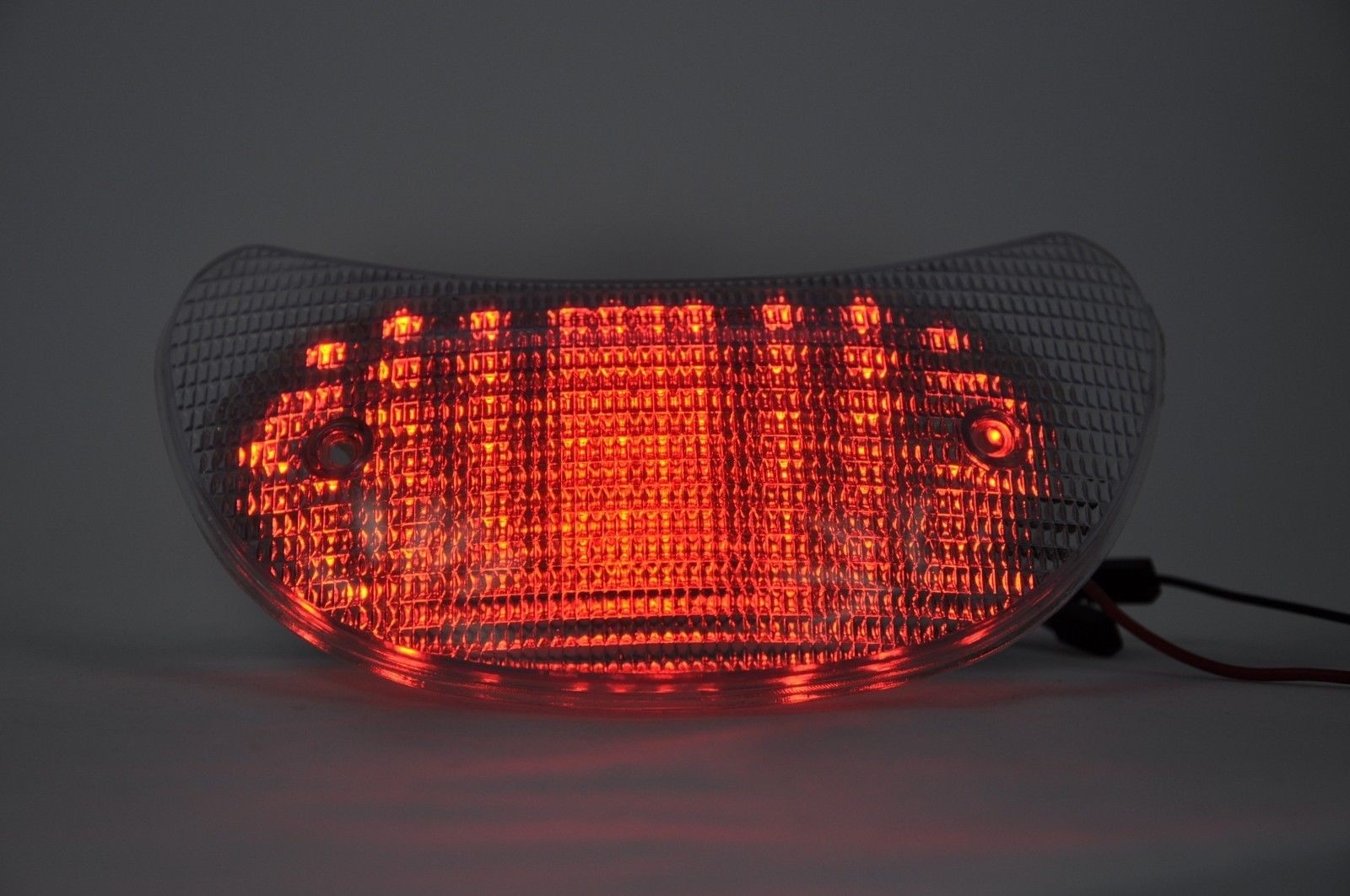

Tail Light LED Smoke Int. Turn Signal DUCATI 1992-1998 Supersport 750/900/602 For Sale - New and Used

Fit DUCATI

1992-1998 Supersport 750

2000-2006 Supersport 1000

1992-1998 Supersport 900

2002-2006 Supersport 620

1992-1998 Supersport 602

Smoke lens

super Bright LED

FEATURES:

• Specific tail light for the above-mentioned models, Improve the look and lighting of your motorcycle
• It integrates the flashing tail light function
• Light has the following functions: Position light, brake light, left turn light , right turn light
• Fixed in the place of your original light without any changes
• Maximum Quantity LED installed
• Super Bright LED
• With built-in Amber Turn Signals
• Included connectors and resistors if applicable
• Guarantee 6 months

Installation:

Wiring Diagram:

Black Wire(Negative),

Green Wire(Brake)

Red Wire(Running Light)

Connect theYELLOWwires to the positive turn signal wires using provided red connectors or

alternately use your existing factory connectors. Ground wire is not needed unless you are

using resistors to slow down the blinking rate. The ground wire is the same color wire used on

both turn signals.

To slow down the blinking rate use provided resistors.

1. Connect one end of the resistor to the ground wire on your turn signal harness from your bike.

2. Connect the other end of the resistor to both theYELLOWwire from our taillight and the positive

turn signal wire from your turn signal harness from your bike.

3. Repeat the same process for the other side.

To use the red connectors, place one wire inside along one channel, place another wire inside along

the other channel. Push down the metal pin as it will make a small cut on each wire bridging the connectors.

if you are using the resistors, place one end of the resistor in the middle of either channel along with the one wire.
