TransGo Shift Kit GM 4L60E Includes .500" Boost Valve (4L60E-HD2)1993-up
Upgrade the performance, durability, and shift quality of your GM automatic transmission with the TransGo 4L60E-HD2 Reprogramming Kit. Designed for 1993-2015 GM 4L60E, 4L65E, 4L70E, and 4L75E automatic transmissions (excluding Hybrid models), this comprehensive valve body rebuild kit corrects many of the most common transmission complaints while delivering crisp, positive shifts and improved clutch durability.
This kit can be installed while the transmission is in the vehicle on 1993-2006 models only without the input speed sensor. 2007 and later models equipped with the input speed sensor require transmission removal.
This also includes #7-CS 3-4 clutch piston return spring kit for the input drum which reduces centrifugal 3-4 clutch apply and failure in 1st gear at 5500 RPM or higher, transmission removal required.
Features
- Genuine TransGo 4L60E-HD2 Reprogramming Kit
- Fits GM 4L60E, 4L65E, 4L70E & 4L75E Automatic Transmissions
- Fits 1993-2015 Applications (Except Hybrid Models)
Corrects Common Problems
- TCC slip or shudder
- Code P1870 and P0894
- Harsh 1-2 shift
- Long soft shifts
- Double bump or slide bump on the 1-2 shift
- 2-3 flare up
- 2-4 band failure
- Burnt 3-4 clutch plates
- Burnt forward and low/reverse clutch plates
- Pump slide and valve bore wear

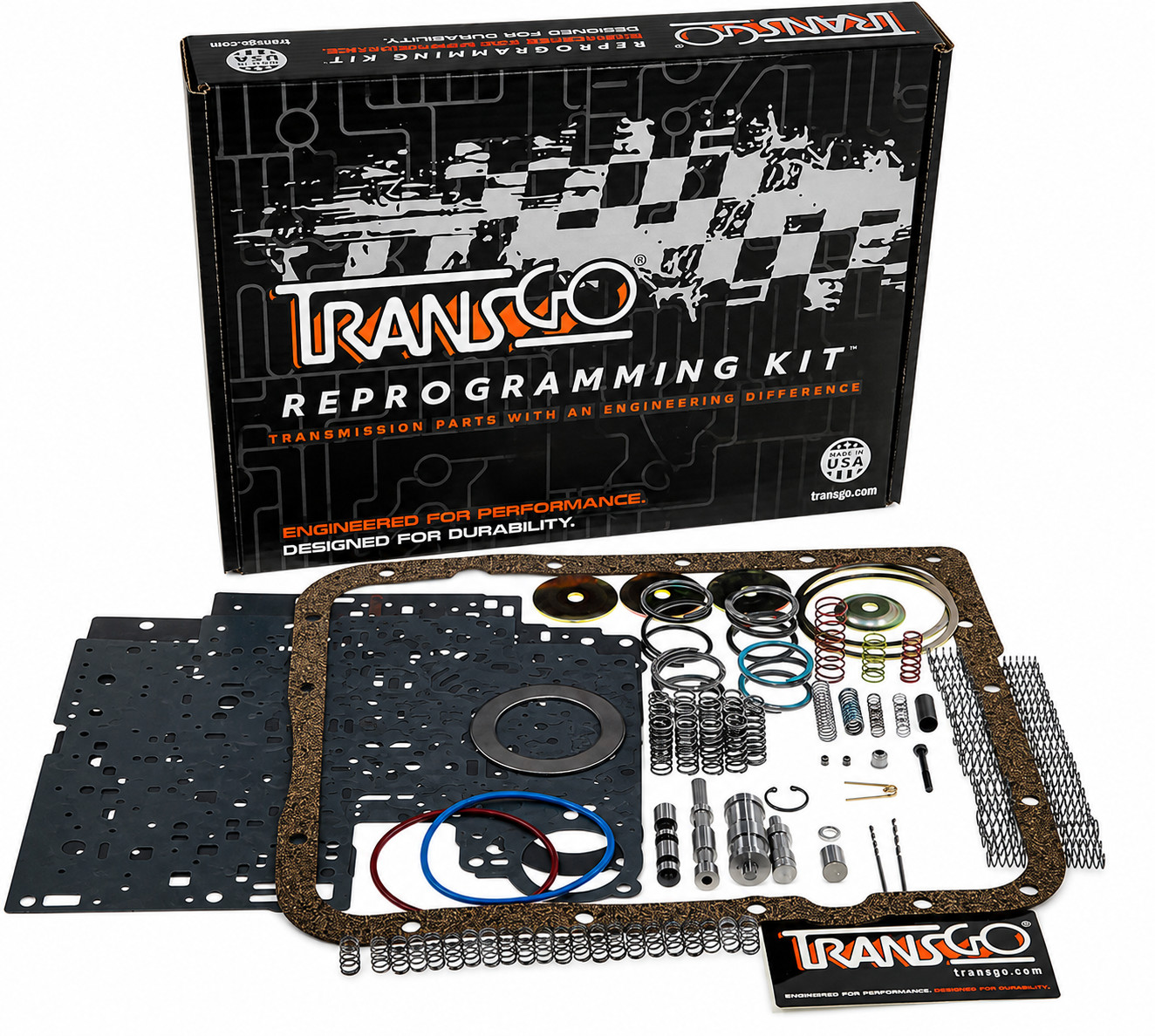

Kit Includes
- Second servo piston spring, two shims and two O-rings
- (2) 1-2 accumulator springs, spring seat and three spacers
- 3-2 Downshift valve spring
- Actuator feed limit valve spring
- (2) 1-2 accumulator valve springs
- USA-made hardened steel 1-2 shift valve and spacer
- Low valve spring
- USA-made hardened TCC regulator and isolator valve, spring and installation bolt
- (2) Pressure regulator valve springs and spacer
- .500” boost valve, bushing and snap ring
- EPC screen wire spacer and oversized 1-2 checkball
- (2) Drill bits
- (2) Reverse input piston orifice cup plugs
- 3-4 accumulator spring
- (2) Valve body gaskets
- Pan gasket
- 3-4 clutch return springs and orifice capsule
- Forward clutch return springs and installation washer
Vehicle Compatibility
Fits GM vehicles equipped with:
- 4L60E Automatic Transmission
- 4L65E Automatic Transmission
- 4L70E Automatic Transmission
- 4L75E Automatic Transmission
Model Years:
Important Installation Notes:
- 1993-2006: Kit can generally be installed with the transmission in the vehicle on models without an input speed sensor.
- 2007 and Later: Models equipped with an input speed sensor require transmission removal.
- Installation of the included 3-4 clutch return spring kit requires transmission removal.
- Professional installation is recommended.
Why Choose the TransGo HD2 Kit?
- Restores Proper Hydraulic Operation
- Improves Shift Performance
- Increases Transmission Durability
- Reduces Common Transmission Failures
- Trusted by Professional Transmission Rebuilders
Package Includes
- (1) TransGo 4L60E-HD2 Reprogramming Kit
Why Buy From Us?
- Fast Shipping
- Quality Transmission Parts
- Trusted U.S. Seller
- Professional Customer Support
- Transmission Specialists
Please verify your transmission model before purchasing. If you're unsure of compatibility, send us your VIN and we'll be happy to confirm fitment.
