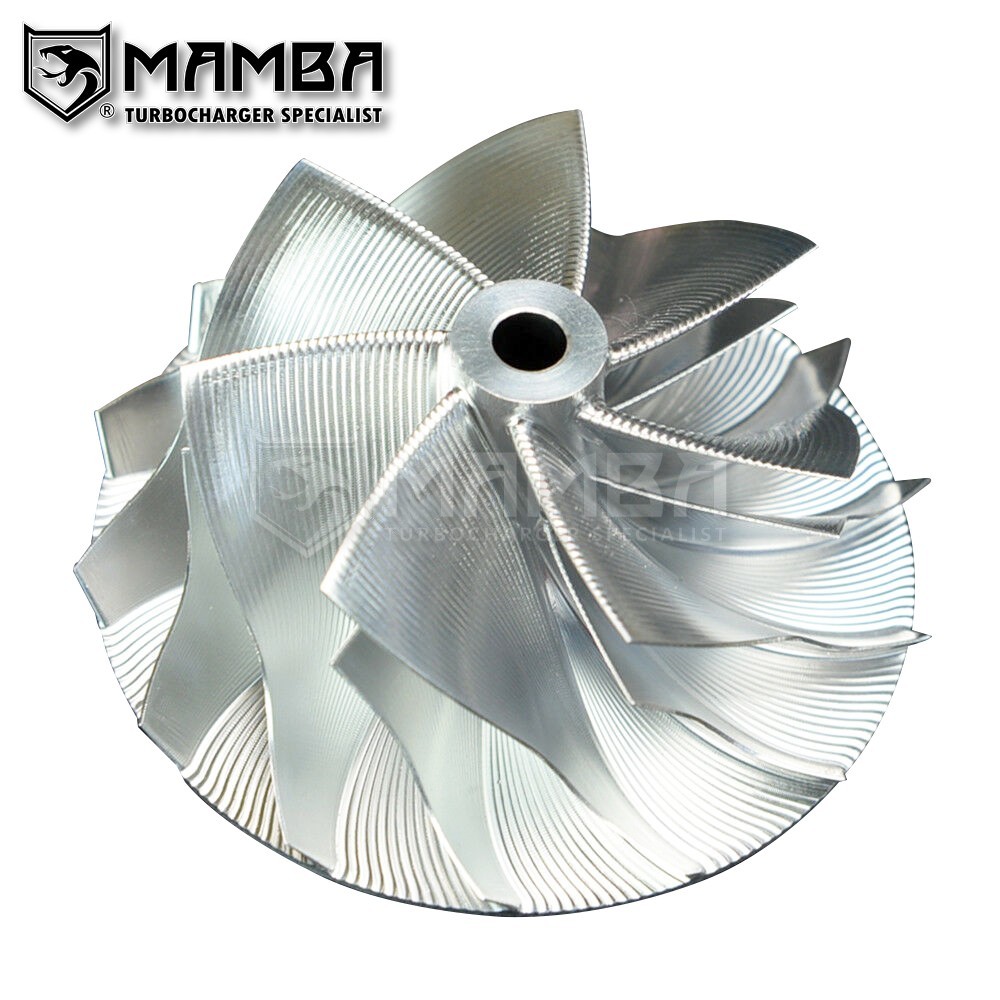

Turbo Billet Compressor Wheel Fits Garrett G40-1150 (71/88/7+7/FED/Point Milling:
$275.00
MAMBA Turbo Billet Compressor Wheel Fits Garrett G40-1150 (71/88/7+7/Forward/Point Milling/Threaded-M7x1.0LHT)
Brand New
Balanced
Applied to engine/vehicle: N/A
OE Turbo/Chra Part Number: N/A
Inducer Dia. B: 71.0 mm
Exducer Dia. C: 88.0 mm
Tapered Tip Exducer Dia. D: 91.2 mm
Tip Height E: 9.4 mm
Superback F: 5.7 mm
Overall Height G: 54.8 mm
Bore Size H: 7.5 mm
Trailing Angle I: 35 degree
Cutback Angle J: 6.6 degree
Splitter Height K: 20.0 mm
Tapered Tip Angle L: 11.6 degree
Standard or Custom Size: Standard Size
Fits OE Compressor Housing: Yes
Blade: 7+7
Bore Type: Threaded-M7x1.0LHT
Rotation: Forward
Material: 2618 Forged Aluminum
Warranty will not be honored in case of damage or malfunction due to overheat;lubrication issue and bent/broken blade is not under warranty.
Replacement parts will be charged.
