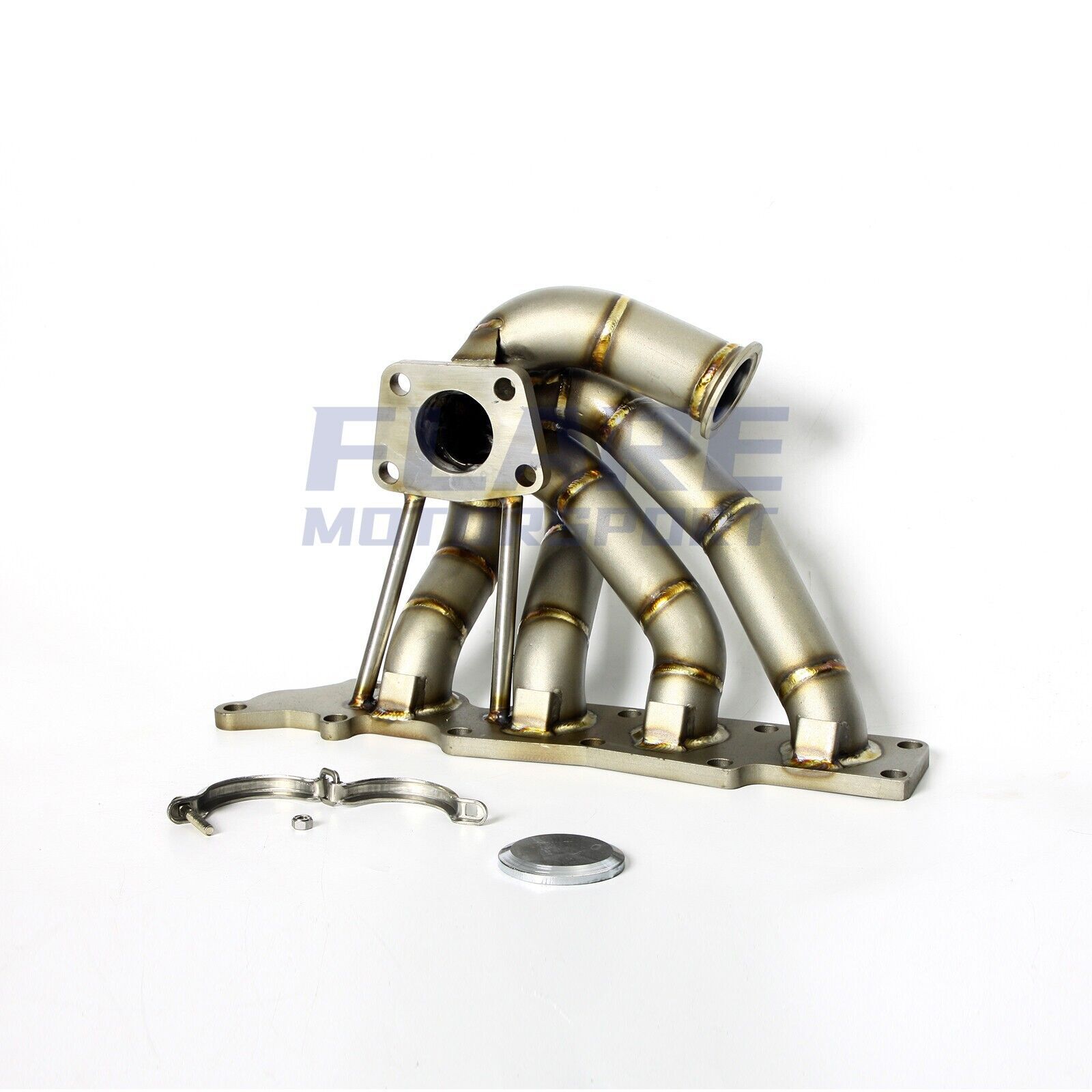

Turbo Manifold for Mazda 3/6/CX-7 2.3L MZR DISI MPS XS-P 44MM WG FLG For Sale - New and Used

APPLICATION:

• Mazdaspeed & Mazda 3/6/CX-7 2.3L MZR DISI MPS engine
• 2006-2007 Mazdaspeed 6 2.3 turbochargered
• 2007-2013 Mazdaspeed 3 2.3 turbochargered
• 2007-2011 Mazda CX-7 2.3 turbochargered

FEATURES:

• Fits K04 Turbo Flange and 44mm Wastgate Flange
• External wastegate port for a 44mm wastegate, 1 piece design head flange
• Excellent quality and durability to improve vehicle performance
• Equal length runners for balanced exhaust reversion and enhanced turbo performance
• Ram Style Equal Length Turbo Manifold,Allows Turbo Spool Faster And Throttle Response
• Flat 4-hole engine flanges, after special process shaping, more suitable for engine installation position
• Tubular manifold design with better exhaust flow and delivers more top end power
• Precision aligned tubes made of schedule 40 cast 316L
• Head flanges laser-cut from high quality 1/2-inch thick steel plates
• The flange is flattened by a hydraulic press for precise and leak free sealing
• All joints are golden color TIG brass style welded to prevent cracking and wear
• Flanges chrome plated for corrosion resistance
• Sandblasted surface for extra hardness
• The accessories in the photos are included
• 1 year warranty for any manufacturing defect

TECH SPECS:

• Manifold Type: Tubular Turbo Manifold
• Runner Diameter: 1-3/4 in. (45mm)
• Runner Layout: Equal Length
• Turbo Fitment: K04
• Turbo Mount Position: Low/Bottom Mount
• Wastegate Fitment: 44mm (V-band)
• Head Flange Thickness: 1/2 in. (13.5mm)
• Pipe Thickness: Schedule 40 (3mm)
• Material: 316L
• Finish:Sand blasting

---
