UPR C7 Corvette Billet Catch Can 4 Chamber Oil Separator System ( UPR Catch Cans includeNickel Fittings and Black Billet Hose ends for FREE ! )
UPR Patented Diffuser Upgrade ( That's a $40 upgrade for FREE )
Part Number:5030-96-CSS MFG Retail: $ 499.99Item Finish: Black anodized Finish - BlemishFits Models:Corvette - C7 - Z51Description:You can be sure that no other manufacturer can give you the level of quality or performance
of a UPR Pro-Series Catch Can.Offering the largest capacity in a compact design to be
sure that it can eliminate oil vapors on vehicles that are normally aspirated or power added
equipped.Manufactured from Domestic T-6 6061 Aluminum bar stockand finished off using only the
best Diamond cutters to exceed your expectations of what a superior productshould fit and
look like.UPR is the largest aftermarket catch can manufacturer in the country. Continually improving
our designs to stay ahead of the competition and give you the cutting edge technology of
tomorrow today. We are so confident we offer an unconditional warranty on our products
to let you know you can always count on UPRproducts.Items Included: *Our Billet Catch Can inventory is always stocked and ready to ship*
- UPR Oil line Cap
- UPR Nickel Drain Cock
- UPR Billet Hose Ends (Black)
- UPR Angle Mounting Bracket(Black)
- UPR C7 3/8 inch Braided Hoses (Pre-Cut)
- UPR AN fitting for the Dirty Side ( Black )
- UPR Hi-Flo Billet Check Valves(2 Pcs)
- UPR C7 Clean Side Separator ( Black )
- UPR C7 Dual Valve Billet Catch Can (Black)
- UPR 3/8 inch 90 Degree Nickel Fittings
- UPR includes $100 worth of Upgrades in the C7 Kit (No Charge)
What is the problem with your PCV system ?
The Positive Crankcase Ventilation (PCV) system is used to recycle the gases that leak or “blow-by” the your engines piston rings and create a positive pressure in the crankcase. By venting these gases along with oil mist/vapor from the crankcase and route it back into the intake manifold so it can be burned off.
This is a poor fix from automobile manufacturers, because over time the excess oil vapor collects along the inside of the intake tract and forms a “sludge”. This leads to a variety of issues including carbon build up, retarded timing, detonation, power loss and even engine failure.
UPR s fix for the PCV system used on many engines for reducing toxic gases from being released into the atmosphere and eliminating positive crankcase pressure / Blow-By.
What does a UPR Catch Can do ?
UPR s Billet Catch Can / oil-air separator will condense and collect the oil vapor before it has any chance to reach the intake tract. As the gas and oil vapor enters UPR s can they pass through a Chambered filtering system that cools the oil vapor and gives it something to adhere to.
Then the oil forms into droplets and collect in the bottom of the UPR Catch Can so that they can later be drained. This is where the additional Chambered filtering system comes into play allowing only the clean air to pass through so it can eliminate unwanted blow by.
All engines have blow by otherwise there would be no need for a PCV system on your engine. PCV = Positive Crankcase Valve, which eliminates Positive Crankcase Pressure. UPR s Catch Can has become one of the most widely used and recommended cures for just about every application.

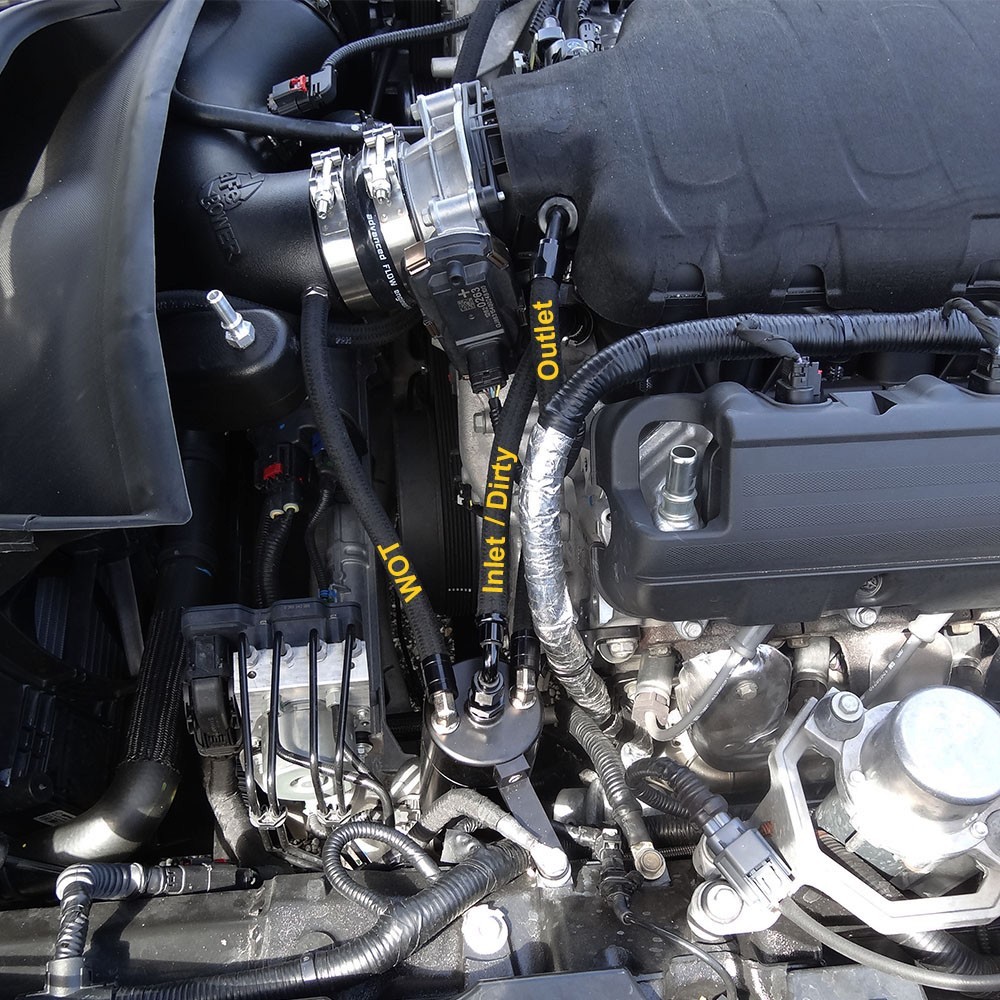

The engine size and horsepower level is not relevant to the performance of the UPR Catch Can. UPR s Catch Can has become a cornerstone by improving the Performance and Economy on any vehicle you install it on.UPR C7 Corvette Catch Can Installation Instructions1. 10mm long socket to remove plenum cover2. 13mm short socket for the catch can bolt (ground strap directly across from the timing cover drivers side.)3. Neatly pry the wire harness loose from the plenum4. Use a needle nose to remove harness connector 5. Now install the UPR Catch Can and ground strap then tighten the 13mm bolt securely6. Remove the small factory hose behind the throttle body motor on driver-side7. Now connect the lower hose from the lower plenum to the catch can inlet (top center of can)8. Now connect the upper hose located just behind and above the throttle body motor to the catch can outlet (side of can)Congratulations, you have just installed a UPR Pro-Series C7 Corvette Catch Can and can be sure that you are giving your vehicle the best protection against oil vapors and contaminated crank case waste. Check out the StingrayForums and go to the UPR vendor section for the full installationwith step by step images.
NOT FOR SALE/USE IN CALIFORNIA &CARB STATES. ORDERS CANCELLED & REFUNDED
