Universal Turbo GT30 GT3037 GT3076 A/R 0.82 T3 4-Bolt Anti-Surge Compressor
All modifications must be installed by licensed mechanics and in compliance with your local modification
Turbine housing
Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃
High-Speed oil seal
High-Speed oil seal ring and Precision clearance
Compressor wheel/blades
Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
100% balancing Test
100% balancing Test by TURBOTECHNICS VSR3
Turbine housing
High-Speed oil seal
Compressor wheel/blades
100% balancing Test
Product Specifications
Universal T3 Turbocharger for 2.5L-3.0L 4/6 Cyl Engines | Up to 500BHP | Water & Oil Cooled
Universal T3 500BHP Turbo Kit Application
Perfect for all 4/ 6 cyl 2.5L-3.0L engines
Horse Power: Boost Horse Power up to Inlet (Turbo Manifold) Flange:Standard T3 Flange
Exhaust Outlet Flange:4-Bolt Flange
Wastegate: w/o Wastegate
Thrust bearing: 270 Degrees
Turbo Type: Individual
Bearing:Journal Bearing
Cooling Type: Water + Oil

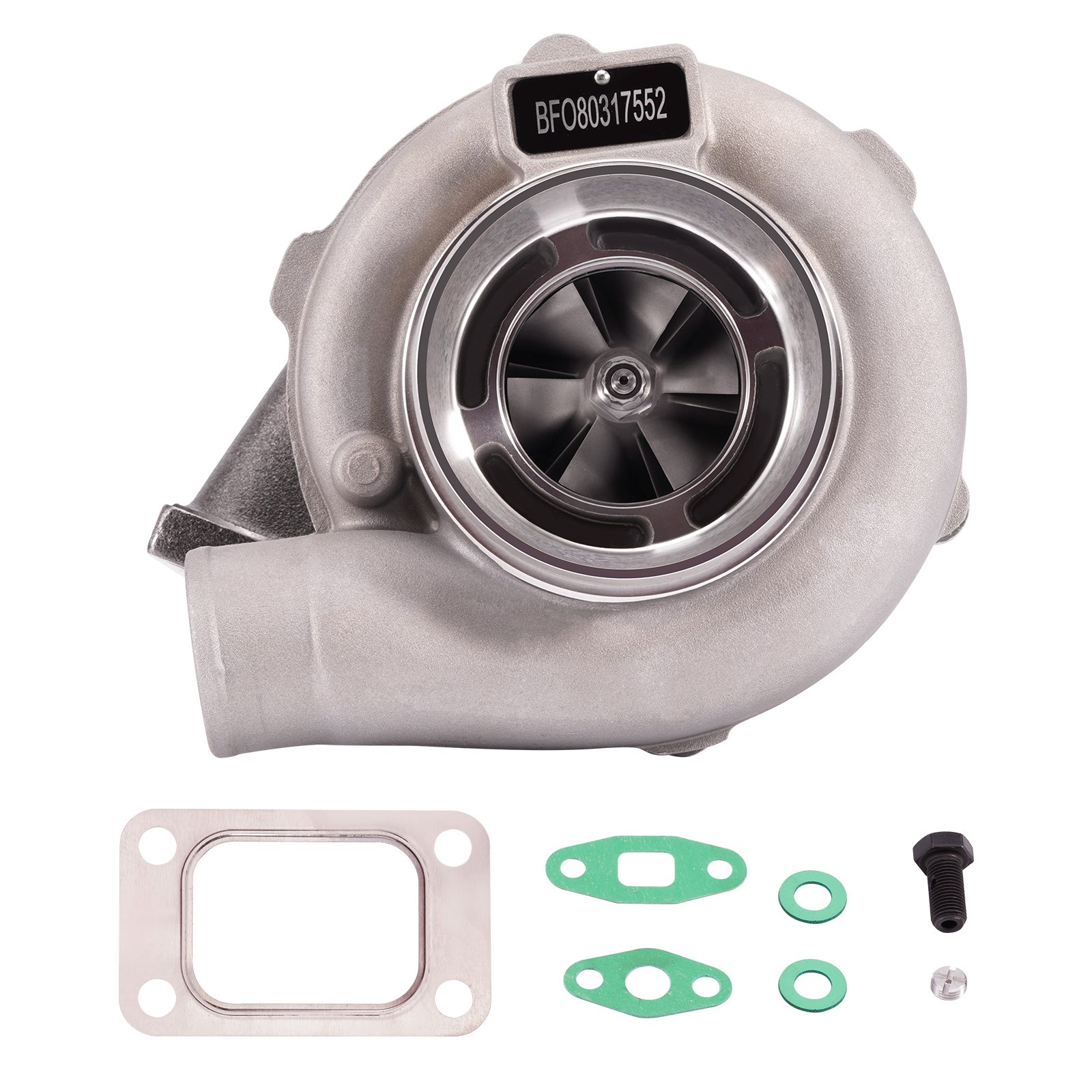

Accessories: You will get exactly as shown in the picture above
Package Size:30 x 28 x 24cm
Package Weight: 8750g
Product Dimension
Turbine
Turbine Trim: 74.2
Turbine Inducer Diameter: 64.8mm
Turbine Exducer Diameter: 55.8mm
Turbine Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter:76mm
Compressor A/R:0.6
Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Water: M18*1.5
