Viking Warrior Coilover Kit 1993-2002 Camaro Firebird F-Body VIKING PERFORMANCE WARRIOR COMPLETE FRONT + REAR 1993-2002 CAMARO / FIREBIRD COILOVER PACKAGE
PACKAGE CONFIGURATION
Front Shock: A226 Warrior Double Adjustable
Front Spring: 12DP400 - 12 in - 400 lb/in
Rear Kit: VRF211-175
Rear Shock: C211-W Warrior Double Adjustable
Rear Spring: 12DP175 - 12 in - 175 lb/in
Rear Mounting Components: 7971-110
Accessory Kit: 7995-104
Vehicle Height Range: Stock height to approximately 1.5 in lower
Adjustment: 19 compression positions + 19 rebound positions
SMALL BLOCK / LS SWAP BASELINE PACKAGE
EXACT VEHICLE FITMENT
1993-2002 Pontiac Firebird

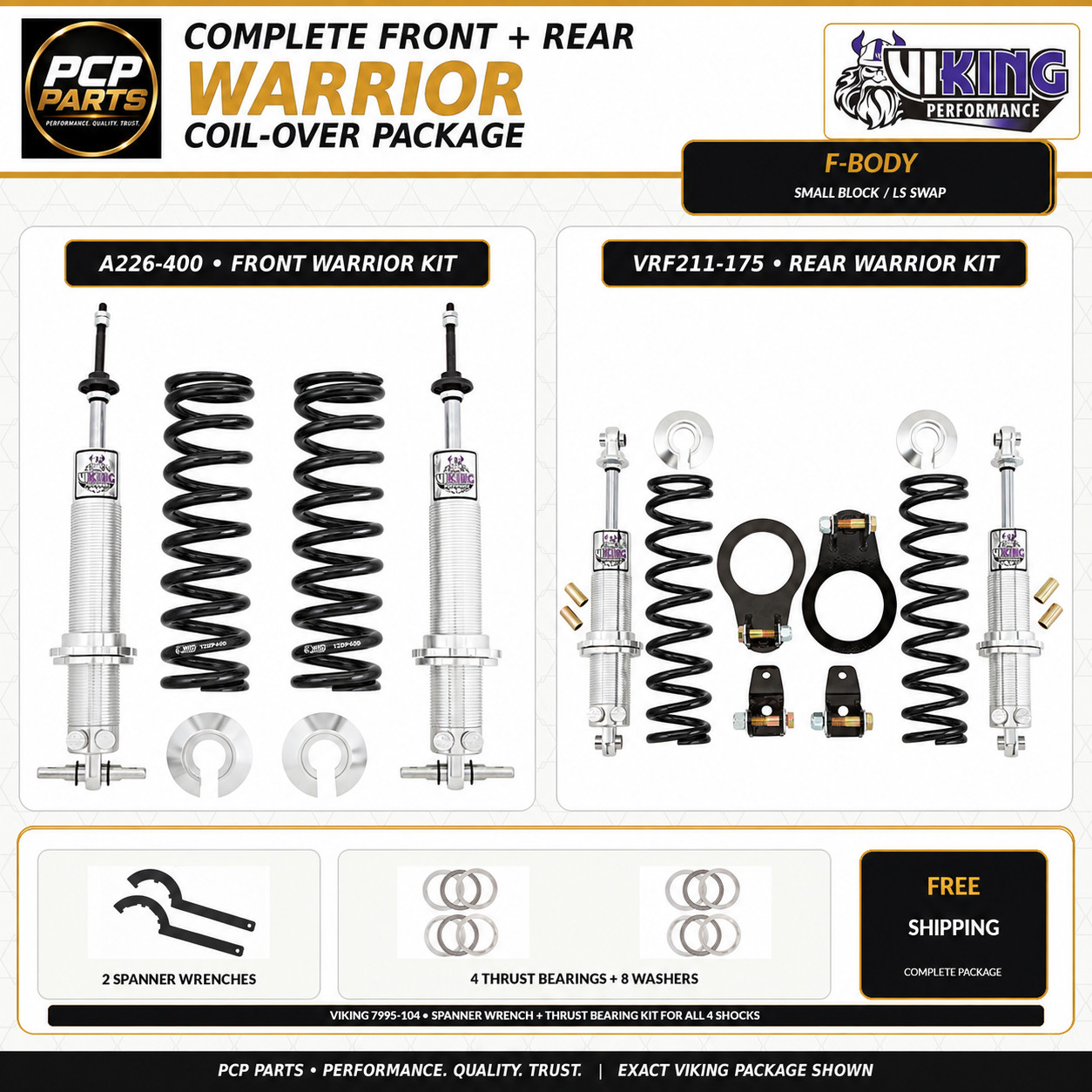

EXACTLY WHAT YOU GET
2 Viking Warrior double-adjustable front shocks
2 black 12 in / 400 lb-in front springs
Front coilover spring hardware
Required application-specific front mounting hardware
2 Viking Warrior double-adjustable C211-W rear shocks
2 black 12 in / 175 lb-in rear springs
Bolt-in rear coilover conversion brackets
Required rear mounting hardware and spacers
VIKING 7995-104 - ACCESSORY KIT FOR ALL 4 SHOCKS
4 thrust bearings
8 stainless-steel washers
One complete thrust-bearing / washer stack per shock
SHOCK + SPRING SPECS Specification Front A226-400 Rear VRF211-175 / C211-W Compressed 12.98 in 12.47 in Extended 19.73 in 19.22 in Stroke 6.75 in 6.75 in Installed Length (Ride Height) 15-5/8 in - 17 in 15-1/8 in - 16-1/2 in Spring 12DP400 - 12 in 12DP175 - 12 in Spring Rate 400 lb/in 175 lb/in Adjustment 19 Compression / 19 Rebound 19 Compression / 19 ReboundREAR BOLT-IN CONVERSION
1. Support the rear safely and remove the factory rear spring and shock.
2. Install the lower double-shear bracket at the rear axle shock-mount area.
3. Install the teardrop-shaped double-shear upper mount.
4. Install the C211-W double-rod-end coilover and verify alignment, travel and clearance.
RIDE HEIGHT + MEASUREMENT
Measure from the first washer before the upper bushing to the center of the lower T-bar / bearing.
Measure from the center of the upper eyelet to the center of the lower eyelet.
WHY WARRIOR?
19 compression positions + 19 rebound positions
361 possible compression / rebound combinations
Rebuildable shock design
Useful tuning range for street, street/strip, drag, road race and AutoX applications
FREE LIFETIME PCP PARTS TUNING + INSTALLATION SUPPORT
SHIPPING
Current handling and estimated delivery are shown in the live listing.
Tracking is uploaded to when the order ships.
Orders totaling $750 or more require signature confirmation at delivery.
