Product Description:

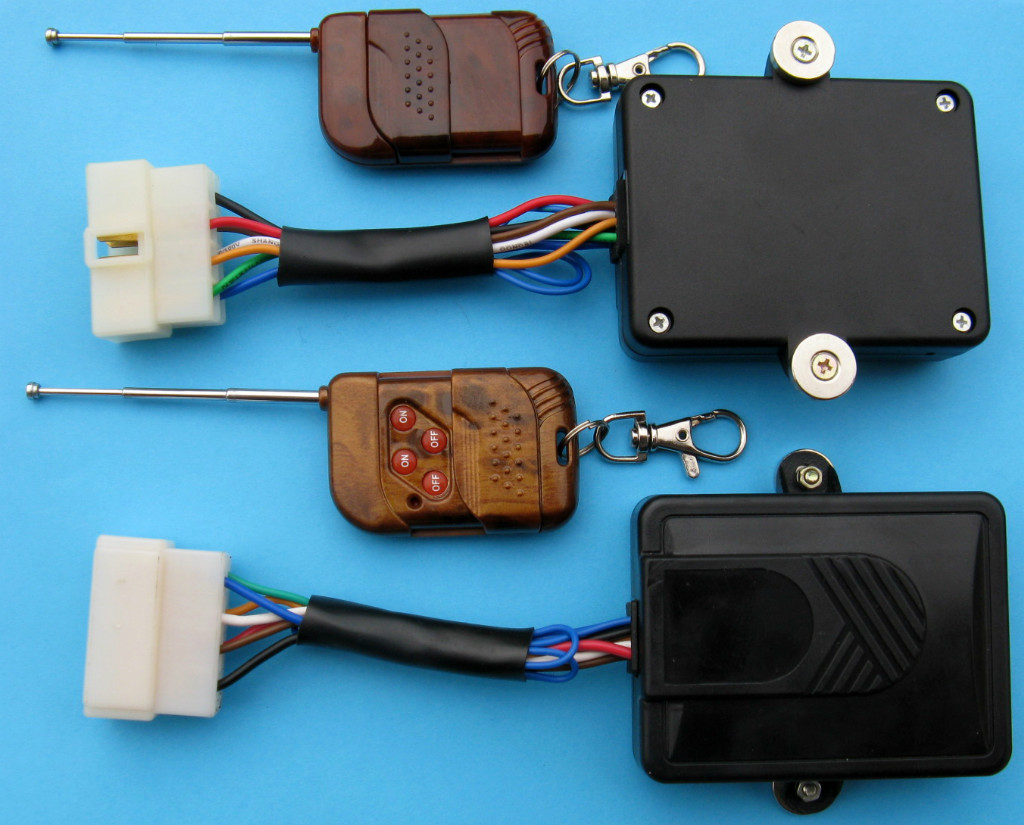

Standard 7-Wire Remote Starting Control Assembly for Any Brand Portable Diesel Generators with a Fuel Shut-off Solenoid, especially for China-Made Diesel Generators Powered by 178FE, 186FE & 186FAE Diesel Engines. A Special 8-wire remote starting control assembly(also listed in our store) with wireless remote glow plug function is also available, extra charge of $25 applies. Once our wireless remote control assembly is wired correctly, it will work independent of an ignition key switch. You can use your ignition key switch to start & stop your generator as before or pull your ignition key out of control panel board and use our remote to start & stop your generator.The transmitter of remote control assembly is insensitive to thechange of ambient weather and temperature, and can reaches optimal remote distance of 60m (197ft). The applied decoding dual-CPU has high receivingsensitivity and stability, and is inert to the interference of electromagneticfield of generator.It can be used for the replacement of any low quality 3-wire, 5-wire or 7-wire remote control assembly for portable diesel generators with a Fuel Shut-off Solenoid. All you need to do is to take about one hour to rewire it. It is easy. Please refer to the Section of Wiring Connections for your convenience. Sold Individually.
Modulation Type: Amplitude -Shift Keying (ASK)
Maximum TransmissionDistance in Open Area: 60m (197ft)
Quality Product with Prompt Shipping & Solid After Sales Support! All our orders are shipped out of Atlanta, USA and EDT is about 1 to 3 business days for delivery in most areas of continental states.
Packing Contents: 1 X 7-Wire Remote Control Assembly.
Part Number:
RCA40006800.
Wiring Connections:Industrial Grade Heavy Duty Remote Control Assembly with 2 x Magnetic Tabs, 1 x 30A
and2 x 20A Relays (Standard 7-Wire Remote)
or 3 x 20A Relays (Special 8-WireRemote with Remote Glow Plug).
Vehicle Electronic Connector DJ7081-6.3-11 for Remote1. Yellow/Green Wire (8-wire remote only, for wireless glowplug): To light blue wire of ignition key switch (6-wire ignitionkey switch only).
2. Black Wire (to grounding pole of oil sensor):To yellow wire of ignition key switch.
3. Red Wire (12V DC input directly from a battery): To whitewire of ignition key switch.
4. Brown Wire (12V DC output by default & no power output once a remote started): To greywire of ignition key switch.
5. Orange Wire (12V DC output once a remote started): To fuel pumpsolenoid.
6. White Wire (to electric contact pin of starter motorsolenoid): To red wire of ignition key switch.
7. Green Wire (12V DC signal sampling): Topositive pole of 12V DC on control panel.
8. Blue Wire (ground by default & open to ground once engine started): Toblack wire of ignition key switch.
Warning:
1) if the 12V DCoutput wire from 12V voltage stabilizer is connected to the GREY WIRE of yourignition key switch assembly (refer to \"C\" position in the following pictures for ignition key switch), you MUST move and directly connect it to theWHITE WIRE of your ignition key switch (refer to \"D\" position in the following pictures for ignition key switch, the white wire of ignition key switchis connected to a battery positive pole as received.); otherwise, you can’t quit your generatorusing our remote. The following are detailed wiring instructions on ignition key switch for your reference.
2) if the open pole of an oil sensor is wired to the black wire of ignition key switch (refer to \"B\" position in the following pictures for ignition key switch), you MUST remove it from the \"B\" position; otherwise, generator can only runs a little while and then quit. Namely, the open pole of an oil sensor can\'t be wired to an ignition key switch if our remote control unit is wired to an ignition key switch. You MUST DIRECTLY wire the positive pole of an oil sensor to a control board or relay for the control of oil sensor & fuel pump solenoid. The open pole of an oil sensor is usually pre-wired to a control board or relay for the control of oil sensor & fuel pump solenoid.
Vehicle Electronic Connector DJ7061-6.3-11 for Ignition Key Switch
- A: Yellow Wire, to the NEGATIVE POLE of an oil pressure sensor; the negative pole is directly grounded to the engine case for a single pole sensor and the top electrical contact for a two-pole sensor, respectively.
- B: Black Wire, to the POSITIVE POLE of an oil pressure sensor; the positive pole is the top electrical contact for a single pole sensor and the side electrical contact for a two-pole sensor, respectively.
- C: Gray or Green Wire, to the output of 12V voltage stabilizer for battery charging. Note: 12V voltage stabilizer is also called12V voltage regulator, 12Vbridge rectifer or 12V manostat. It is usually installed underneath a startermotor.
- D: White Wire, to the POSITIVE POLE of DC 12V battery.
- E: Red Wire, to the terminal pin of a starter motor solenoid.
- F: BLANK for standard 5-wire ignition key switch or Light Blue Wire for a special 6-wire ignition key switch with glow plug feature, to a DC 12V glow plug (preheater).
Special Note: Different color wires may be used for different brand 5-wire or 6-wire ignition key switch. However, they are ALL wired at the same order and exchangeable one another, e.g., some ignition key switches are used with the following color wires:
A: Green Wire, B: Black Wire, C: Yellow Wire, D: Red Wire, E: Brown Wire & F: Blue Wire.Shipping:
