XDP X220 Series Head Stud Kit For 2003-2010 Ford 6.0L Powerstroke Diesel For Sale - New and Used

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

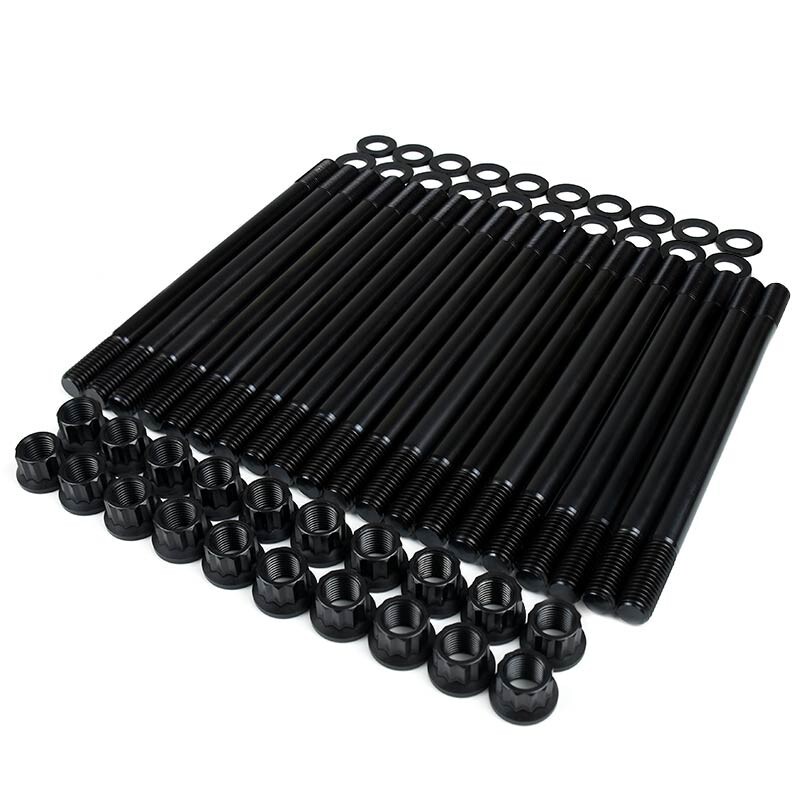

XDP X220 Series Head Stud Kit For 2003-2010 Ford 6.0L Powerstroke Diesel:
$394.95

Store response
View All Items

AirDog
Baja Designs
Diode Dynamics
Edge Products
FASS Fuel Systems
Fleece
Ford Performance
Holley
HSP Diesel
Injen
KC Turbos
Kooks
OEM Ford
PRP
Rudy\'s Performance Parts
S&S Diesel Motorsport
Strictly Diesel

XDP X220 Head Stud Kit For 2003-2010 Ford Super Duty Series / Excursion XDP X220 Head Stud Kit For 2003-2010 Ford Super Duty Series / Excursion 6.0L Item Description

Upgrade the factory head bolts in your 2003-2007 Ford 6.0L Powerstroke with the XDP X220 Series Head Stud Kit XD3001HS. With only four head bolts per cylinder, and just 10 per bank, the 6.0 engine is infamous for cylinder head gasket issues. When adding horsepower and torque to your Powerstroke, or even in stock applications as preventive maintenance, upgrading the factory head bolts is a necessity to avoid a lifted cylinder head, or a failed head gasket, due to factory bolt stretch. Each stud is constructed utilizing 8740 Chromoly Steel with an added proprietary element. The threads are then rolled after heat-treating to provide optimum fatigue strength. These heavy-duty head studs are rated at 225,000+ psi tensile strength and 205,000+ psi yield strength to ensure the cylinder heads on your engine stay locked in place under higher combustion pressures.

In addition to the upgraded strength, replacing the OEM head bolts with studs also allows you to obtain a more accurate torque reading. A conventional bolt gets twisted as it is tightened, so it\'s reacting to two different forces at the same time. With a head stud the force gets applied to the vertical axis, resulting in a more even clamping force. Another benefit of studs is they can provide for easier engine assembly and proper alignment of the cylinder heads every time. These studs are a must-have for high-performance applications and are reusable, unlike the OEM Torque-To-Yield (TTY) bolts which must be replaced after each use. These head studs are manufactured in an ISO/TS 16949 quality control facility. For a hassle-free installation, each set includes installation instructions. Assembly lubricant sold Rolled After Heat Treating

Yield Strength 205K psi - 215K psi

Tensile Strength 225K psi - 233K psi

10mm Studs Test Out At Max Load Of Over 120KN

8740 Chromoly Steel With Added Proprietary Element

Manufactured In ISO/TS 16949 Quality Control Facility

Reusable Unlike Torque-To-Yield (TTY) Bolts Which Are One Time Ford 6.0L Head Year / Unlimited Mileage Warranty

Inner Row Head Bolts, Thread Cleaning Chasers, & X-TRA Slick Engine & Fastener Assembly Lubricant (Sold Separately)

Forum postings could provide incorrect torque values. Please follow the included installation instructions for proper torque specifications and tightening sequence.
