ready to program TESTED Working 100% Battery installedred LED
One (1)

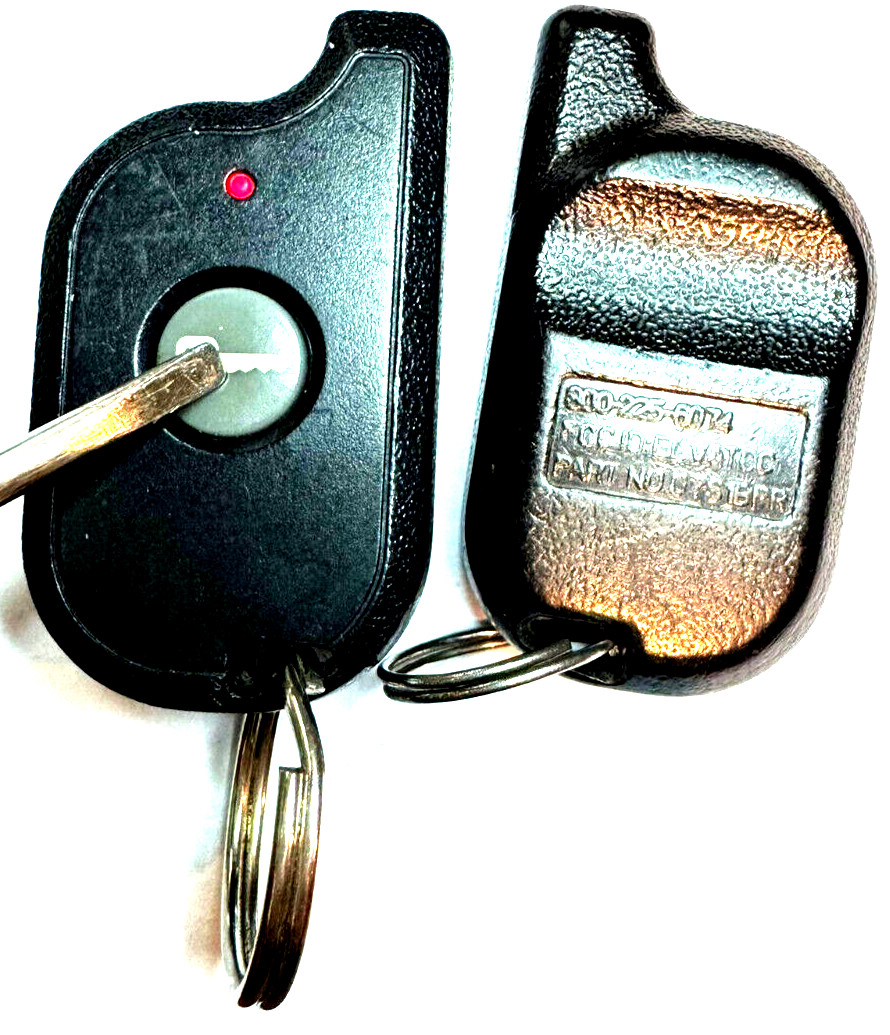

Aftermarket remote keyless entry fob alarm
Transmitter control clicker keyfob controller replacement
Functions at100% Tested & Guaranteed
Audiovox / Prestige / Pursuit / Pro
FCC ID: ELVATCC
Interchangeable FCC IDs
GOH PCMINI
ELVATCC
GOH-PCMINI-4Q
Interchangeable Part #s
07S1BP
07S1BPR
AVX-1B4S
3671A10247510
3671A10308381
Interchangeable circuit board #s:
ATCD-1
ATCN-1
ATCD
Frequency: 433 – 434 MHz
LED color: Red
1 button
Battery: (2) CR 1220
Compatible with the following systems:
APS900
APS901
APS901C
APS901N
AS9055C
AS9055T
AS9233ST
JKRS1
JKRS1T
PRO9051N
CA421
CA420A
CA420
CA440TW
CA440SS
Programming Instructions:
METHOD #1
NOTE: All applications require that tach be programmed.
The unit will not operate unless tach is programmed. If an attempt is made to start the vehicle via the remote start without first programming tach, the unit will flash the parking lights 7 times indicating tach has not been learned and stored.
If the tach rate is not properly programmed to the specific vehicle, the unit may not realize that the vehicle is running in certain instances and could re-engage the starter motor.
The Remote Car Starter will learn the tach rate of most vehicles single ignition coils, multiple coil packs, and or single injector.
TO LEARN TACH:
1. Turn the ignition key to the ON position.
2. Press and release the program push-button switch 3 times.
3. Immediately turn the ignition key OFF.
4. Hold the program push-button switch ON, then start the vehicle using the ignition key.
5. When the unit senses the tach signal, the parking lights will begin to flash.
6. Release the program push-button switch. The parking lights will turn on for 3 seconds to indicate that the tach signal is stored and the unit is now out of the program mode.
METHOD #2
- Turn the ignition to the on position.
- Press and release the programming switch 3 times.
- Press and hold, for 3 seconds, the button of the transmitter you wish to add until the parking light flashes, indicating the transmitter has been learned.
Repeat step 3 for up to a total of 4 transmitters.
Note: Do not allow more than 15 seconds to lapse between steps or the program mode will be automatically exited and you will have to start over.
100% Guarantee Remote Shipping / ReturnPolicy
Weensure proper working condition of all previously used or new remotes through aserious of tests performed with the Santronics Testing device. Each button istested for functionality prior to shipment and then logged.
Yes. It will have a workingbattery installed.
Battery Condition:
The above information can changewhich remote you need
for your installed remote keyless system.
