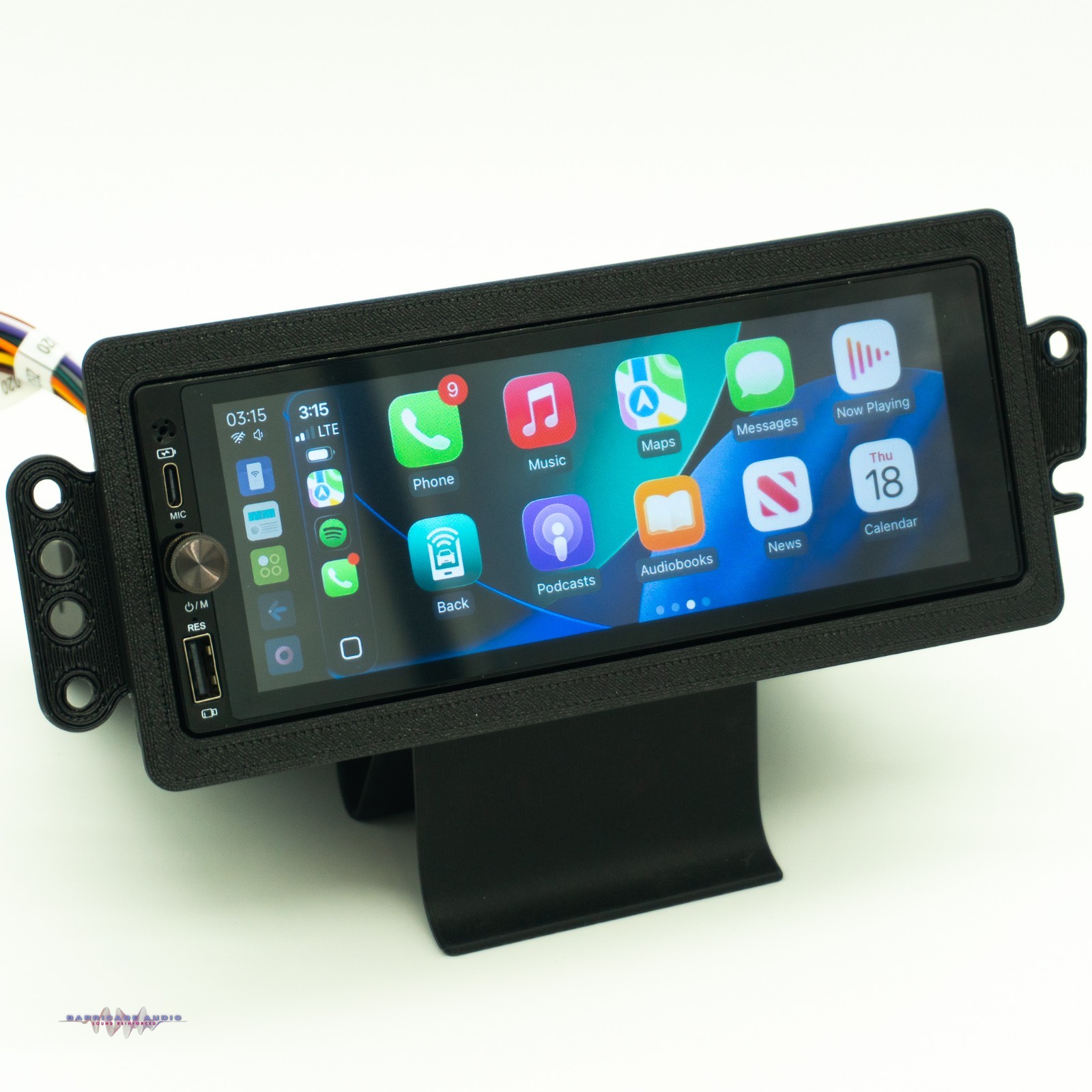

Description1996-2002 Pontiac Firebird 1.5 DIN Touchscreen Radio Kit
Firebird, Formula, Trans Am | Apple CarPlay & Android Auto
OurGen 2 1.5 DIN touchscreen radio kitis the ultimate radio upgrade for1996-2002 Pontiac Firebird. Designed specifically for thisplatform, the complete kit allows you to install a modern touchscreen head unit whileretaining the factory dash bezel, withno cutting or permanent modification required.
Unlike aftermarket dash kits that require trimming, painting, or poor fitment, our bracketclips directly into the factory dash structure, keeping your interior clean, original, and properly aligned.
Vehicle Fitment
This radio kit is compatible with the following vehicles:
- 1996 - 2002 Pontiac Firebird
- 1994 - 1999 Pontiac Bonneville
- 1996 - 2000 Pontiac Grand Am
- 1994 - 2003 Pontiac Grand Prix
- 1995 - 1999 Pontiac Sunfire
Looking for other model year F-Bodies?
Check out our1993-1995 Pontiac Firebird kitor our1997-2002 Chevy Camaro kit.
Why Choose the Barricade Audio Gen 2 Radio Kit?
- Retains thefactory dash bezelfor a clean OEM-style appearance
- No cutting or dash modificationrequired
- Bracket clips into theoriginal factory mounting location
- Installs inminutes, not hours
- Dedicated cooling fanfor improved reliability
- Physical volume knobfor easy, safe control
- Custom user interfaceexclusive to Reversion Raceworks
- Multi-part design includes all required mounting hardware
Plug-and-Play Installation
Each kit comes bundled with atouchscreen radioand aMetra 70-1858 wiring harness, making installation as straightforward as possible. Simply mount the radio, connect the radio harness to the Metra harness, and enjoy modern functionality in your classic Pontiac.
Installation Notes
- IncludesMetra 70-1858wiring harness
- Factory-amplified systems require proper amp signal connection for audio output
Please verify your vehicle’s wiring configuration before ordering.
Technical Specifications
Smartphone Integration
- Wired & wirelessApple CarPlay
- Wired & wirelessAndroid Auto
Operating System
Performance & Hardware
- 8-core CPU
- 4GB RAM
- 32GB internal storage
Display
- Screen size: 6.86\"
- Resolution: 1280 × 480
Audio
- 48W × 4 channels / 4Ω max
- RCA 2.1 channel output
- External amplifier support via RCA
Camera Support
- Front and rear camera capable
What’s Included
- Touchscreen head unit receiver
- Metal radio mounting cage
- Vehicle-specific mounting bracket
- Main power harness
- GPS antenna
- Microphone
- Antenna adapter
- RCA & amplifier harness
- Bluetooth / Wi-Fi antenna and backup camera harness
- Backup camera
- Metra wiring adapter (PN 70-1858)
Additional Information
- Adapter bracketmade in the USAusing USA-sourced materials
- Radio unit manufactured in China
- Reversion Raceworks doesnotmanufacture the radio bundled with this product
- Radio provided exclusively byBarricade Audiofor Reversion Raceworks
Need Help?
- Looking forinstallation instructions? We’ve got you covered.
- Have aGen 1 radio kitand want to upgrade?Contact us.
Frequently Asked Questions
Does this radio kit require cutting or modifying the dash?
No. This kit is designed to clip into the factory dash mounting location and allows you to retain the original dash pad. No cutting, trimming, or permanent modification is required.
What vehicles does this radio kit fit?
This kit fits 1996 - 2002 Pontiac Firebirds. It is not compatible with Camaros or Firebirds of the different model years.
Does this kit support Apple CarPlay and Android Auto?
Yes. The included touchscreen head unit supports both wired and wireless Apple CarPlay and Android Auto.
Is a wiring harness included?
Yes. The kit includes a Metra 70-1858 wiring harness for standard factory audio systems.
Will this work with a factory amplifier?
Yes, but vehicles with a factory amplifier require proper connection of the radio’s amp signal wire. Failure to connect this may result in poor or no audio output.
How difficult is installation?
Installation is straightforward and can typically be completed in minutes using basic hand tools. No specialized fabrication or dash modification is required.
Is a backup camera included?
Yes!
Where is this product made?
The vehicle-specific mounting adapter is made in the USA using USA-sourced materials. The radio unit is manufactured in China and provided exclusively by Barricade Audio for Reversion Raceworks.
I already have a Gen 1 Reversion Raceworks radio kit. Can I upgrade?
Yes. If you currently have a Gen 1 kit and are interested in upgrading to Gen 2, pleasecontact usfor available option
