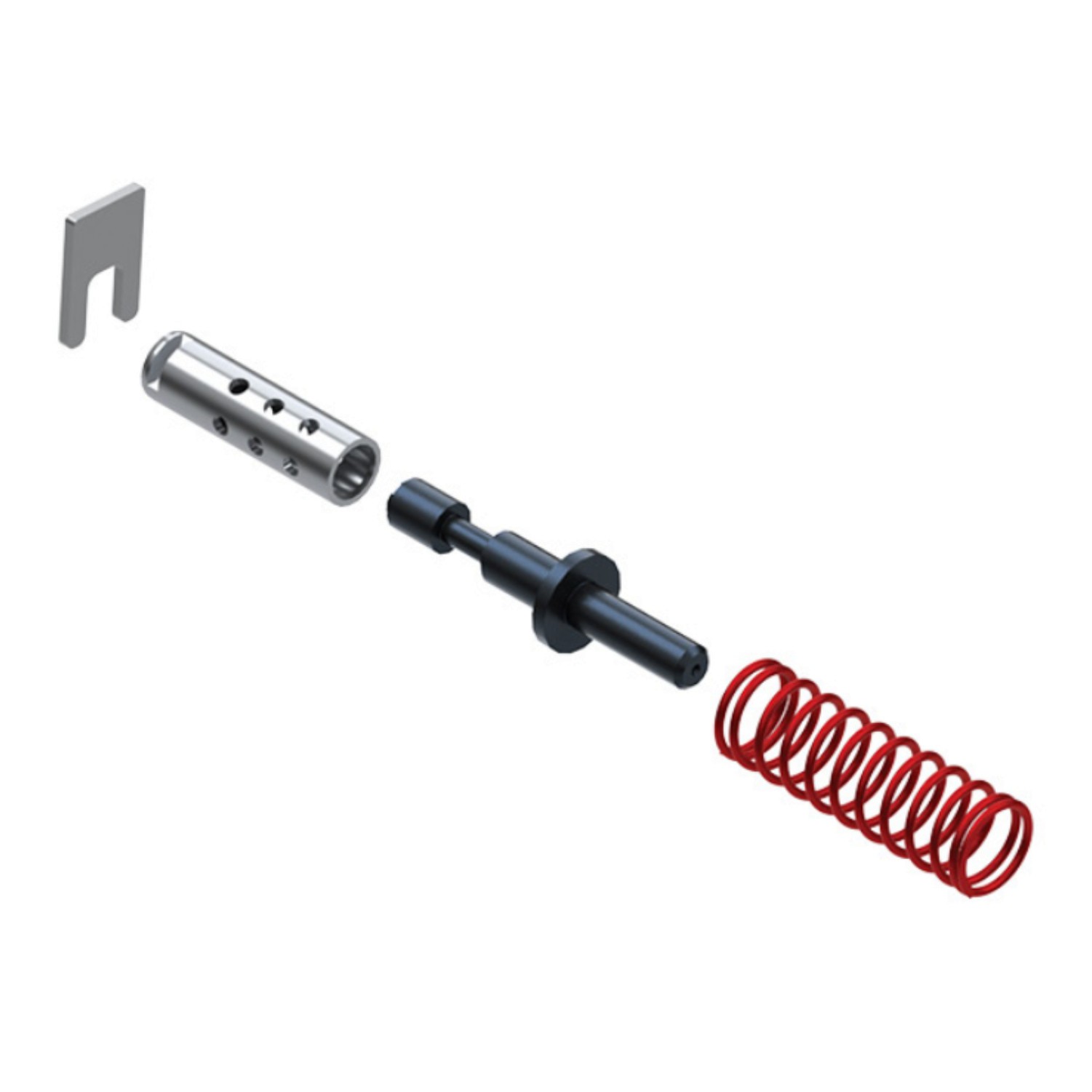

10L80-90 10L1000 Sonnax - Feed Limit Low Valve Kit (105740-54K):
$32.96

GM 10L80 - 10L90 (Gen2),10L1000Feed Limit Low Valve Kit
Part No. 105740-54KFITS 2020-on
CARS - SUV'S - PICK-UP TRUCKS10-Speed Automatic

The feed limit low valve in listed GM transmissions limits line pressure feed to the default disable solenoid and control valves. Feed limit low pressure is also connected to the boost ball system for “A” and “B” clutch control.

This feed limit low valve is subject to significant side-load force, resulting in severe wear and pressure loss to the default disable solenoid and connected control valves. This pressure loss can put the vehicle into default mode at high speeds, resulting in momentary wheel lockup, sudden downshift to 2nd Gear, harsh shifts or a P0747 code. The feed limit low valve can wear out in as little as 30,000 miles, with many vehicles requiring service by 35,000 miles.

A national recall from GM includes installing updated software that monitors valve performance and wear, then triggers a check engine light and reduced propulsion message 10,000 miles before failure. Vehicles are then limited to 5th Gear, commonly referred to as limp mode, until the valve body is serviced to address the failed valve.

Sonnax patented, drop-in feed limit low valve kit 105740-54K overcomes bore wear, restoring proper valve function immediately without the need or expense of replacing the entire valve body. The valve reroutes the balance circuit through an internal passage, significantly reducing the side-load force, while upgraded materials prevent future wear.

Overcomes drivability issues related to the GM 10-speed wheel lockup recall
Patented valve and sleeve combination overcomes bore wear and significantly reduces future side loading of the valve
Hardcoat anodized aluminum valve and wear-resistant sleeve combat premature wear
Drop-in Zip Valve™ parts install quickly and easily
NOTE: The OE feed limit low valve is susceptible to premature wear and therefore a critical failure point. Replacing the valve is recommended even if the transmission isn’t exhibiting problems and the valve passes a vacuum test.

Contents:
