SpecificationsMaterial: Polypropylene Fiber, TPU, Fluorinated Rubber, Carbon SteelProcess: Spray PaintingColor: As Shown in the PictureMounting Type: Wall-MountedAssembly Required: YesMotor Type: Pure CopperDisplay Screen Type: LCDConnection Type: Internal ThreadPower Source: Corded ElectricPlug Type: US StandardVoltage: 110V ACAMPS: 3APower: 370WMax. Pressure: 3.4 MPaMetering Accuracy: ±0.5%Repeatability: ±0.3%Single Count: 0.00-9999.9Total Cumulative Count: 0.1-999999Flow Rate: 4-40L/min/1.06-10.57 Gal/min (3-level Adjustment Via Urea Gun )Suction Lift: 3-5m/9.84-16.4ftHead: 10-20m/32.81-65.62ftInlet & Outlet Diameter: 2.54cm/1inchInlet Pipe Length: 2m/6.56ftBlack Outlet Pipe Length: 4m/13.12ft 1\" DEF Diesel Exhaust Fluid Transfer Pump Kit Electric Transfer Pump Kit 10 GPM
Application
This product is compatible with a wide range of liquids—including urea, diesel, kerosene, water, weakly alkaline/acidic solutions, and detergents—with a maximum temperature of 140℉. It’s also an ideal tool for scenarios such as fuel stations, irrigation setups, and a variety of applications.
Specifications
Material: Polypropylene Fiber, TPU, Fluorinated Rubber, Carbon Steel
Process: Spray Painting
Color: As Shown in the Picture
Mounting Type: Wall-Mounted
Assembly Required: Yes
Motor Type: Pure Copper
Display Screen Type: LCD
Connection Type: Internal Thread
Power Source: Corded Electric
Plug Type: US Standard
Voltage: 110V AC
AMPS: 3A
Power: 370W
Max. Pressure: 3.4 MPa
Metering Accuracy: ±0.5%
Repeatability: ±0.3%
Single Count: 0.00-9999.9
Total Cumulative Count: 0.1-999999
Flow Rate: 4-40L/min/1.06-10.57 Gal/min (3-level Adjustment Via Urea Gun )
Suction Lift: 3-5m/9.84-16.4ft
Head: 10-20m/32.81-65.62ft
Inlet & Outlet Diameter: 2.54cm/1inch
Inlet Pipe Length: 2m/6.56ft
Black Outlet Pipe Length: 4m/13.12ft
Suitable Working Temperature: -18~60℃/-0.4~140°F
Applicable Liquid Max. Temperature: 60℃/140℉
Installation Bracket Size: 32*22*33.5cm/12.6*8.66*13.19inch
Package Size: 40*40*40cm/15.75*15.75*15.75inch
Gross Weight: 15kg/33.07 lbs
Net Weight: 14.25kg/31.42 lbs
Package Included

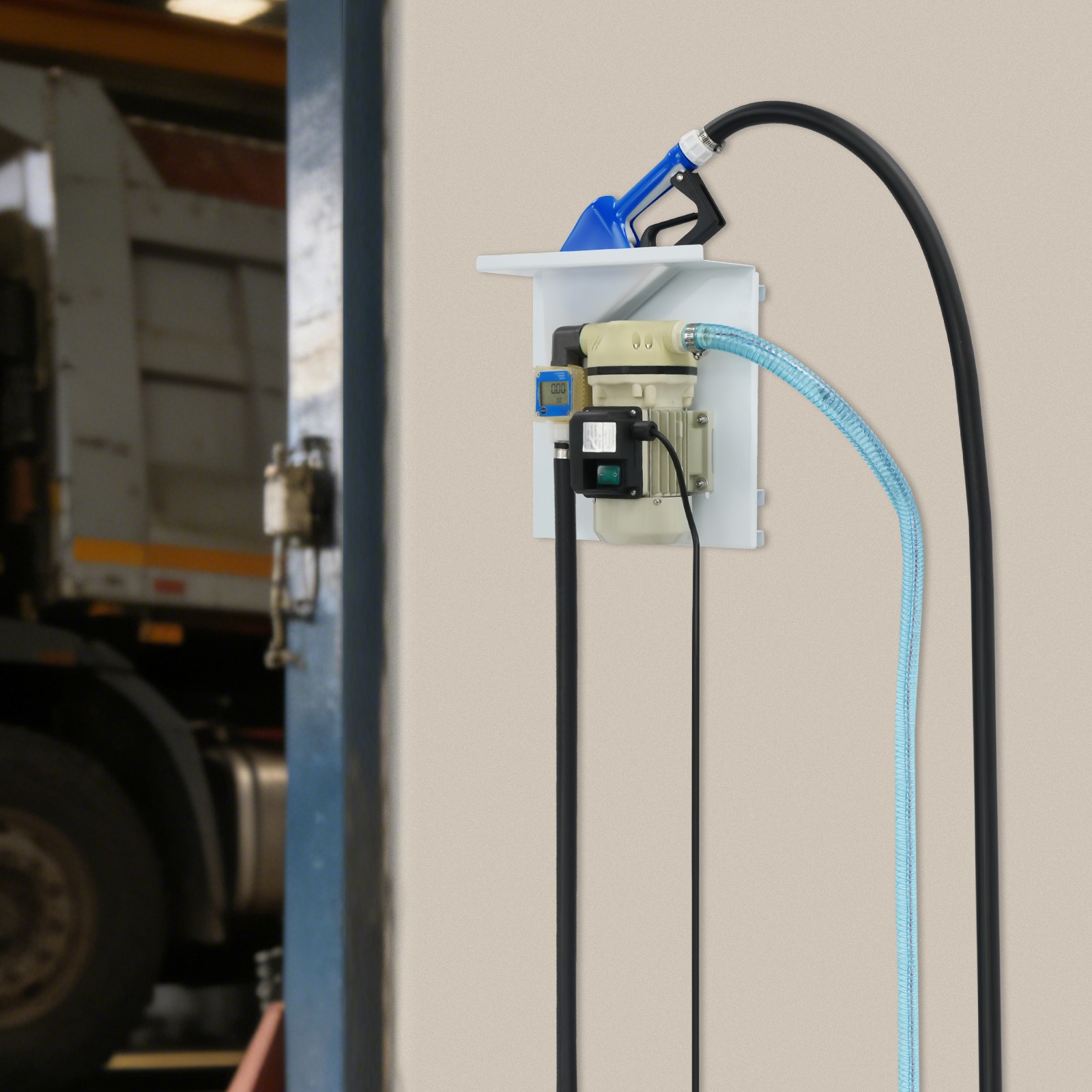

1* Transfer Pump with Installation Bracket & Flowmeter
1* Urea Gun
1* 6.56ft Inlet Pipe with IBC Tote Fitting
1* 13.12ft Black Outlet Pipe
1* English Manual
Other Accessories for Assembly
Notes
- Please carefully check if the size is suitable before placing an order.
- Please note that this product is not suitable for strong acidic and highly corrosive liquids.
- Please read the manual completely before use and pay particular attention to the safety instructions included.
- Please allow for slight color differences caused by the shooting light and a 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
